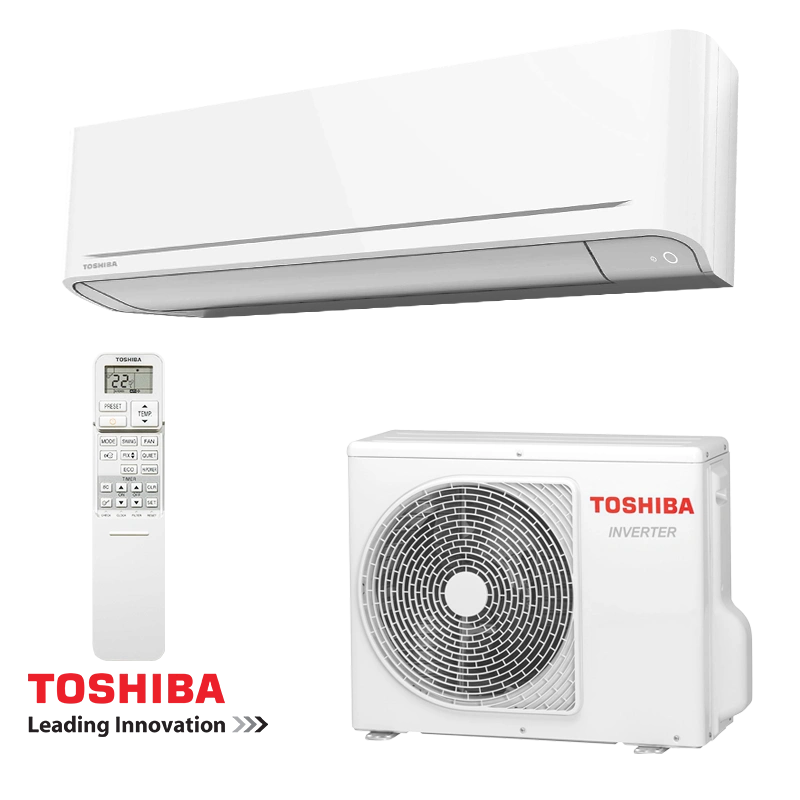

Inverter Air conditioner Toshiba Yukai+ RAS-B10S4KVG-E + RAS-10E2AVG-E

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  0.8 / 2.5 / 3.0 kW

• Heating capacity (Min./Nom./Max):

  0.95 / 3.2 / 3.9 kW

• Consumption power - cooling (Min./Nom./Max):

  0.2 / 0.7 / 1.0 kW

• Consumption power - heating (Min./Nom./Max):

  0.18 / 0.86 / 1.11 kW

• Capacity (BTU):

  10 000 BTU

• Nominal efficiency EER cooling:

  3.57

• Seasonal efficiency SEER cooling:

  7

• COP:

  3.72

• SCOP:

  4.6

• Annual energy consumption (Cooling/Heating):

  125 / 730 kWh

• Energy label (Cooling / Heating) - Average climate:

  A++ / A++

• Operation Range (Cooling):

  -15 ~ 46 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  20 square meters

• Warranty:

  60 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  288 x 770 x 225 H x W x L (mm)

• Weight:

  9 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  39 / - / 19 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  39 / - / 20 / - dB (A)

• Outdoor unit
• Dimensions:

  530 x 660 x 240 H x W x L (mm)

• Weight:

  22 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  47 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  49 / - / - / - dB (A)

• Shipping package - TOSHIBA RAS-B10S4KVG-E YUKAI PLUS ВЪТР.ТЯЛО
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  30 x 79 x 25; Weight: 11 kg.;

• Shipping package - TOSHIBA RAS-10E2AVG-E YUKAI PLUS ВЪНШ.ТЯЛО
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  55 x 68 x 26; Weight: 26 kg.;
