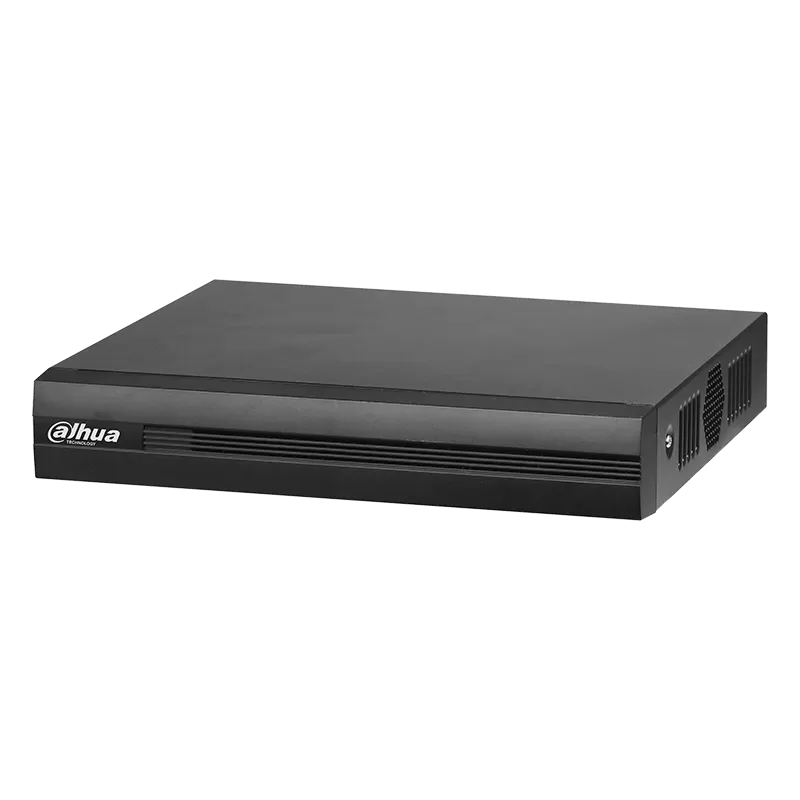

Dahua XVR1B16-I 16 Channel WizSense Digital Video Recorder

Technical information

• General
• Series:

  WizSense

• Main Processor:

  Embedded Processor

• Operating System:

  Embedded LINUX

• Analog Camera Input:

  16 Channel, BNC

• IP Camera Input:

  2+16 channels

• HDCVI Camera:

  1080P@25/30fps, 720P@25/30fps

• AHD Camera:

  1080P@25/30, 720P@25/30fps

• TVI Camera:

  1080P@25/30, 720P@25/30fps

• CVBS Camera:

  PAL/NTSC

• Max rezolution of the cameras:

  2 MP

• Storage:

  1 SATA Port, up to 16TB capacity

• Camera
• Lens
• Video
• Record Rate:

  Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF(1 fps–25/30 fps) Sub stream: CIF (1 fps–7 fps)

• Video Compression:

  AI Coding; H.265+; H.265; H.264+; H.264

• Bandwidth:

  64 Mbps incoming bandwidth

• Bit Rate:

  32 kbps–6144 kbps

• Record Mode:

  General, motion detection, alarm

• Playback:

  1/4/9/16

• Playback Function:

  Instant playback, general playback, event playback, tag playback

• Backup Mode:

  USB Device/Network

• Perimeter Protection
• AI Functions:

  SMD Plus (detection of vehicle/human)

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• SMD Plus Performance:

  8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

• Alarm Prompt:

  Motion detection, video loss, tampering

• Certification
• Certifications:

  FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024

• Third-party Support:

  ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

• Port
• Audio Input:

  1-channel RCA, 16-channel BNC (Coaxial Audio)

• Audio Output:

  1-channel (RCA port)

• Video Port:

  1 х HDMI, 1 x VGA

• USB:

  2 USB 2.0

• Resolution:

  HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

• Multi-screen Display:

  1/4/8/9/16

• Two-way Talk:

  Yes

• Audio Compression:

  G.711A, G.711U, PCM

• Audio Sample Rate:

  8KHz, 16 bit Per Channel

• Audio Bit Rate:

  64 Кbps Per Channel

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

• Interoperability:

  ONVIF 21.06; CGI Conformant

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Power
• Power Supply:

  DC 12V/2A

• Power Consumption:

  < 10W

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  0–90% RH

• Construction
• Dimensions:

  260.0 mm × 231.4 mm × 47.6 mm

• Net Weight:

  0.89 kg

• Gross Weight:

  1.42 kg

• Shipping package - DAHUA XVR1B16-I
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  8.9 x 31.5 x 33.3; Weight: 1.42 kg.;
