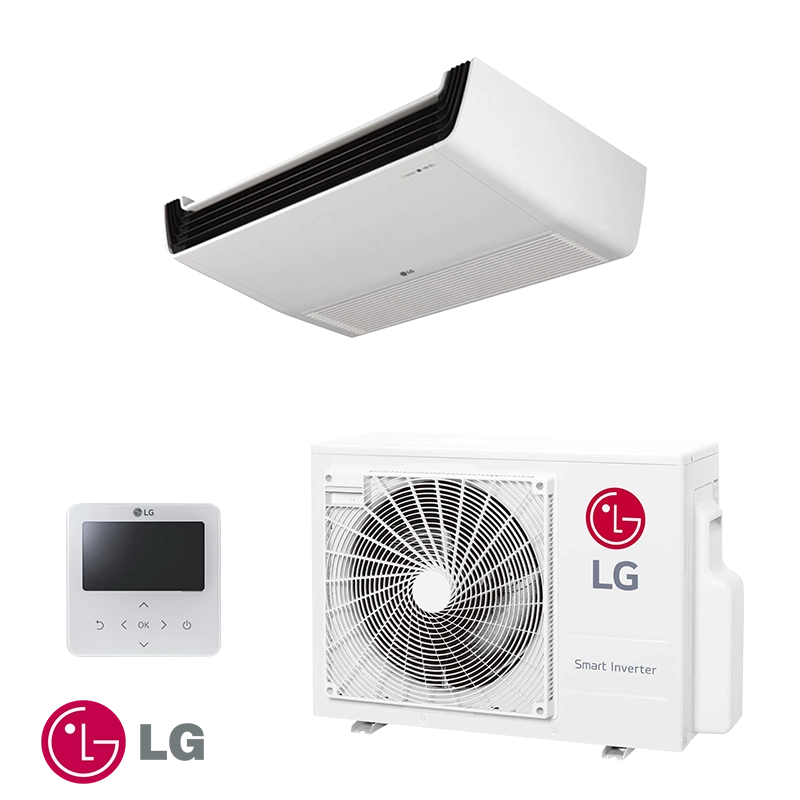

Ceiling Air conditioner LG UV18F.N10 + UUB1.U20

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  2.0 / 5.0 / 5.8 kW

• Heating capacity (Min./Nom./Max):

  2.3 / 5.8 / 6.7 kW

• Consumption power - cooling (Min./Nom./Max):

  0.30 / 1.33 / 1.86 kW

• Consumption power - heating (Min./Nom./Max):

  0.40 / 1.76 / 2.46 kW

• Capacity (BTU):

  18 000 BTU

• Nominal efficiency EER cooling:

  3.75

• Seasonal efficiency SEER cooling:

  6.6

• COP:

  3.29

• SCOP:

  4.3

• Annual energy consumption (Cooling/Heating):

  265 / 1368 kWh

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -15 - 50 °C

• Operation Range (Heating):

  -20 ~ 18 °C

• Suitable for rooms up to:

  36 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  235 x 1200 x 690 H x W x L (mm)

• Weight:

  27.3 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  42 / 40 / 39 / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  42 / 40 / 39 / - dB

• Outdoor unit
• Compressor type:

  Twin Rotary

• Dimensions:

  650 x 870 x 330 H x W x L (mm)

• Weight:

  44.5 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 12.7 mm (1/4" / 1/2") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 47 / - / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 52 / - / - dB
