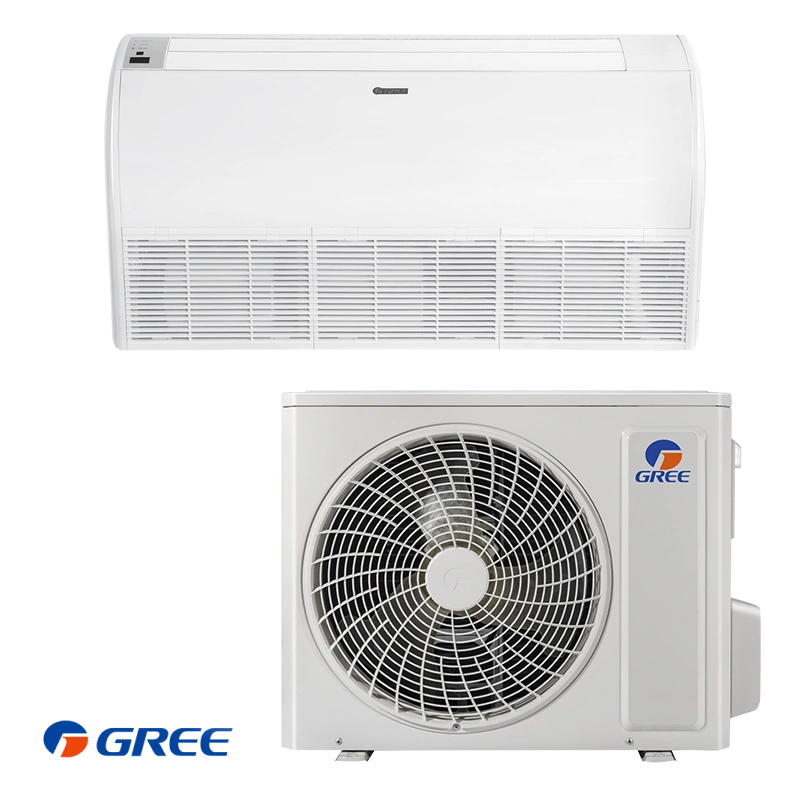

Ceiling Air conditioner Gree GUD100ZD1 + GUD100W1/NhA-S

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  - / 10 / - kW

• Heating capacity (Min./Nom./Max):

  - / 11.5 / - kW

• Consumption power - cooling (Min./Nom./Max):

  - / 4.3 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 4.2 / - kW

• Capacity (BTU):

  36 000 BTU

• Nominal efficiency EER cooling:

  3.12

• Seasonal efficiency SEER cooling:

  6.3

• COP:

  3.69

• SCOP:

  4

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -20 ~ 48 °C

• Operation Range (Heating):

  -20 ~ 24 °C

• Suitable for rooms up to:

  62 square meters

• Warranty:

  24 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  235 x 1200 x 665 H x W x L (mm)

• Weight:

  32 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  48 / 46 / 45 / 43 dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  48 / 46 / 45 / 43 dB (A)

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  820 x 940 x 370 H x W x L (mm)

• Weight:

  65 kg

• Refrigerant piping - Liquid / Gas:

  9.52 / 15.9 mm (3/8" / 5/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 57 / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 57 / - / - dB (A)

• Shipping package - GREE GUD100ZD1
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  30 x 130 x 77; Weight: 37 kg.;

• Shipping package - GREE GUD100W1/NhA-S OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  88.5 x 109 x 50; Weight: 72 kg.;
