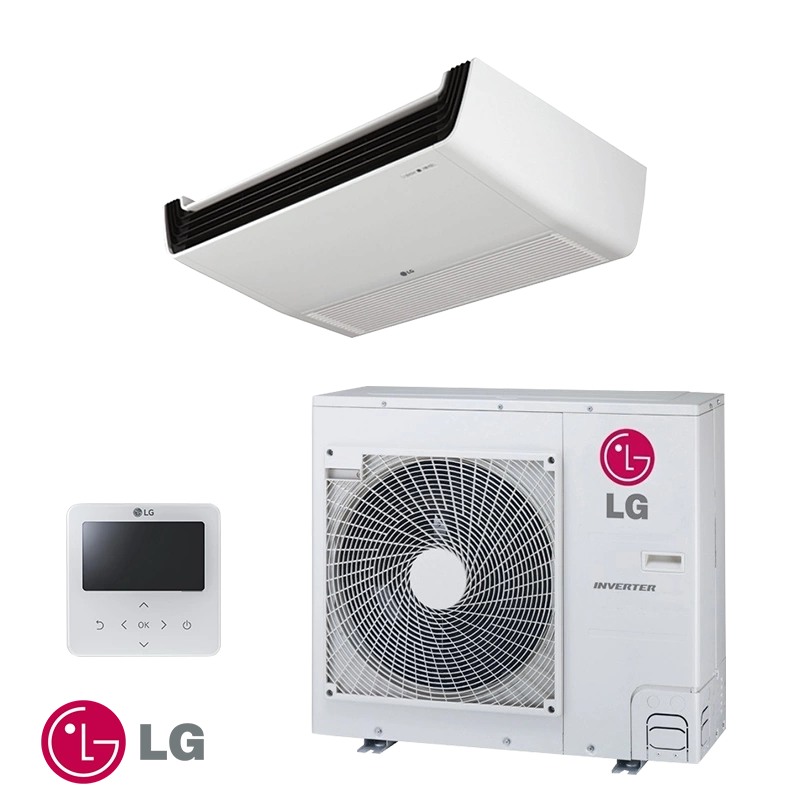

Ceiling Air conditioner LG UV30F.N10 + UUC1.U40

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  3.1 / 7.7 / 8.8 kW

• Heating capacity (Min./Nom./Max):

  3.4 / 8.6 / 9.6 kW

• Consumption power - cooling (Min./Nom./Max):

  0.50 / 2.25 / 3.08 kW

• Consumption power - heating (Min./Nom./Max):

  0.50 / 2.5 / 3.20 kW

• Capacity (BTU):

  30 000 BTU

• Nominal efficiency EER cooling:

  3.42

• Seasonal efficiency SEER cooling:

  6.8

• COP:

  3.44

• SCOP:

  4.4

• Annual energy consumption (Cooling/Heating):

  396 / 1718 kWh

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -20 ~ 50 °C

• Operation Range (Heating):

  -20 ~ 18 °C

• Suitable for rooms up to:

  53 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  235 x 1200 x 690 H x W x L (mm)

• Weight:

  28 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  46 / 44 / 43 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  46 / 44 / 43 / - dB (A)

• Outdoor unit
• Compressor type:

  Twin Rotary

• Dimensions:

  834 x 950 x 330 H x W x L (mm)

• Weight:

  57.7 kg

• Refrigerant piping - Liquid / Gas:

  9.52 / 15.9 mm (3/8" / 5/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 50 / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 52 / - / - dB (A)

• Shipping package - LG UV30F N10 CEILING INDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  26 x 123 x 73; Weight: 31 kg.;

• Shipping package - LG UUC1 U40 OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  86 x 98 x 35; Weight: 64 kg.;
