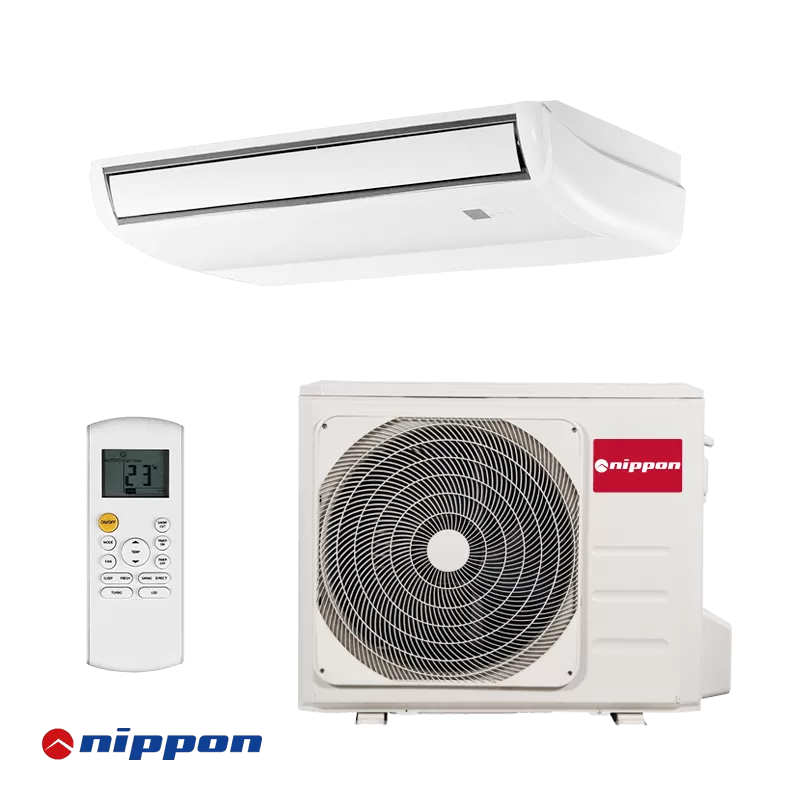

Inverter Air conditioner Nippon NUE-24HRFNX-Q + NOCA30U-24HFN8-Q - ceiling-floor

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  3.22 / 7.03 / 8.29 kW

• Heating capacity (Min./Nom./Max):

  2.72 / 7.62 / 8.65 kW

• Consumption power - cooling (Min./Nom./Max):

  0.48 / 2.19 / 2.93 kW

• Consumption power - heating (Min./Nom./Max):

  0.5 / 2.05 / 2.85 kW

• Capacity (BTU):

  24 000 BTU

• Seasonal efficiency SEER cooling:

  6.1

• SCOP:

  4

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -15 ~ 50 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  47 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  235 x 1068 x 675 H x W x L (mm)

• Weight:

  27 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  50 / 46 / 41 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  50 / 46 / 41 / - dB (A)

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  702 x 845 x 363 H x W x L (mm)

• Weight:

  49 kg

• Refrigerant piping - Liquid / Gas:

  9.52 / 15.9 mm (3/8" / 5/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  62 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  62 / - / - / - dB (A)

• Shipping package - NIPPON NOCA30U-24HFN8-Q PRO OU
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  76 x 40 x 97; Weight: 52.8 kg.;
