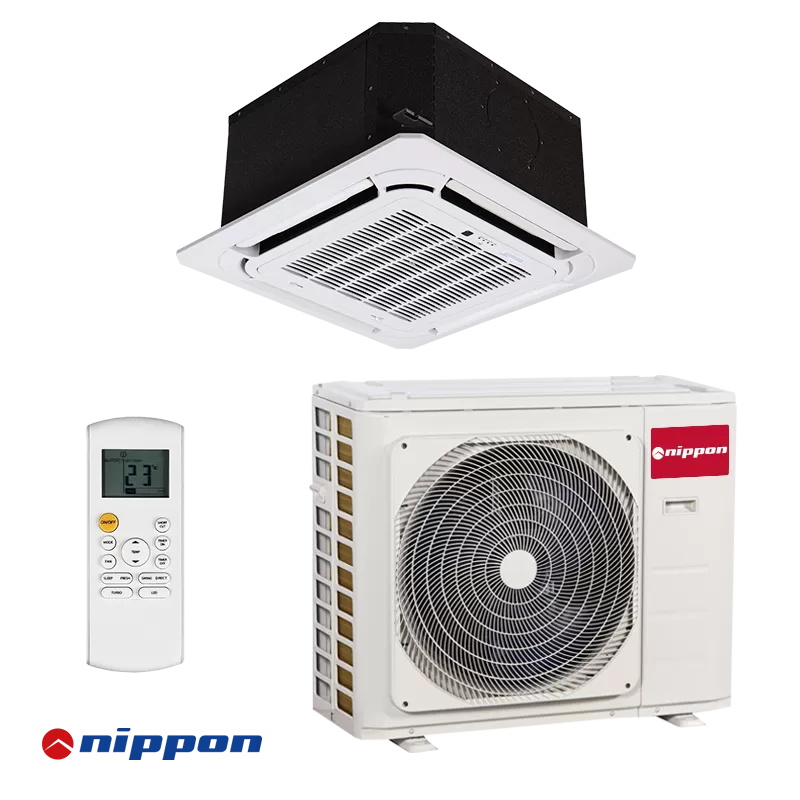

Cassette Air conditioner Nippon NCD-36HRFNX-Q + NOD30U-36HFN8-Q

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  4.04 / 10.55 / 12.02 kW

• Heating capacity (Min./Nom./Max):

  2.94 / 11.14 / 13.48 kW

• Consumption power - cooling (Min./Nom./Max):

  0.89 / 3.75 / 4.5 kW

• Consumption power - heating (Min./Nom./Max):

  0.72 / 2.99 / 4.45 kW

• Capacity (BTU):

  36 000 BTU

• Seasonal efficiency SEER cooling:

  6.1

• SCOP:

  4

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -15 ~ 50 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  70 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  900 x 900 x 265 H x W x L (mm)

• Weight:

  28 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  51 / 49 / 46 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  51 / 49 / 46 / - dB (A)

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  810 x 946 x 410 H x W x L (mm)

• Weight:

  67 kg

• Refrigerant piping - Liquid / Gas:

  9.52 / 15.9 mm (3/8" / 5/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  65 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  65 / - / - / - dB (A)

• Shipping package - NIPPON NCD-90P-Q PANNEL NCD 24-60
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9 x 104 x 104; Weight: 8 kg.;

• Shipping package - NIPPON NOD30U-36HFN8-Q PROF OU
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  89 x 50 x 109; Weight: 73.4 kg.;
