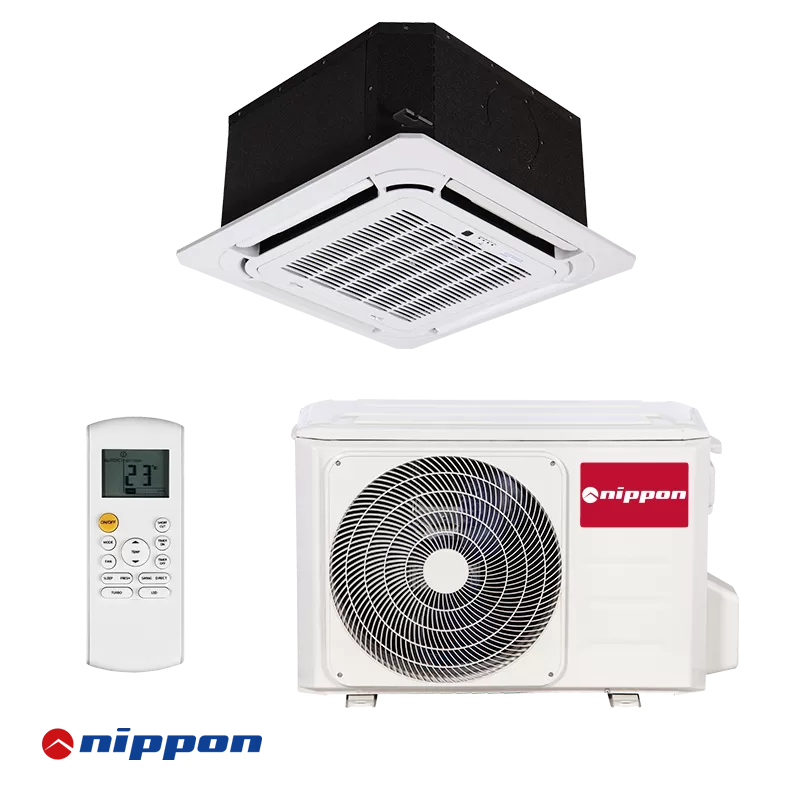

Cassette Air conditioner Nippon NCA3U-18NRFNX-Q + NOB30U-18HFN8-Q

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  2.9 / 5.28 / 5.74 kW

• Heating capacity (Min./Nom./Max):

  2.37 / 5.42 / 6.10 kW

• Consumption power - cooling (Min./Nom./Max):

  0.72 / 1.63 / 1.86 kW

• Consumption power - heating (Min./Nom./Max):

  0.7 / 1.46 / 1.93 kW

• Capacity (BTU):

  18 000 BTU

• Seasonal efficiency SEER cooling:

  6.1

• SCOP:

  4

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -15 ~ 50 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  33 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  570 x 570 x 260 H x W x L (mm)

• Weight:

  16 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  43 / 39 / 36 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  43 / 39 / 36 / - dB (A)

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  554 x 800 x 333 H x W x L (mm)

• Weight:

  34 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 12.7 mm (1/4" / 1/2") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  55 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  55 / - / - / - dB (A)

• Shipping package - NIPPON NC3U-60P-Q PANNEL NCA3U 12-18
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  12 x 72 x 72; Weight: 4.5 kg.;

• Shipping package - NIPPON NOB30U-18HFN8-Q PROF OU
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  63 x 39 x 92; Weight: 38.5 kg.;
