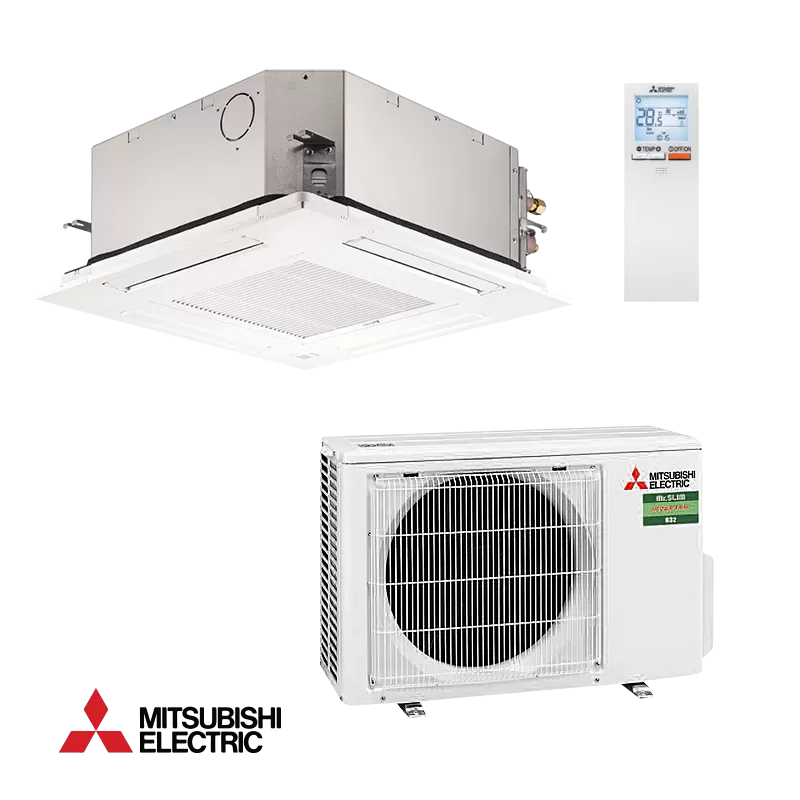

Cassette Air conditioner Mitsubishi Electric SLZ-M25FA + SUZ-M25VA

Documents

Comments

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  1.5 / 2.6 / 3.2 kW

• Heating capacity (Min./Nom./Max):

  1.3 / 3.2 / 4.2 kW

• Consumption power - cooling (Min./Nom./Max):

  - / 0.68 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 0.89 / - kW

• Capacity (BTU):

  9000 BTU

• Seasonal efficiency SEER cooling:

  6.3

• SCOP:

  4.3

• Annual energy consumption (Cooling/Heating):

  144 / 716 kWh

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -10 ~ 46 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  20 square meters

• Warranty:

  36 months

• Refrigerant:

  R-410A

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  245 x 570 x 570 H x W x L (mm)

• Weight:

  15 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  31 / 28 / 25 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  31 / 28 / 25 / - dB (A)

• Outdoor unit
• Compressor type:

  Mitsubishi

• Dimensions:

  550 x 800 x 285 H x W x L (mm)

• Weight:

  30 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  47 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  48 / - / - / - dB (A)

• Shipping package - MITSUBISHI SLZ-M25FA CASSETTE
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  30 x 60 x 60; Weight: 18 kg.;

• Shipping package - MITSUBISHI SUZ-M25VA
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  60 x 82 x 30; Weight: 35 kg.;
