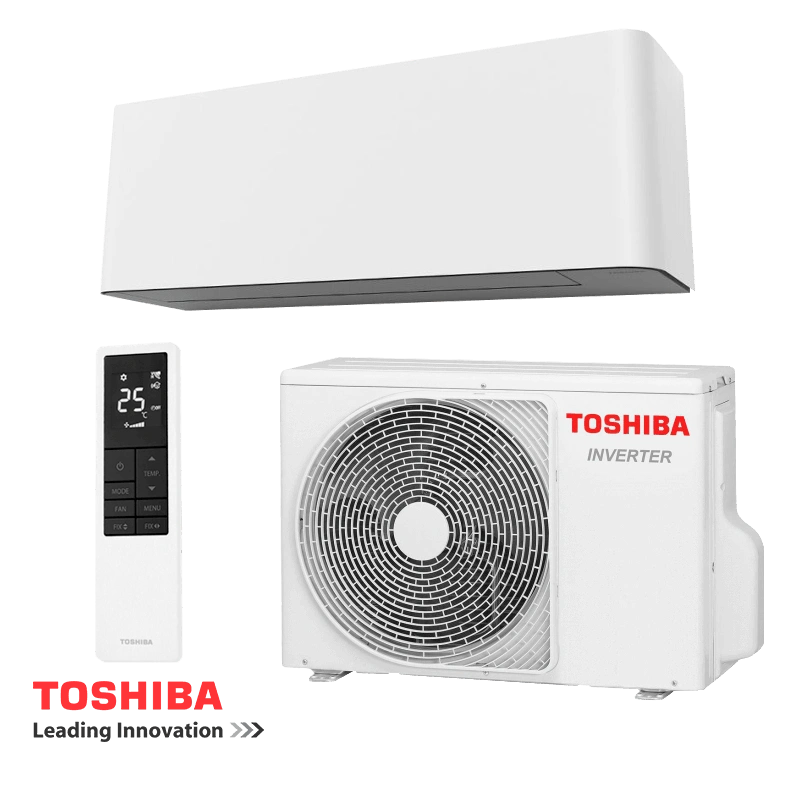

Inverter Air conditioner Toshiba Shorai Curve RAS-B13P2KVSG-E / RAS-13P2AVSG-E

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  1.0 / 3.5 / 4.1 kW

• Heating capacity (Min./Nom./Max):

  1.0 / 4.2 / 5.3 kW

• Consumption power - cooling (Min./Nom./Max):

  0.25 / 0.86 / 1.12 kW

• Consumption power - heating (Min./Nom./Max):

  0.20 / 1.08 / 1.55 kW

• Capacity (BTU):

  13 000 BTU

• Nominal efficiency EER cooling:

  4.07

• Seasonal efficiency SEER cooling:

  8.6

• COP:

  3.89

• SCOP:

  5.1

• Annual energy consumption (Cooling/Heating):

  142 / 878 kWh

• Energy label (Cooling / Heating) - Average climate:

  A+++ / A+++

• Operation Range (Cooling):

  -15 ~ 46 °C

• Operation Range (Heating):

  -20 ~ 24 °C

• Suitable for rooms up to:

  22 square meters

• Warranty:

  60 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  293 x 822 x 226 H x W x L (mm)

• Weight:

  11 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  43 / - / - / 19 dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  43 / - / - / 19 dB (A)

• Outdoor unit
• Compressor type:

  DC Rotary

• Dimensions:

  550 x 780 x 290 H x W x L (mm)

• Weight:

  31 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  47 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  49 / - / - / - dB (A)

• Shipping package - TOSHIBA RAS-B13P2KVSG-E NEW SHORAI- IND
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  32 x 86 x 25; Weight: 13 kg.;

• Shipping package - TOSHIBA RAS-13P2AVSG-E NEW SHORAI OUT
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  58 x 82 x 33; Weight: 35 kg.;
