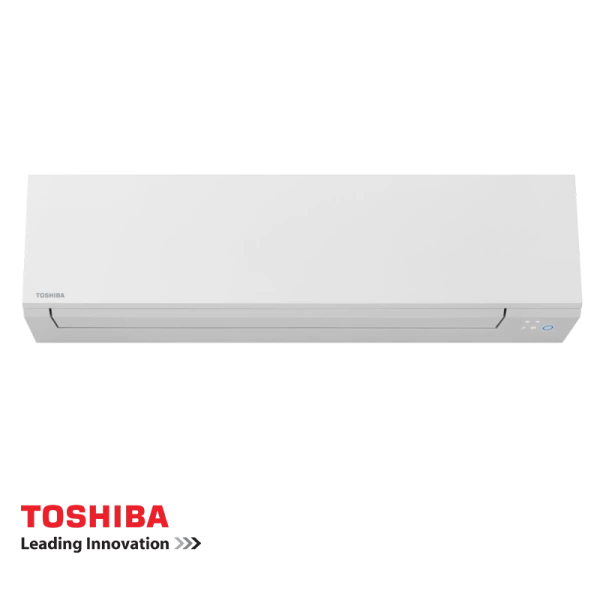

Inverter Air conditioner Toshiba Shorai Edge RAS-B16G3KVSG-E + RAS-16J2AVSG-E1

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  1.2 / 4.6 / 5.3 kW

• Heating capacity (Min./Nom./Max):

  1.1 / 5.5 / 6.5 kW

• Consumption power - cooling (Min./Nom./Max):

  0.34 / 1.35 / 1.72 kW

• Consumption power - heating (Min./Nom./Max):

  0.24 / 1.52 / 1.9 kW

• Capacity (BTU):

  16 000 BTU

• Nominal efficiency EER cooling:

  3.41

• Seasonal efficiency SEER cooling:

  7.8

• COP:

  3.62

• SCOP:

  4.6

• Annual energy consumption (Cooling/Heating):

  206 / 1217 kWh

• Energy label (Cooling / Heating) - Average climate:

  A++ / A++

• Operation Range (Cooling):

  -15 ~ 46 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  34 square meters

• Warranty:

  60 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  293 x 800 x 226 H x W x L (mm)

• Weight:

  10 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  44 / - / 25 / 21 dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  44 / - / 26 / 22 dB (A)

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  550 x 780 x 290 H x W x L (mm)

• Weight:

  33 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 12.7 mm (1/4" / 1/2") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  48 / 47 / - / 40 dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  50 / 49 / - / 43 dB (A)

• Shipping package - TOSHIBA RAS-B16G3KVSG EDGE INDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  31 x 82 x 25; Weight: 12 kg.;

• Shipping package - TOSHIBA SHORAI EDGE RAS-16J2AVSG-E OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  58 x 80 x 32; Weight: 37 kg.;
