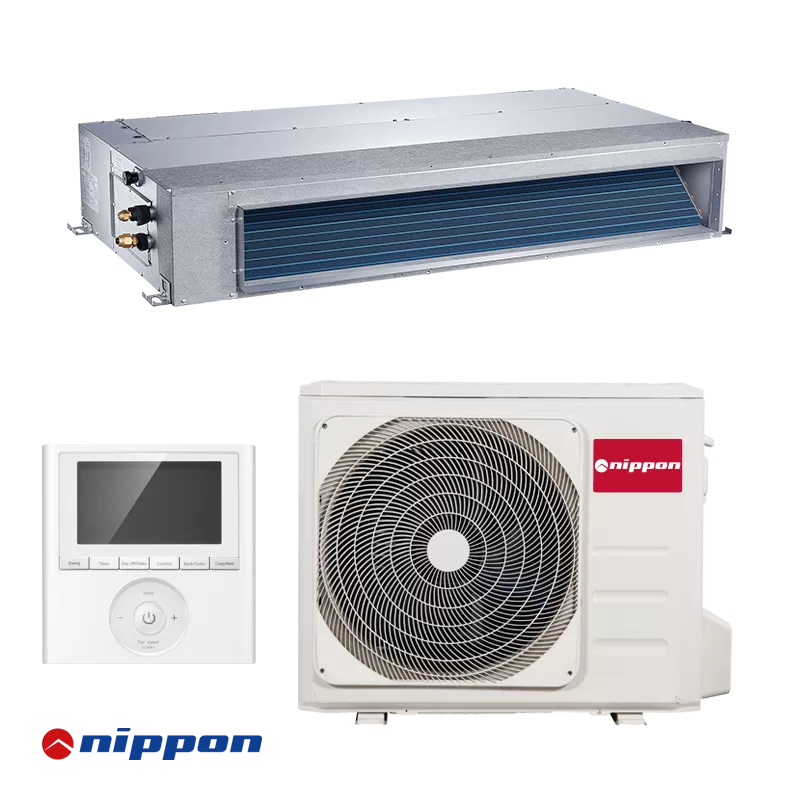

Duct Air conditioner Nippon NTI-24HWFNX-Q + NOCA30U-24HFN8-Q
- Code: 2540259
- Out of Stock
- Weight: 91.70 kg
The Nippon NTI-24HWFNX-Q / NOCA30U-24HFN8-Q inverter duct air conditioner is suitable for rooms up to 47 sq.m. This type of air conditioners are practical solutions when the air has to be transported over long distances. Compact indoor units with a small height of up to 250 mm can be installed in low ceilings. All models in the series have a high energy class A++ for cooling, A+ for heating and a 24-month warranty.
1314.01 €
Documents
Comments
Technical information
-
Basic
-
Cooling capacity (Min./Nom./Max):
3.28 / 7.03 / 8.16 kW
-
Heating capacity (Min./Nom./Max):
2.72 / 7.62 / 8.72 kW
-
Consumption power - cooling (Min./Nom./Max):
0.48 / 2.19 / 2.85 kW
-
Consumption power - heating (Min./Nom./Max):
0.5 / 2.05 / 2.88 kW
-
Capacity (BTU):
24 000 BTU
-
Seasonal efficiency SEER cooling:
6.1
-
SCOP:
4
-
Energy label (Cooling / Heating) - Average climate:
A++ / A+
-
Operation Range (Cooling):
-15 ~ 46 °C
-
Operation Range (Heating):
-15 ~ 24 °C
-
Suitable for rooms up to:
47 square meters
-
Warranty:
36 months
-
Refrigerant:
R-32
-
Power supply (Phase/Frequency/Voltage):
1~/50/220-240
-
Indoor unit
-
Dimensions:
249 x 1100 x 774 H x W x L (mm)
-
Weight:
32 kg
-
Sound Pressure - cooling (High/Nom./Low/Silent):
42 / 40 / 38 / - dB (A)
-
Sound Pressure - heating (High/Nom./Low/Silent):
42 / 40 / 38 / - dB (A)
-
Outdoor unit
-
Compressor type:
Rotary
-
Dimensions:
702 x 845 x 363 H x W x L (mm)
-
Weight:
49 kg
-
Refrigerant piping - Liquid / Gas:
9.52 / 15.9 mm (3/8" / 5/8") mm / inch
-
Sound Pressure - cooling (High/Nom./Low/Silent):
62 / - / - / - dB (A)
-
Sound Pressure - heating (High/Nom./Low/Silent):
62 / - / - / - dB (A)
- Shipping package - NIPPON NOCA30U-24HFN8-Q PRO OU
- Packages quantity:
1 pc.
-
Package dimensions (HxWxD cm):
76 x 40 x 97; Weight: 52.8 kg.;
