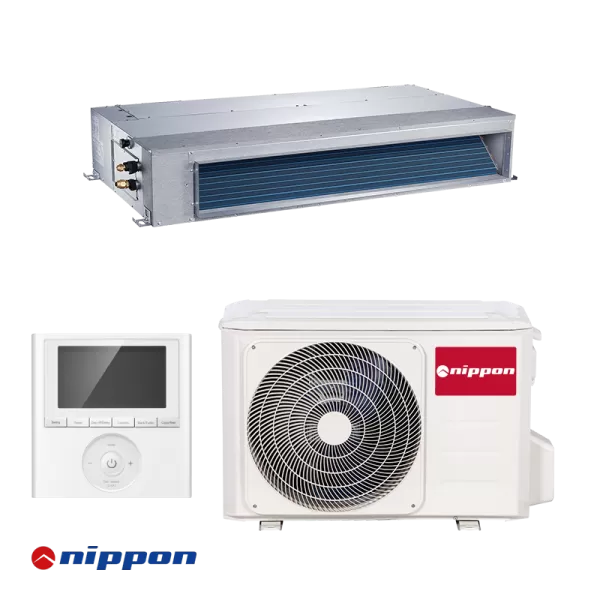

Duct Air conditioner Nippon NTIU-12HWFNX-Q + NOB30U-12HFN8-Q
- Code: 2560447
- In stock
- Weight: 59.50 kg
The Nippon NTIU-12HWFNX-Q / NOB30U-12HFN8-Q inverter duct air conditioner is suitable for rooms up to 25 sq.m. This type of air conditioners is a practical solution when the air has to be transported over long distances. Compact indoor units with a small height of up to 250 mm can be installed in low ceilings. All models in the series have a high energy class A ++ for cooling and A + for heating and a 24-month warranty.
985.00 €
Documents
Comments
Technical information
-
Basic
-
Cooling capacity (Min./Nom./Max):
1.49 / 3.51 / 4.75 kW
-
Heating capacity (Min./Nom./Max):
0.97 / 4.1 / 5.63 kW
-
Consumption power - cooling (Min./Nom./Max):
0.35 / 0.95 / 1.62 kW
-
Consumption power - heating (Min./Nom./Max):
0.35 / 1.10 / 2.05 kW
-
Capacity (BTU):
12 000 BTU
-
Seasonal efficiency SEER cooling:
6.5
-
SCOP:
4
-
Energy label (Cooling / Heating) - Average climate:
A++ / A+
-
Operation Range (Cooling):
-15 ~ 50 °C
-
Operation Range (Heating):
-15 ~ 24 °C
-
Suitable for rooms up to:
25 square meters
-
Warranty:
36 months
-
Refrigerant:
R-32
-
Power supply (Phase/Frequency/Voltage):
1~/50/220-240
-
Indoor unit
-
Dimensions:
200 x 700 x 450 H x W x L (mm)
-
Weight:
18 kg
-
Sound Pressure - cooling (High/Nom./Low/Silent):
35 / 31 / 26 / - dB (A)
-
Sound Pressure - heating (High/Nom./Low/Silent):
35 / 31 / 26 / - dB (A)
-
Outdoor unit
-
Compressor type:
Rotary
-
Dimensions:
554 x 800 x 333 H x W x L (mm)
-
Weight:
35 kg
-
Refrigerant piping - Liquid / Gas:
6.35 / 9.52 mm (1/4" / 3/8") mm / inch
-
Sound Pressure - cooling (High/Nom./Low/Silent):
56 / - / - / - dB (A)
-
Sound Pressure - heating (High/Nom./Low/Silent):
56 / - / - / - dB (A)
- Shipping package - NIPPON NOB30U-12HFN8-Q PROF OU
- Packages quantity:
1 pc.
-
Package dimensions (HxWxD cm):
63 x 39 x 92; Weight: 37.5 kg.;
