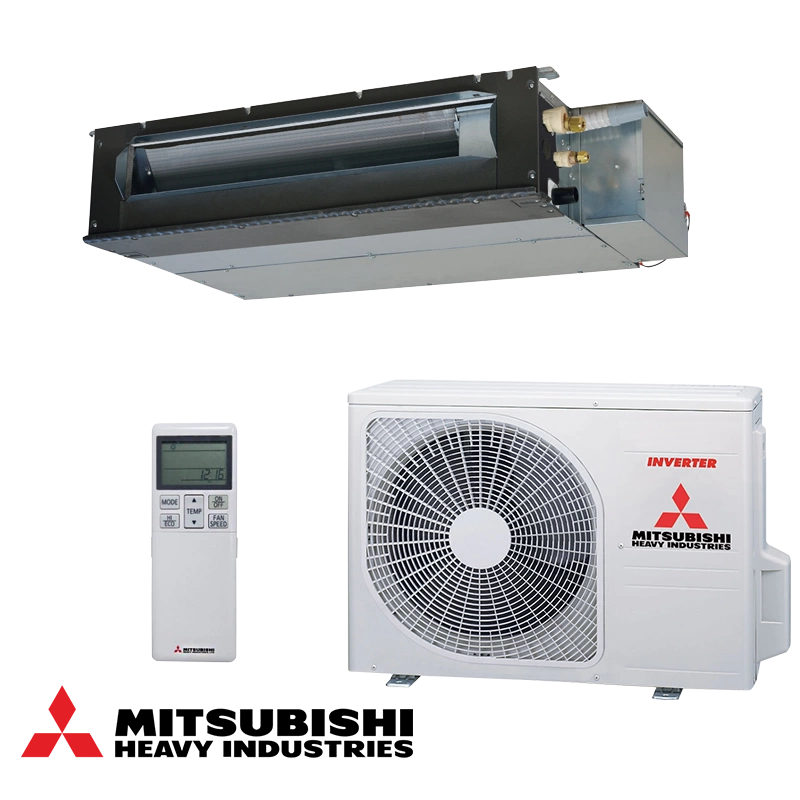

Duct Air conditioner Mitsubishi Heavy Industries SRR35ZS-W + SRC35ZS-W1

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  1.0 / 3.5 / 3.9 kW

• Heating capacity (Min./Nom./Max):

  1.5 / 4.2 / 5.2 kW

• Consumption power - cooling (Min./Nom./Max):

  - / 0.98 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 1.03 / - kW

• Capacity (BTU):

  12 000 BTU

• Nominal efficiency EER cooling:

  3.57

• Seasonal efficiency SEER cooling:

  6.31

• COP:

  4.02

• SCOP:

  4.25

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -15 ~ 46 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  26 square meters

• Warranty:

  36 months

• Refrigerant:

  R-410A

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  200 x 750 x 500 H x W x L (mm)

• Weight:

  21 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  38 / 34 / 31 / 25 dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  41 / 38 / 35 / 29 dB (A)

• Outdoor unit
• Dimensions:

  595 x 780 x 290 H x W x L (mm)

• Weight:

  35 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 50 / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 50 / - / - dB (A)

• Shipping package - MITS. HEAVY SRR 35 ZS-W DUCT
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  20 x 50 x 75; Weight: 24 kg.;

• Shipping package - MITS. HEAVY SRC 35 ZS-W2 OUT
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  55 x 80 x 30; Weight: 39.5 kg.;
