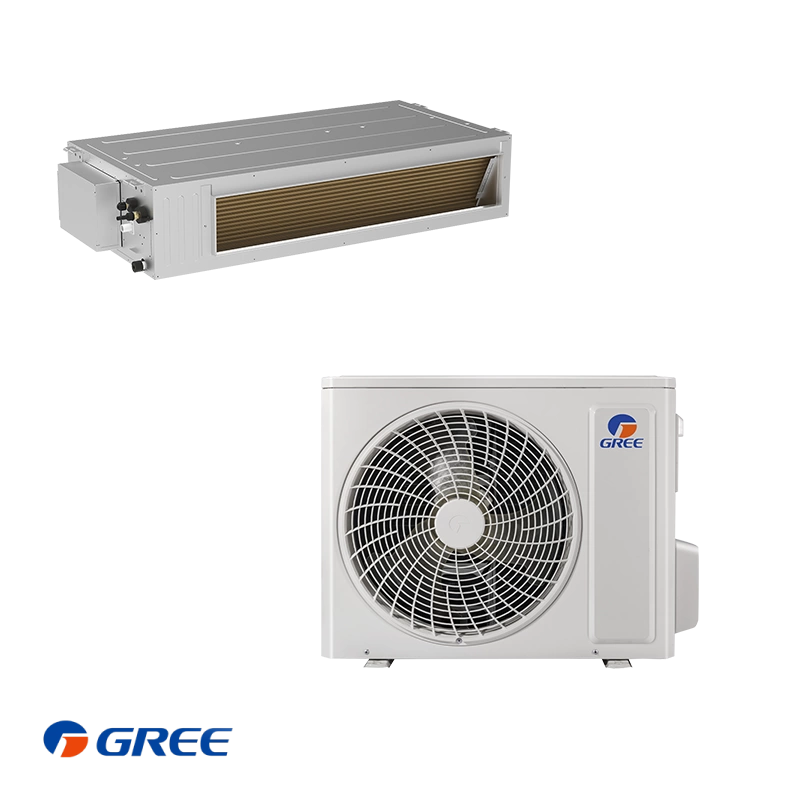

Duct Air conditioner Gree GUD35P1 + GUD35W1/NhA-S

Documents

Comments

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  - / 3.5 / - kW

• Heating capacity (Min./Nom./Max):

  - / 4.0 / - kW

• Consumption power - cooling (Min./Nom./Max):

  - / 0.95 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 1.05 / - kW

• Capacity (BTU):

  12 000 BTU

• Nominal efficiency EER cooling:

  3.68

• Seasonal efficiency SEER cooling:

  6.1

• SCOP:

  4

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -20 ~ 48 °C

• Operation Range (Heating):

  -20 ~ 24 °C

• Suitable for rooms up to:

  23 square meters

• Warranty:

  24 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  200 x 700 x 450 H x W x L (mm)

• Weight:

  20 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  41 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  41 / - / - / - dB (A)

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  596 x 818 x 302 H x W x L (mm)

• Weight:

  37 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  53 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  53 / - / - / - dB (A)

• Shipping package - GREE GUD35P1 DUCT INDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  32 x 110 x 80; Weight: 38 kg.;

• Shipping package - GREE GUD35W1/NHA-S OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  60 x 79.5 x 38; Weight: 27 kg.;
