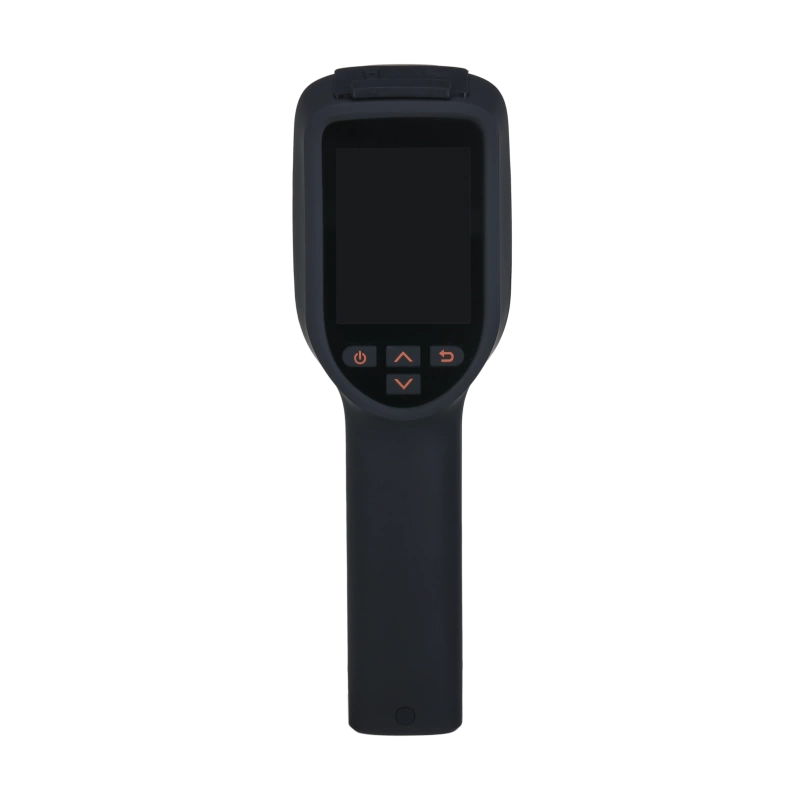

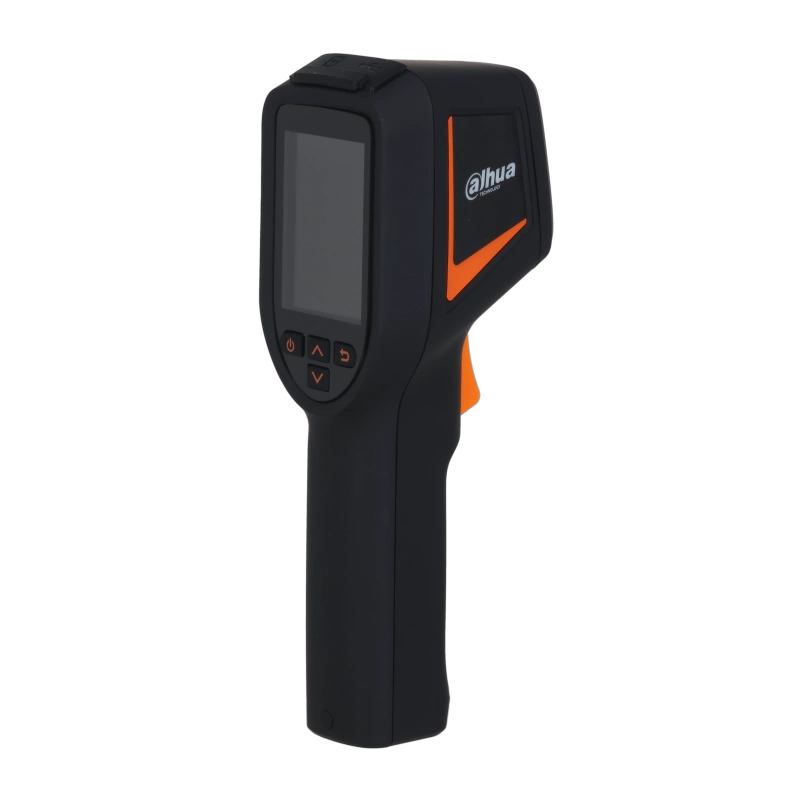

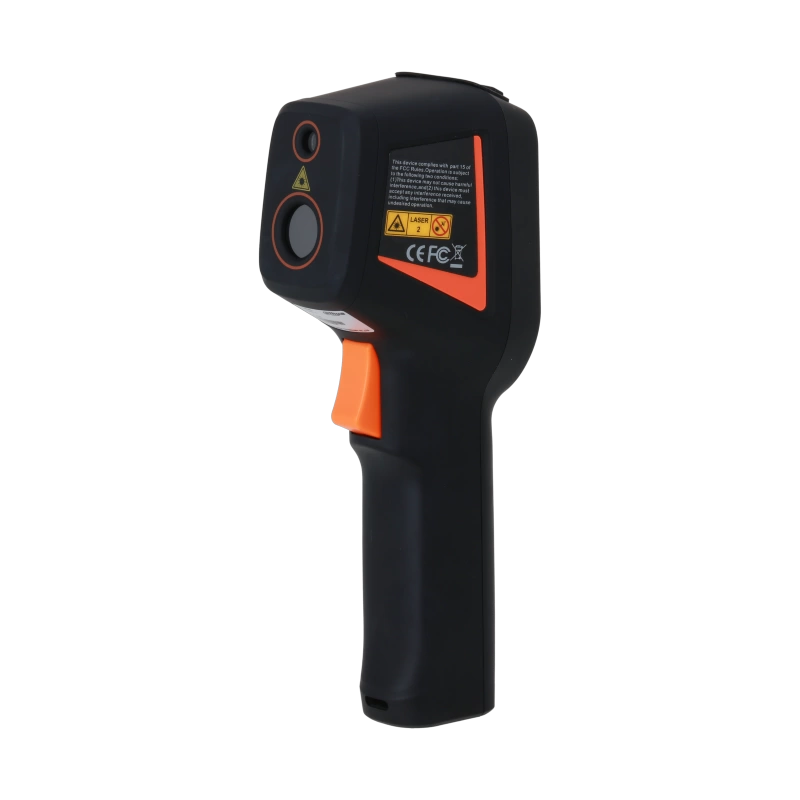

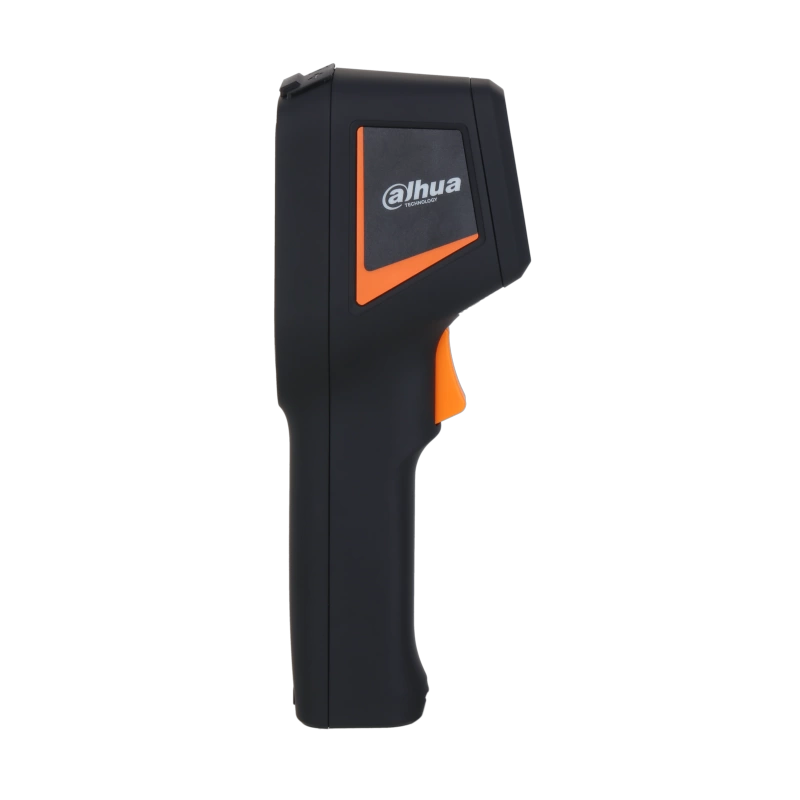

Dahua TPC-HI20 Thermal Handheld Thermographic Camera

Technical information

• General
• Series:

  Thermal

• Color:

  Black

• Image Sensor:

  Vanadium Oxide Uncooled FPA

• Resolution:

  Thermal Camera 256 × 192

• Storage:

  Micro SD card (256 G)

• Camera
• Thermal Camera Specific Characteristics:

  Pixel Size 12um, Spectral Range 8 um~14 um, Thermal Sensitivity (NETD) ≤40 mK@f/1.0, Color Palettes 4 (Whitehot/Blackhot/Rainbow/Ironbow), Temperature Range –20 °C to +550 °C, Accuracy Max(±2 °C, ±2%), Operating Temperature (–20°C to +50 °C), Measurement Distance 1 m~4 m, Temperature Mode: 6

• Lens
• Focal Length:

  3.5 mm

• Max Aperture:

  F1.0

• Angle of View:

  37.8° (H)

• Close Focus Distance:

  0.5 m

• Video
• Frame Rate:

  480 x 640@25 fps

• Video Compression:

  H.265

• Noise Reduction:

  Yes

• Perimeter Protection
• AI Functions:

  Thermal/Hot Trace

• Face Recognition
• Metadata
• Artificial Intelligence
• Alarm Prompt:

  No SD card; SD card has no space; SD card error; sound alarm

• Certification
• Certifications:

  CE: EN 55032:2015; EN 61000-3-3:2013+A1:2019; EN 50130-4:2011/A1:2014; EN55024:2010/A1:2015; EN55035:2017 FCC: CFR 47 FCC Part 15 subpart B, 2019; ANSI C63.4- 2014 UL: IEC 62368-1:2014 (Second Edition

• Port
• USB:

  Micro USB

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 256 GB

• Network
• Power
• Power Supply:

  5V DC; built-in battery

• Power Consumption:

  < 1W

• Environment
• Operating Temperature:

  - 20°C to + 50°C

• Operating RH:

  < 90% RH

• Storage Temperature:

  - 20°C to + 60°C

• Protection:

  IP54

• Construction
• Dimensions:

  192.4 mm × 62.5 mm × 72.2 mm

• Net Weight:

  0.35 kg

• Gross Weight:

  1 kg

• Shipping package - DAHUA TPC-HI20
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  23.9 x 10.9 x 24.7; Weight: 0.88 kg.;
