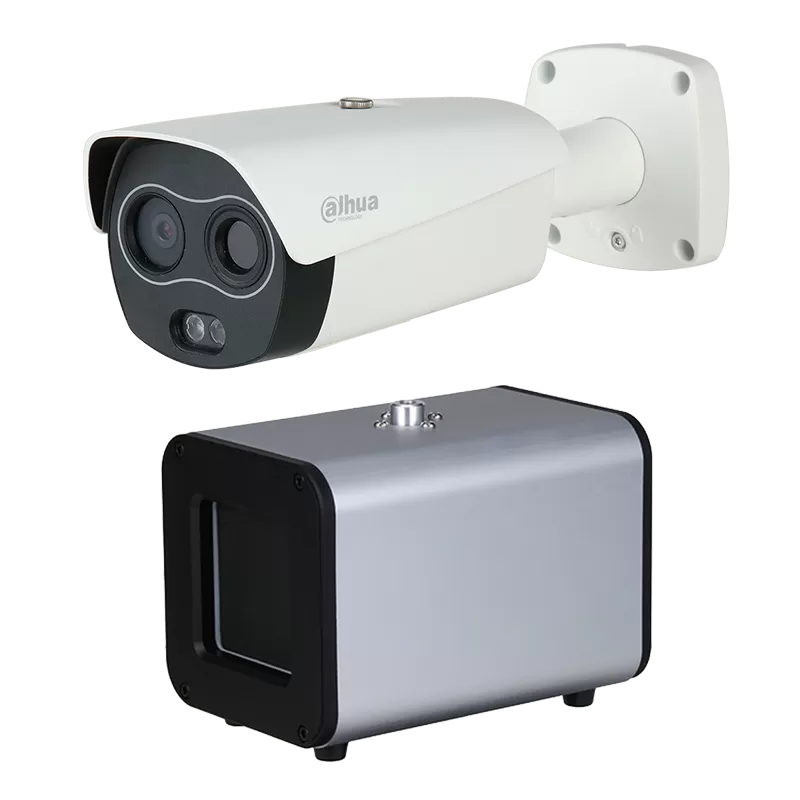

Dahua thermal temperature monitoring solution DH-TPC-BF3221-T

Technical information

• General
• Image Sensor:

  Thermal Camera: VOx uncooled thermal sensor technology + Visible Camera: 1/2.8” 2 Megapixel Progressive

• Resolution:

  1080p (1920 × 1080)

• Resolution_surveillance:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Visible Camera 1/1 ~ 1/30,000s

• Minimum Illumination:

  Visible Camera Color: 0.002Lux; B/W: 0.0002Lux; 0Lux (IR on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  35 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  1

• Storage:

  NAS; Local PC for instant recording; Mirco SD card 128GB

• Camera
• Thermal Camera Specific Characteristics:

  Pixel size 12 μm; Thermal Sensitivity (NETD) <50mK@f/1.1; Spectral Range 8~14 μm; Thermal imaging lens: 7mm; Image Setting Brightness/Sharpness/ROI/AGC/FFC/3D DNR; Color Palettes 18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2 .etc); Temperature measurement range: 30 ℃ ～ 45 ℃ ; Temperature measurement accuracy: ± 0.3 ℃, with black body; ± 1 ℃, without black body; Temperature Mode: Spot: 12, Line: 12, Area: 12, Support 12 rules simultaneously

• Blackbody Specific Characteristics:

  Working Temperature: Factory Settings 35.0° C (95.0° F), 37° C (98.6° F ), 40.0° C (104.0° F), Environmental Temperature +5° C to 50° C (41° F to 122° F); Effective Radiant Surface 70 mm x 70 mm (2.76 in. 2.76 in.); Temperature Resolution 0.1° C; Temperature Accuracy ±0.2° C (single point); Temperature Stability ±0.1° C to 0.2° C / 30 minutes; Effective Emissivity 0.97; Temperature Sensor Pt100

• Lens
• Lens type:

  Thermal Camera: Fixed + Visible Camera: Fixed

• Focal Length:

  Thermal Camera 3.5 mm - 7.1 mm + Visible Camera 4 mm - 8 mm

• Max Aperture:

  Visible Camera F2 - F1.9

• Angle of View:

  Thermal Camera 50.6° - 24°(H); Visible Camera 84° - 40°(H)

• Video
• Frame Rate:

  25

• Record Rate:

  Main Stream: Thermal camera 1280*960/1024*768/640*480/256*192@25fps + Visible camera 1080P (default)/720P@25fps Sub Stream: Thermal camera 640*480/256*192@25fps + Visible camera CIF(default)/D1@25fps

• Video Compression:

  H.265/H.264/MJPEG

• Bit Rate:

  H.264: 640 ~ 8192Kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• White Balance:

  Auto / Manual

• Noise Reduction:

  Ultra DNR

• Mirror:

  Off/On

• Privacy Masking:

  Off/On (4 area, rectangle)

• Region of Interest:

  Yes

• Optical Defog:

  Yes

• Perimeter Protection
• AI Functions:

  Defog , Privacy masking , ROI (Region of interest)

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Certification
• Port
• RS485:

  1

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 128GB

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

• Interoperability:

  ONVIF Profile S & G, API

• Max. User Access:

  10/20

• Streaming Method:

  Unicast / Multicast

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS, DSS, DMSS

• Power
• Environment
• Operating Temperature:

  Thermal Camera: DC 12V /PoE, Black Body: 110 VAC ~ 220 VAC

• Construction
