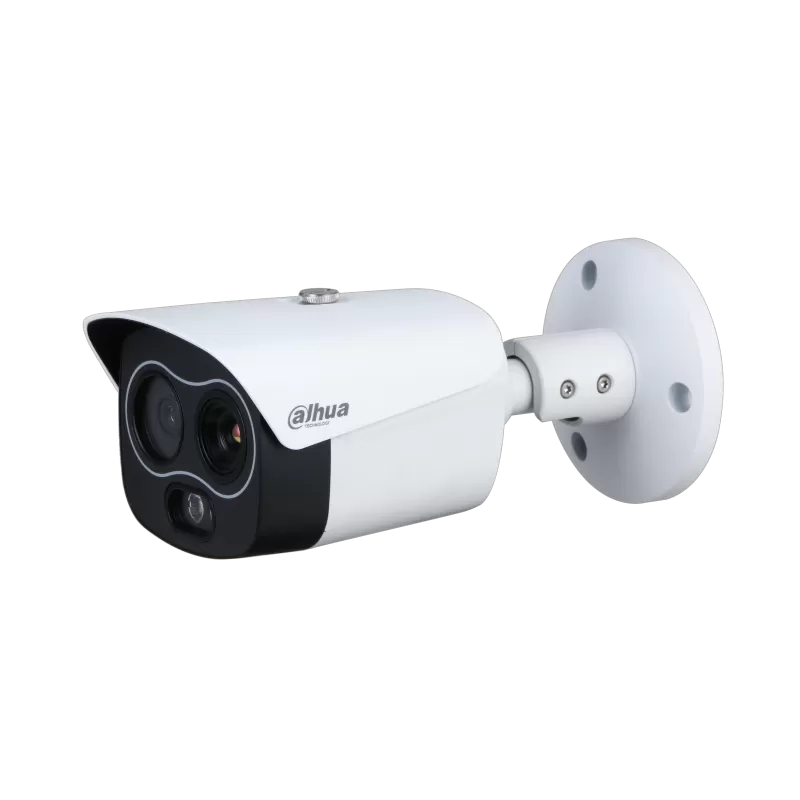

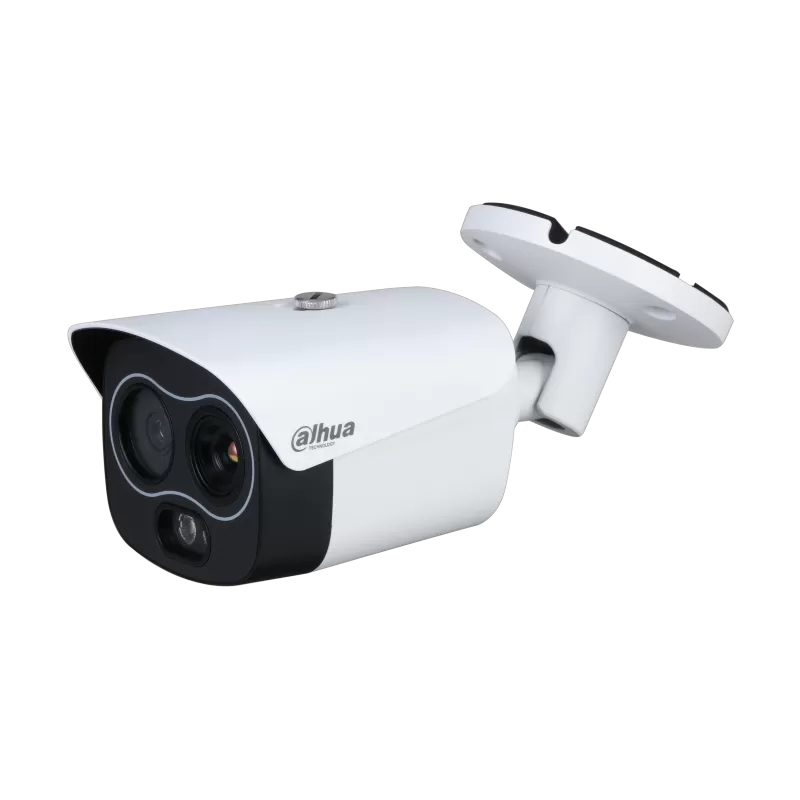

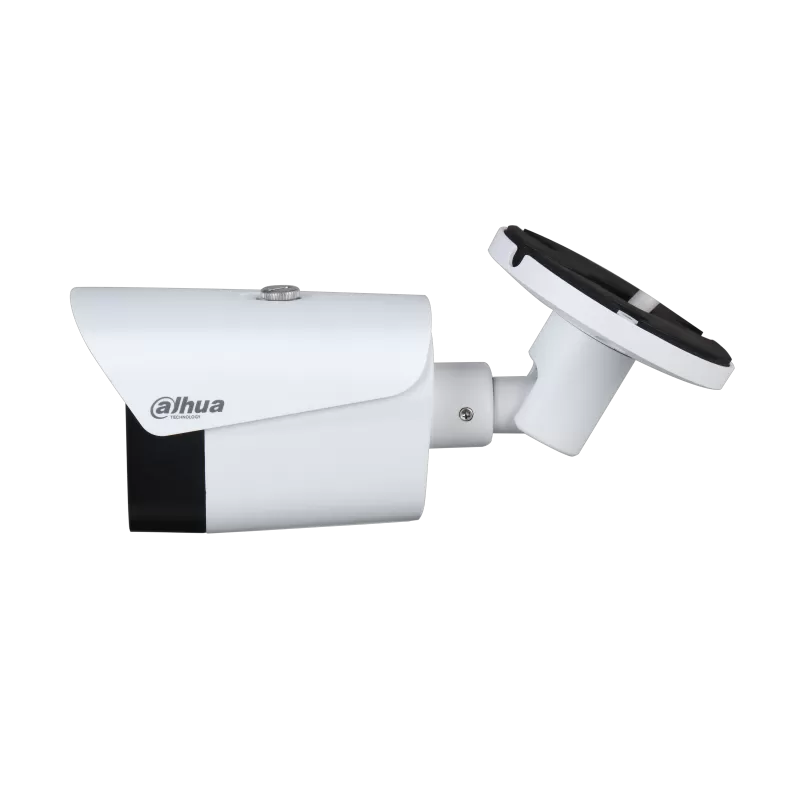

Dahua TPC-BF1241-B3F4-S2 Thermal Network Mini Hybrid Bullet Camera

Technical information

• General
• Case Type:

  Bullet

• Series:

  Eureka

• Color:

  White

• Image Sensor:

  Thermal Camera: Vanadium Oxide Uncooled FPA + Visible Camera: 1/2.7” 4 Megapixel Progressive

• Resolution:

  Thermal: 1.3MP (1280 × 960) ; Visual: 4MP (2336 × 1752)

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Visible Camera 1/30000s–1s

• Minimum Illumination:

  Visible Camera Color: Color: 0.05 lux Black & white: 0.005 lux 0 lux (IR on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  30 meters

• IR On/Off Control:

  Auto / Manual

• Storage:

  Micro SD card (256 G)

• Camera
• S/N Ratio:

  > 55dB

• Thermal Camera Specific Characteristics:

  Pixel size 12μm; Spectral Range 8μm–14μm; Thermal Sensitivity (NETD) < 40 mK (@f/1.0, 25 Hz, 300 K); Aperture F1.0; Digital Detail Enhancement (DDE) Yes; Digital Zoom 16 levels; AGC Auto/Manual; Noise Reduction 2D NR; 3D NR; Image Flip 90°; 180°; 270°; Color Palettes - 18; Fusion Mode – 3

• Lens
• Lens type:

  Thermal Camera: Fixed + Visible Camera: Fixed

• Focal Length:

  Thermal Camera 3.5 mm + Visible Camera 4 mm

• Max Aperture:

  Thermal Camera F1.0 + Visible Camera F1.6

• Angle of View:

  Thermal Camera H: 50.6° + Visible Camera H: 71.2°

• Video
• Record Rate:

  Thermal 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

• Video Compression:

  H.265; H.264M; H.264H; H.264B; MJEPG

• BLC:

  BLC / HLC / DWDR

• WDR:

  DWDR

• White Balance:

  Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural

• Noise Reduction:

  2D NR/3D NR

• Flip:

  90°; 180°; 270°

• Region of Interest:

  Yes

• Perimeter Protection
• AI Functions:

  Heat detection , Intrusion , Mobile phone conversation detection , Perimeter protection , Smoke detection , Tripwire , ROI (Region of interest) , SMD Plus (detection of vehicle/human) , Thermal/Hot Trace

• Face Recognition
• Metadata
• Artificial Intelligence
• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Smart Motion Detection Technology:

  Yes

• Certification
• Port
• Audio Input:

  1

• Audio Output:

  1

• Alarm I/O:

  1/1

• RS485:

  1

• Audio Compression:

  G.711a; G.711mu; PCM

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 256 GB

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

• Interoperability:

  ONVIF; CGI

• Max. User Access:

  10

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Compatible accessories:

  PFA130-E, PFA152-E

• Power
• Power Supply:

  12V±20% DC; POE

• Power Consumption:

  Max <14 W (12 VDC); 12.3 W (PoE)

• Environment
• Operating Temperature:

  - 30°C to + 50°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 30°C to + 70°C

• Protection:

  IP67

• Construction
• Dimensions:

  205.5 mm × 90.4 mm × 90.1 mm

• Net Weight:

  0.9 kg

• Gross Weight:

  1.3 kg

• Shipping package - DAHUA TPC-BF1241-B3F4-S2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  13.8 x 18.7 x 27.9; Weight: 1.3 kg.;
