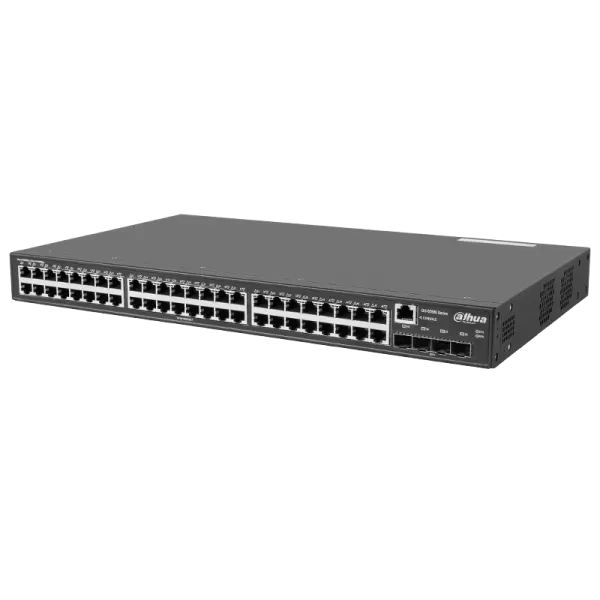

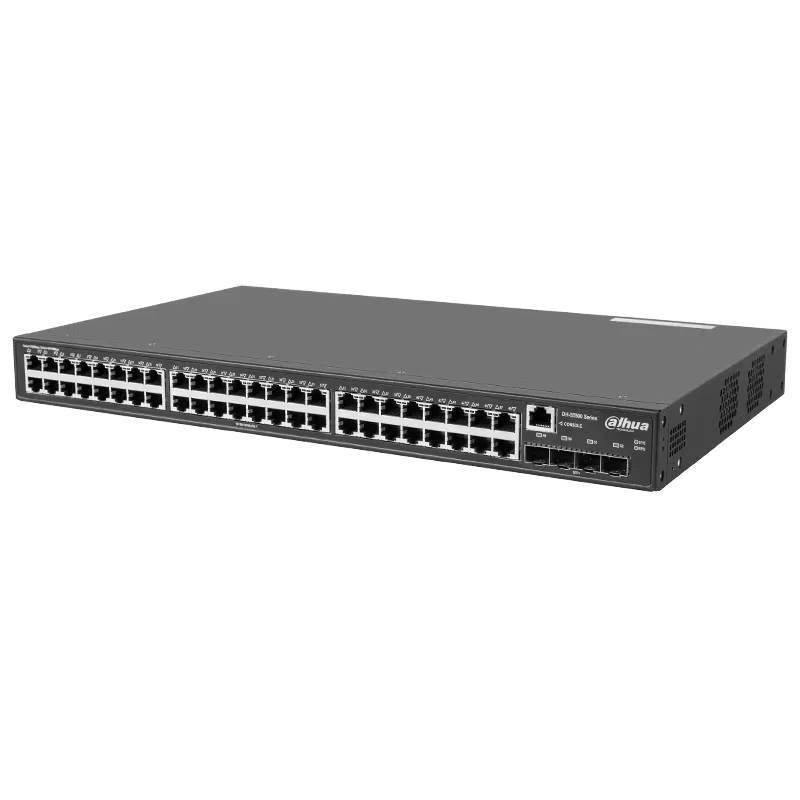

Dahua S5500-48GT4XF AGGREGATION SWITCH

Technical information

• Genral
• Layer:

  Layer 2

• Gigabit:

  Yes

• Number of Ethernet Ports:

  48

• Detailed Specifications
• Ethernet Port Types:

  48 x 10/100/1000 Base-T electrical port + 4 x 10G BASE-X SFP+ optical port

• Switching Capacity:

  256 Gbps

• Packet Forwarding Rate:

  132 Mpps

• Power:

  AC: 100 V–240 V 50/60 Hz, DC: –36 V to –72 V

• Working Temperature:

  0°C ~ 45°C

• Application Humidity:

  5% ~ 95%

• Dimension (W × L × H):

  440mm × 230mm × 43.6mm

• Additional features
• VLAN:

  Port-based VLAN, Protocol-based VLAN, QinQ and flexible QinQ, VLAN mapping, Voice VLAN, Guest VLAN

• Port Aggregation:

  GE/10GE

• Mirroring:

  Port mirroring, RSPAN, Traffic mirroring

• DHCP:

  DHCP Client, DHCP Snooping, DHCP Snooping option82, DHCP Relay, DHCP Server, DHCP auto-config (zero configuration

• Security Features:

  802.1X authentication and centralized MAC address authentication, Guest VLANs, RADIUS authentication, SSH 2.0, Port isolation, Port security, Restriction on the number of learned MAC addresses, Protection of source IP addresses, Detection of ARP intrusion, IP address + MAC address + port multi-element binding

• System Maintenance:

  Loading and upgrade via XModem, FTP, or TFTP, Configurations via the CLI, Telnet and Console port, SNMPv1/v2/v3 and Web-based network management, RMON alarms, events, and history records, Intelligent management centers, Output of system logs, hierarchical alarms, and debugging information, NTP, Ping and Tracert, Virtual Cable Test (VCT), Device Link Detection Protocol (DLDP), Loopback detection for ports, Temperature alarms for the power sources and fans, CPU protection

• QoS:

  Restriction of the packet receiving rate and packet transmission rate on ports, Packet redirection, Eight output queues on each port, Queue scheduling on ports (SP, WRR, and SP+WRR), Re-marking of 802.1p and DSCP priorities of packets

• Shipping package - DAHUA S5500-48GT4XF AGGREGATION SWITCH
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  34 x 54 x 90; Weight: 4.4 kg.;
