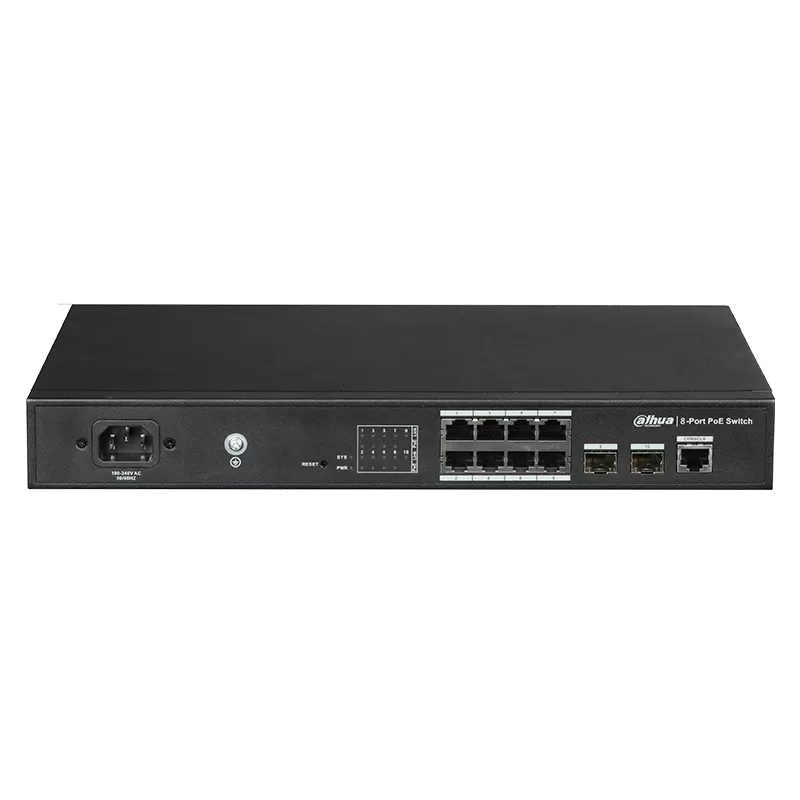

Dahua PFS4210-8GT-150 8-Port PoE Gigabit Managed Switch

Technical information

• Genral
• Managed:

  Yes

• PoE Supprot:

  Yes

• Number of Ethernet Ports:

  8

• Mount Type:

  Rack mount or free standing

• Тype of use:

  Standard environment

• Detailed Specifications
• Ethernet Port Types:

  8*10/100/1000 Base-T (PoE power supply) 2*100/1000 Base-X

• PoE Power Consumption:

  Each power ≤30W, Total≤150W

• PoE Pin Assignment:

  1, 2 (V+), 3, 6 (V-)

• PoE Protocol:

  IEEE802.3af (PoE), IEEE802.3at (PoE+)

• Switching Capacity:

  20Gbps

• Packet Forwarding Rate:

  14.88Mpps

• Packet Buffer Memory:

  4Mb

• MAC Table:

  8000

• Flow Control:

  Half-duplex based on back pressure type control; Full duplex based on PAUSE frame

• Application Humidity:

  5% ~ 95%

• Power:

  AC100~240V, 50/60Hz

• Supports dual power supply for backup:

  No

• Lightning Protection:

  Common Mode 2KV Differential Mode 1KV

• Working Temperature:

  0°C ~ 45°C

• Net Weight:

  2.5 kg

• Dimension (W × L × H):

  340mm х 200mm х 44mm

• Additional features
• System access:

  Username / password: admin/admin IP Address :192.168.1.110/24

• VLAN:

  802.1Q Standard VLAN

• Spanning Tree:

  STP,RSTP,MSTP

• Port Aggregation:

  Manual aggregation/LACP

• Mirroring:

  Many-to-one port mirroring

• DHCP:

  Support DHCP client/server Support DHCP snooping

• Security Features:

  Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection

• System Maintenance:

  Support the configuration file upload/download Support the updated packet upload System log

• QoS:

  Support QoS base on CoS/DPL/PCP/DEI Each port support 8 output queue Support port shaping Support port tag remarking Support QoS base on DSCP

• System Management:

  WEB(http protocol), serial, SNMP; 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1

• PoE management:

  PoE setting (real-time port comsumption); PoE event statistics

• Shipping package - DAHUA PFS4210-8GT-150
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  45.9 x 11.2 x 31.1; Weight: 2.79 kg.;
