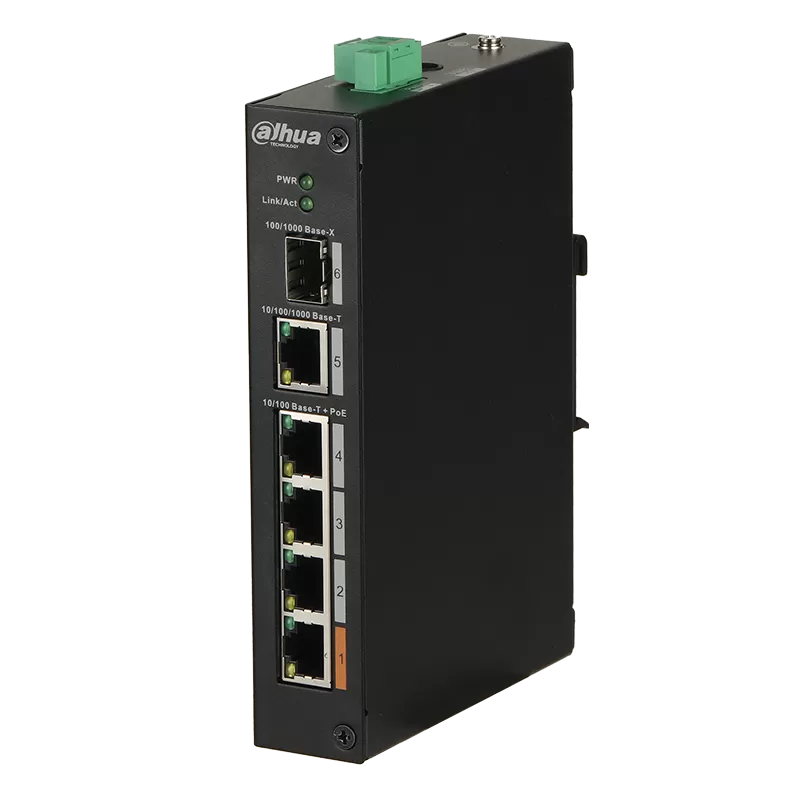

Dahua PFS3106-4ET-60 4-Port PoE Switch

Technical information

• Genral
• Managed:

  No

• PoE Supprot:

  Yes

• Number of Ethernet Ports:

  4

• Mount Type:

  DIN rail or free standing

• Тype of use:

  Hardened

• Detailed Specifications
• Ethernet Port Types:

  1*SFP 100/1000 Mbps, 1*1RJ-45 10/100/1000 Mbps, 4*RJ-45 10/100 Mbps (PoE)

• PoE Power Consumption:

  Port1≤60W, Port2-4≤30W, Total≤60W

• PoE Pin Assignment:

  1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

• PoE Protocol:

  IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

• Switching Capacity:

  6.8G

• Packet Forwarding Rate:

  3.57Mpps

• Packet Buffer Memory:

  1Mb

• MAC Table:

  8000

• Flow Control:

  Enable by default

• Application Humidity:

  5% ~ 95%

• Power:

  DC 48~57V power adapter

• Supports dual power supply for backup:

  Yes

• Lightning Protection:

  Common Mode 6KV Differential Mode 4KV

• Working Temperature:

  -30°C ~ 65°C

• ESD Protection:

  Air Discharge 15KV Contact Discharge 8KV

• Net Weight:

  0.44 kg

• Dimension (W × L × H):

  150mm × 108mm × 30mm

• Additional features
• Shipping package - DAHUA PFS3106-4ET-60
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  24 x 27 x 8; Weight: 1.1 kg.;
