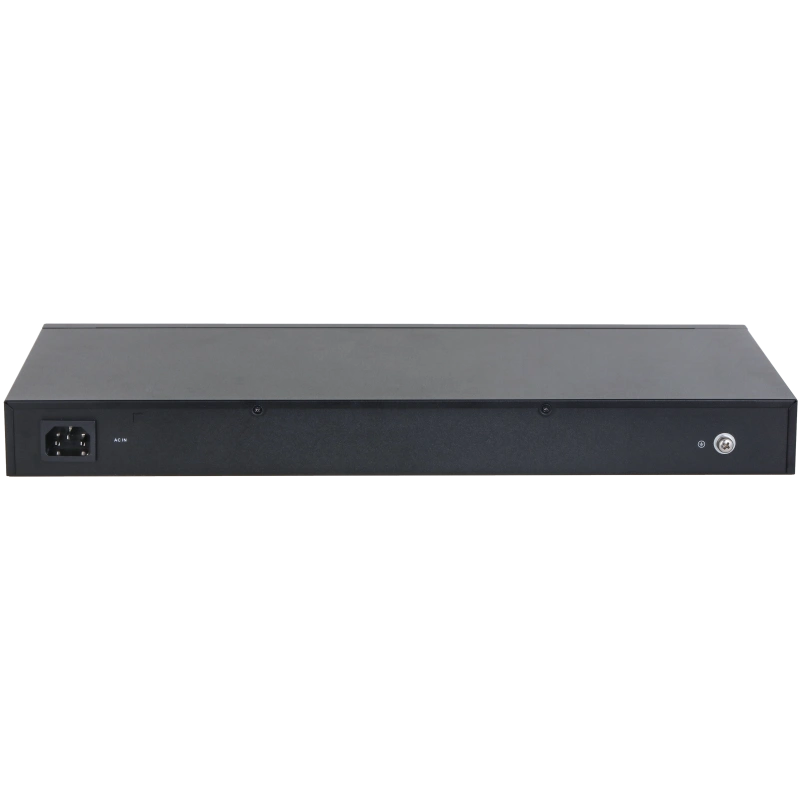

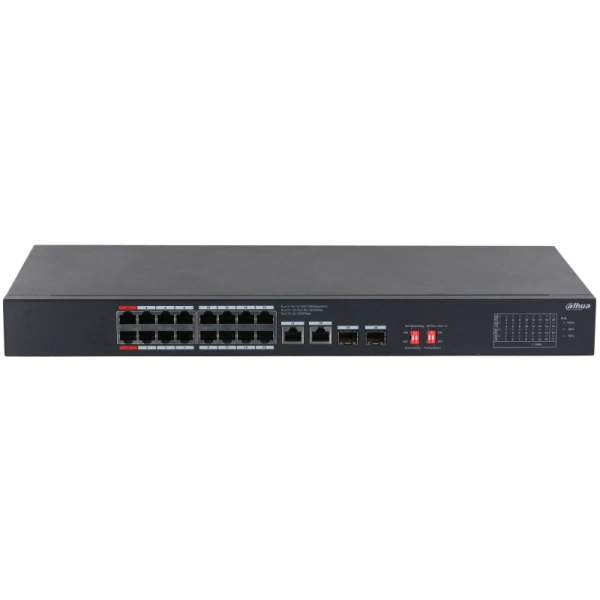

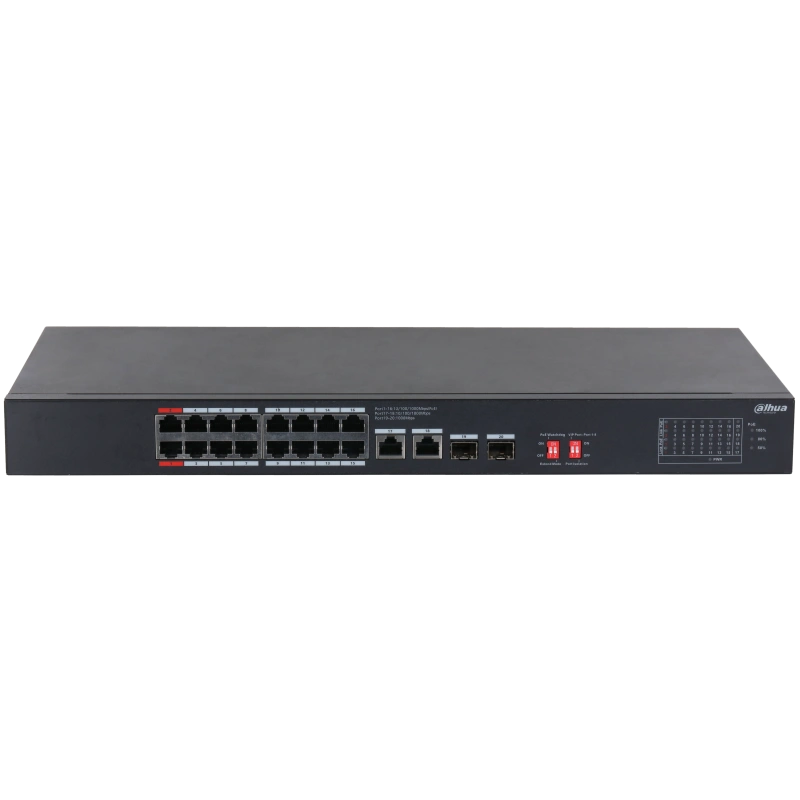

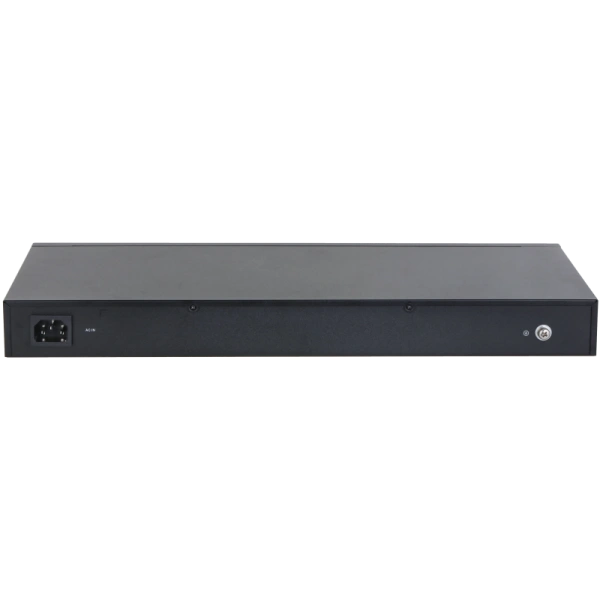

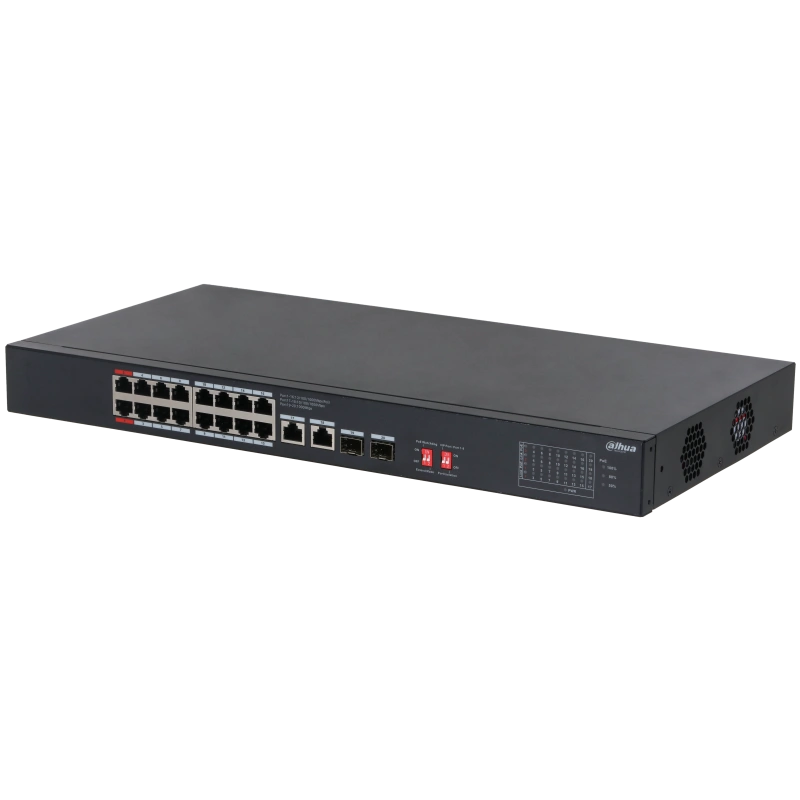

Dahua S3220-16GT-240 20-Port Unmanaged Desktop Gigabit Switch with 16-Port PoE

Technical information

• Genral
• Managed:

  No

• Gigabit:

  Yes

• PoE Supprot:

  Yes

• Hi-PoE:

  Port 1-2 ≤ 90W

• Number of Ethernet Ports:

  16

• Mount Type:

  Rack mount or free standing

• Detailed Specifications
• Ethernet Port Types:

  16 × RJ-45 10/100/1000 Mbps (PoE); 2 × RJ-45 10/100/1000 Mbps (Uplink); 2 × SFP 1000 Mbps (Uplink)

• Fiber ports:

  2*1000 Mbps

• PoE Power Consumption:

  Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 240 W

• PoE Pin Assignment:

  1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

• PoE Protocol:

  IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

• Standards Compliance:

  IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z

• Switching Capacity:

  40Gbps

• Packet Forwarding Rate:

  29.76Mpps

• Packet Buffer Memory:

  4Mb

• MAC Table:

  8000

• Application Humidity:

  5% ~ 95% (noncondensing)

• Power:

  AC100~240V, 50/60Hz, 4A

• Lightning Protection:

  Common Mode 4KV Differential Mode 2KV

• Working Temperature:

  -10°C ~ 55°C

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Net Weight:

  2.32 kg

• Dimension (W × L × H):

  440mm × 220mm × 44mm

• Additional features
• Shipping package - DAHUA S3220-16GT-240
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  11 x 41.2 x 52.7; Weight: 4.4 kg.;
