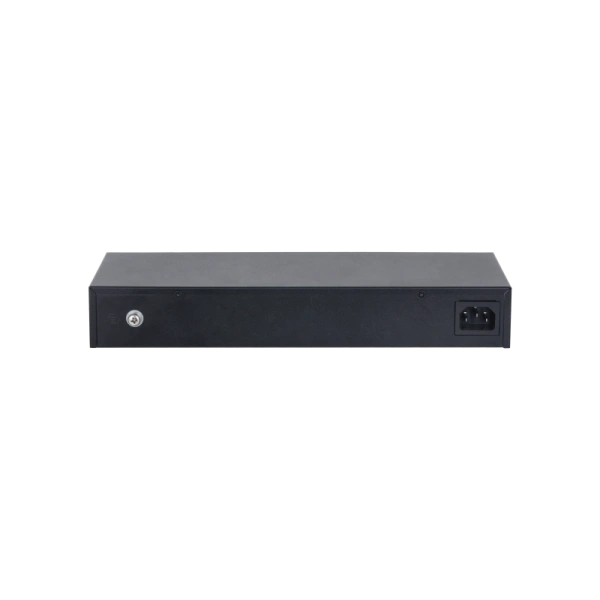

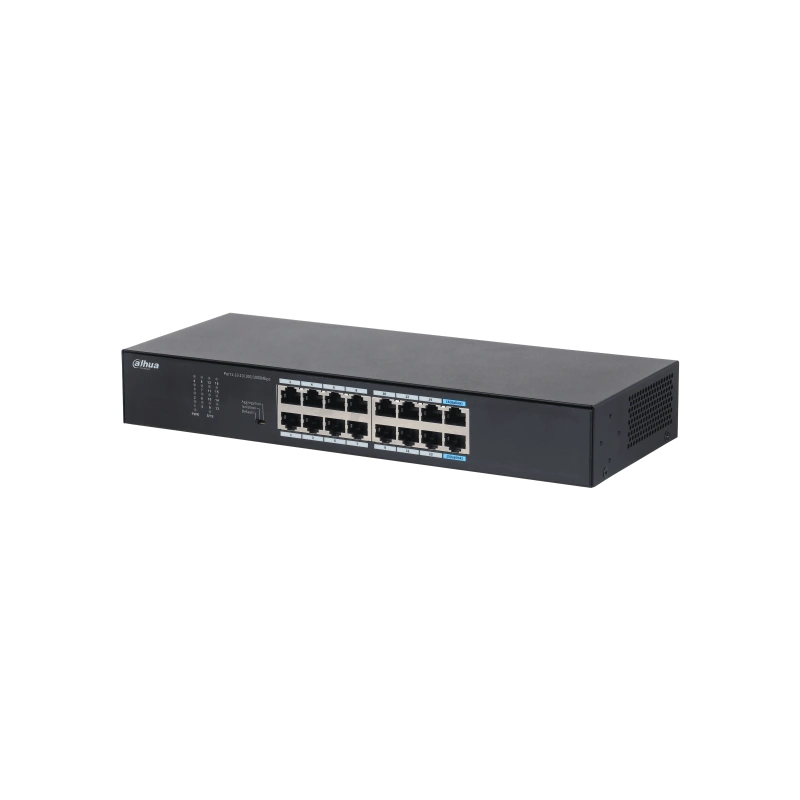

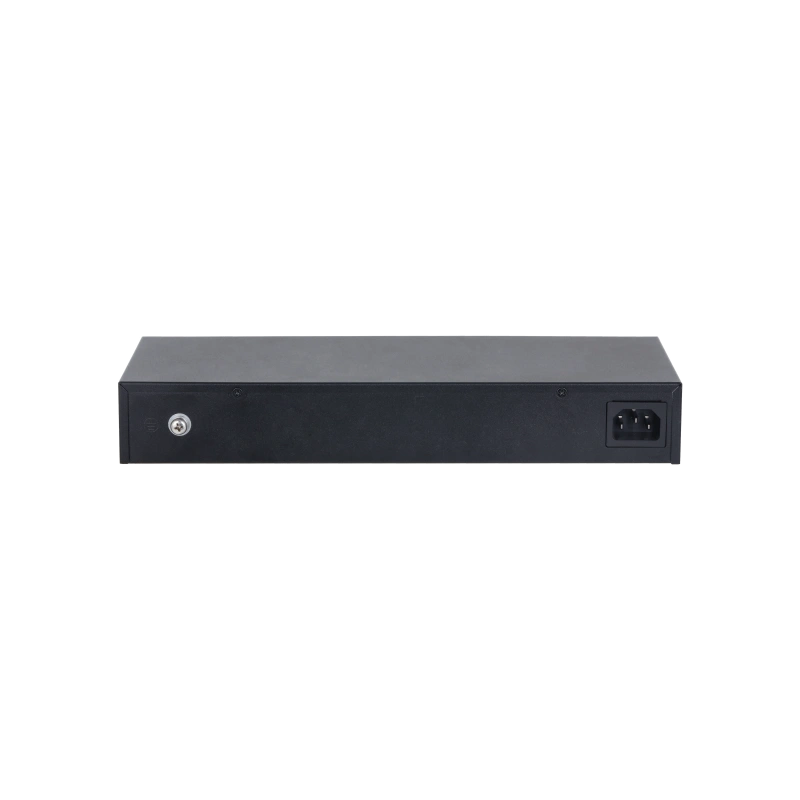

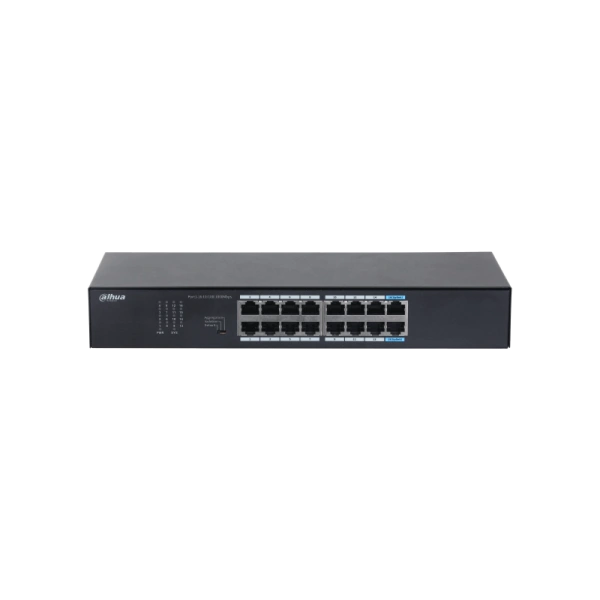

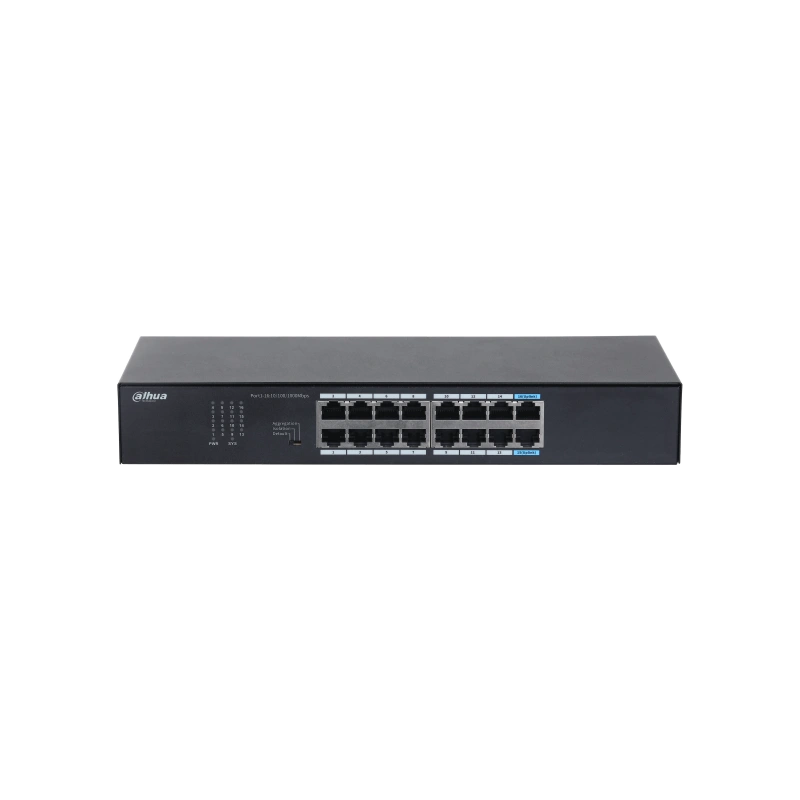

Dahua S3016-16GT 16-Port Unmanaged Gigabit Switch

Technical information

• Genral
• Managed:

  No

• Layer:

  Layer 2

• Gigabit:

  Yes

• Number of Ethernet Ports:

  14

• Mount Type:

  Rack mount or free standing

• Detailed Specifications
• Ethernet Port Types:

  14 × RJ-45 10/100/1000 Mbps; 2 × RJ-45 10/100/1000 Mbps (uplink)

• Standards Compliance:

  IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3ad

• Switching Capacity:

  32Gbps

• Packet Forwarding Rate:

  23.808 Mpps

• Packet Buffer Memory:

  8.6Mbit

• MAC Table:

  16000

• Flow Control:

  Support flow control based on IEEE802.3X

• Power:

  100–240 VAC, 50/60 Hz, 0.4 A

• Working Temperature:

  -10°C ~ 55°C

• Application Humidity:

  10% ~ 90% (noncondensing)

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Lightning Protection:

  Common Mode 2KV Differential Mode 0.5KV

• Net Weight:

  0.74 kg

• Dimension (W × L × H):

  294mm × 119mm × 44mm

• Additional features
• Port Aggregation:

  Static link aggregation

• Shipping package - DAHUA S3016-16GT
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  4.4 x 17.8 x 29.7; Weight: 1.5 kg.;
