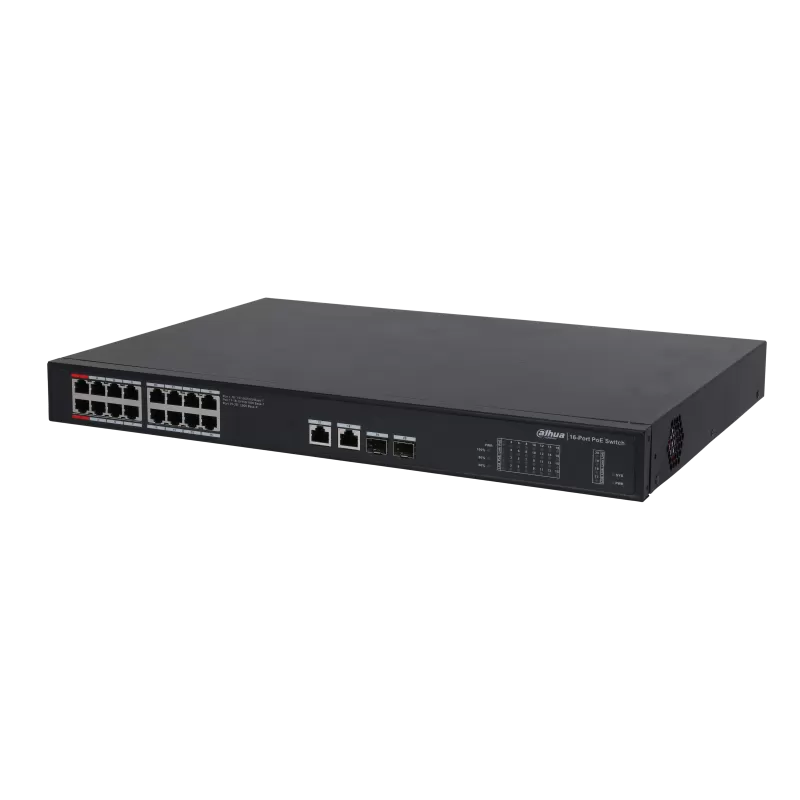

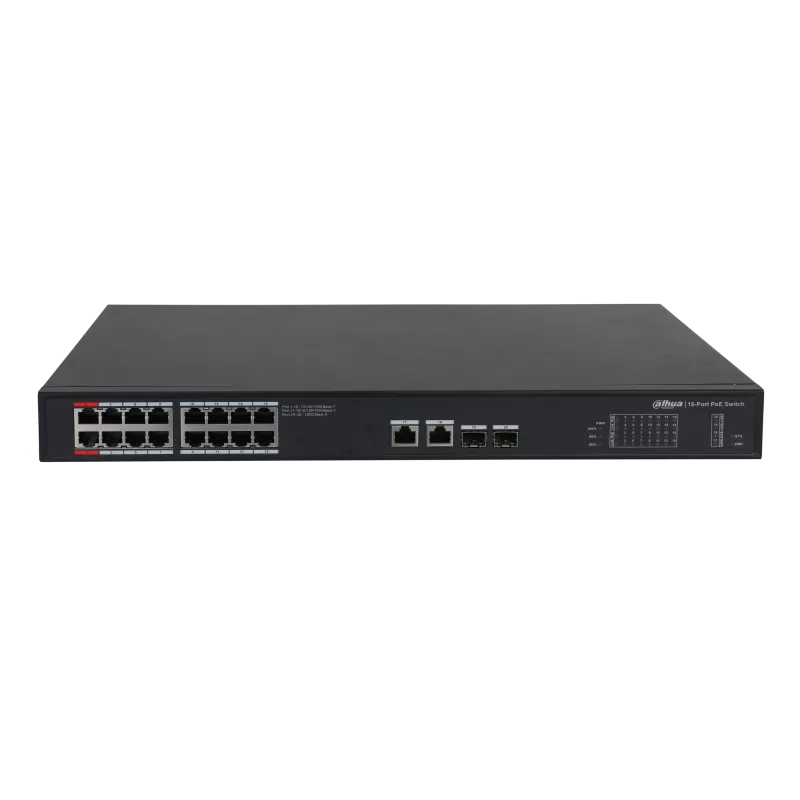

Dahua PFS3220-16GT-240-V2 20-Port Unmanaged Desktop Gigabit Switch with 16-Port PoE

Technical information

• Genral
• Managed:

  No

• Layer:

  Layer 2

• Gigabit:

  Yes

• PoE Supprot:

  Yes

• Hi-PoE:

  Port 1-2 ≤ 90W

• Number of Ethernet Ports:

  16

• Detailed Specifications
• Ethernet Port Types:

  16 × RJ45 10/100/1000 M (PoE), 2 × RJ-45 10 M/100 M/1000 M (uplink), 2 × SFP 1000 M (uplink)

• Fiber ports:

  2*1000 Mbps

• PoE Power Consumption:

  Port 1-2 ≤ 90W, Port 3-16≤ 30W, total ≤ 240W

• PoE Pin Assignment:

  1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

• PoE Protocol:

  IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt

• Standards Compliance:

  IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

• Switching Capacity:

  52Gbps

• Packet Forwarding Rate:

  29.76Mpps

• Packet Buffer Memory:

  4Mbit

• MAC Table:

  8000

• Power:

  100V AC–240V AC

• Working Temperature:

  -10°C ~ 55°C

• Application Humidity:

  10% ~ 90%

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Lightning Protection:

  Common Mode 4KV Differential Mode 2KV

• Dimension (W × L × H):

  440mm х 300mm х 44mm

• Additional features
• Shipping package - DAHUA PFS3220-16GT-240-V2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  11 x 41.2 x 52.7; Weight: 4.4 kg.;
