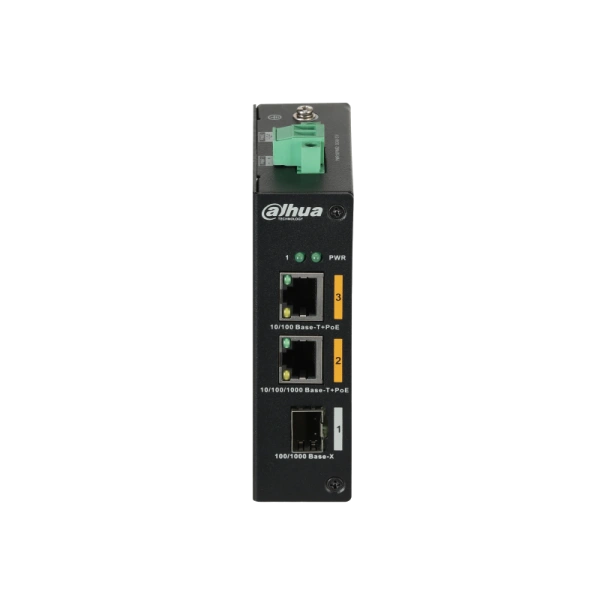

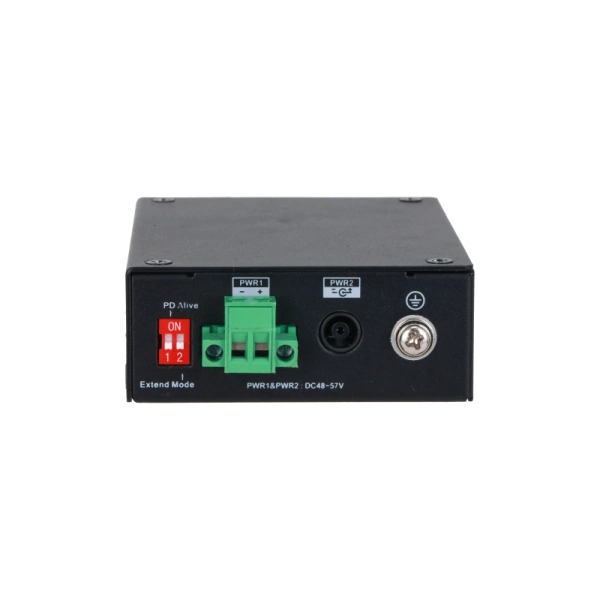

Dahua PFS3103-1GT1ET-60-V2 3-Port Unmanaged Hardened Desktop Switch with 2 Port PoE

Technical information

• Genral
• Managed:

  No

• Hi-PoE:

  Ports 2 and 3: 60W (orange ports)

• Number of Ethernet Ports:

  2

• Mount Type:

  Free standing

• Detailed Specifications
• Ethernet Port Types:

  1 × RJ-45 10/100M (PoE); 1 × RJ-45 10/100/1000M (PoE); 1 × SFP 100/1000M (uplink)

• Fiber ports:

  1*1000 Mbps

• PoE Power Consumption:

  Port 2-3 ≤ 60 W (Hi-PoE), total≤ 60 W

• PoE Pin Assignment:

  1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

• PoE Protocol:

  IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt

• Standards Compliance:

  IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3ab/IEEE 802.3z

• Switching Capacity:

  7.6G

• Packet Forwarding Rate:

  4.17Mpps

• Packet Buffer Memory:

  1Mbit

• MAC Table:

  8000

• Power:

  48V - 57V DC

• Application Humidity:

  5% ~ 95%

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Lightning Protection:

  Common Mode 4KV Differential Mode 2KV

• Net Weight:

  0.28 kg

• Dimension (W × L × H):

  105mm × 75mm × 30mm

• Additional features
• PoE management:

  Power consumption management

• Shipping package - DAHUA PFS3103-1GT1ET-60-V2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  3 x 7.5 x 10.5; Weight: 0.35 kg.;
