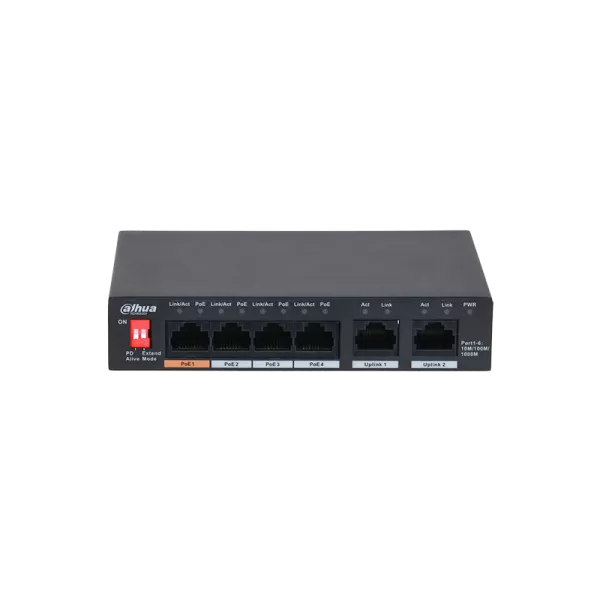

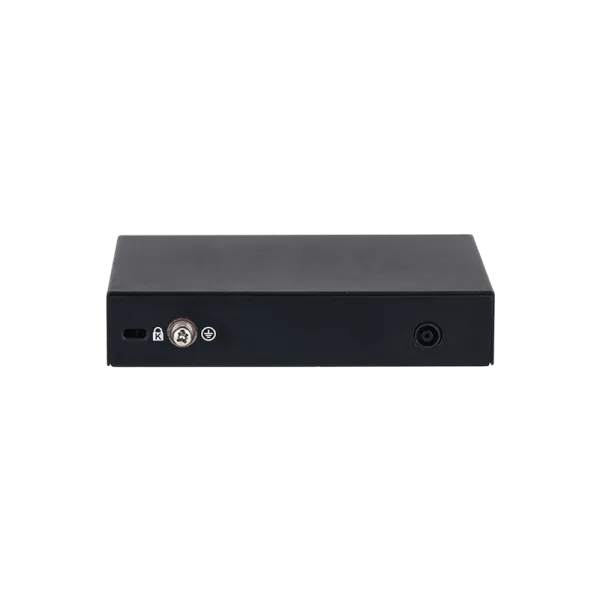

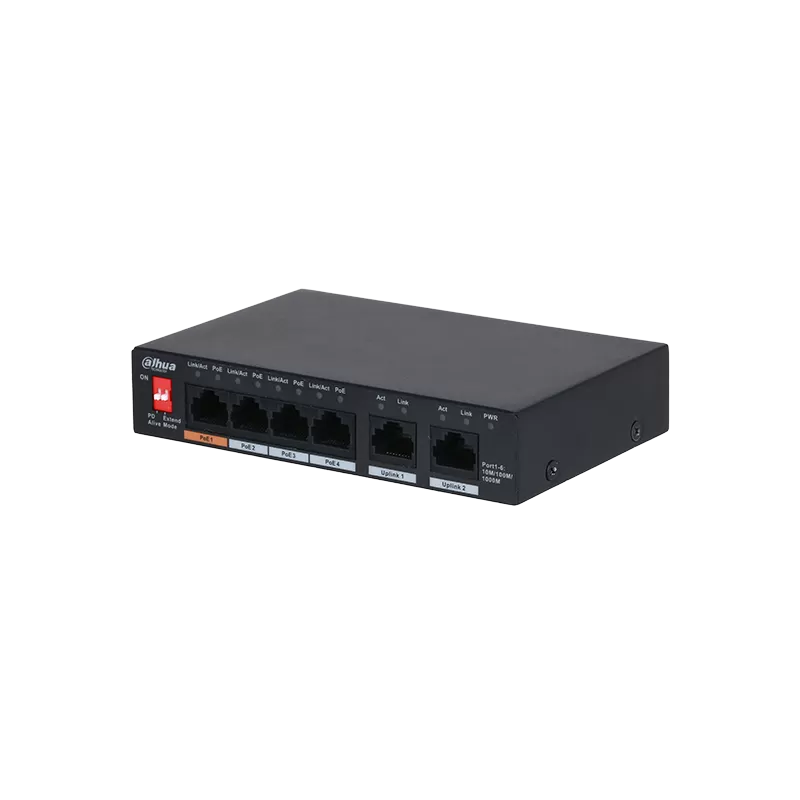

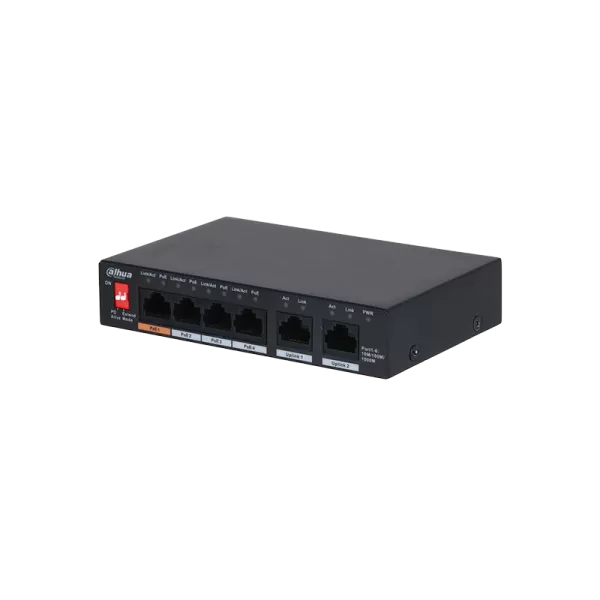

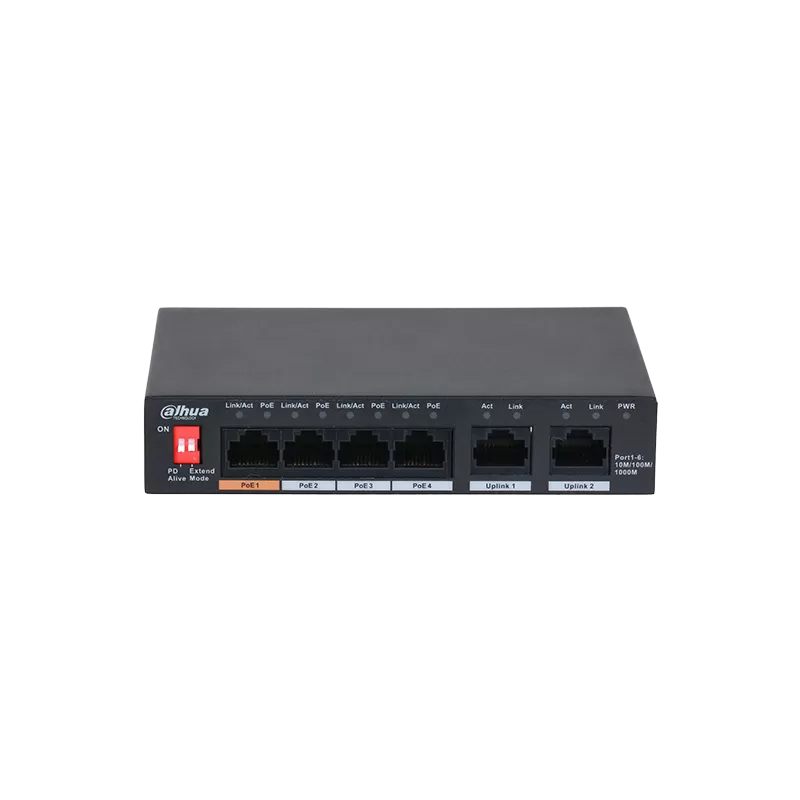

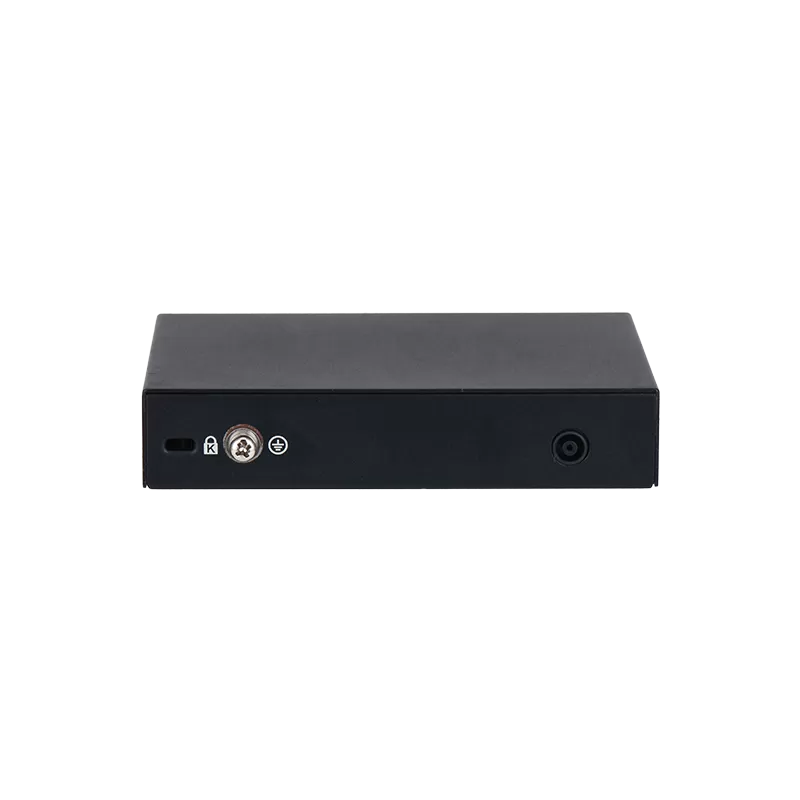

Dahua PFS3006-4GT-60-V2 6-Port Unmanaged Desktop Switch with 4-Port PoE

Technical information

• Genral
• Managed:

  No

• Gigabit:

  Yes

• PoE Supprot:

  Yes

• Hi-PoE:

  Port 1: 60W (orange port)

• Number of Ethernet Ports:

  4

• Mount Type:

  Wall mount or free standing

• Тype of use:

  Standard environment

• Detailed Specifications
• Ethernet Port Types:

  4 × RJ45 10/100/1000 Mbps (PoE), 2 × RJ45 10/100/1000 Mbps (uplink)

• PoE Power Consumption:

  Port 1≤ 60W (Hi-PoE), Port 2-4 ≤30W, Total≤60W

• PoE Pin Assignment:

  1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

• PoE Protocol:

  IEEE802.3af, IEEE802.3at, Hi-PoE

• PoE Watchdog:

  Yes

• Standards Compliance:

  IEEE802.3, IEEE802.3u, IEEE802.3x

• Switching Capacity:

  14Gbps

• Packet Forwarding Rate:

  8.928 Mpps

• Packet Buffer Memory:

  1Mbit

• MAC Table:

  2000

• Flow Control:

  Enable by default

• Power:

  53V DC

• Working Temperature:

  -10°C ~ 55°C

• Application Humidity:

  5% ~ 95%

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Lightning Protection:

  Common Mode 2KV Differential Mode 1KV

• Net Weight:

  0.3 kg

• Dimension (W × L × H):

  130mm × 85mm × 26mm

• Additional features
• Shipping package - DAHUA PFS3006-4GT-60-V2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  7.7 x 26.7 x 23.9; Weight: 0.95 kg.;
