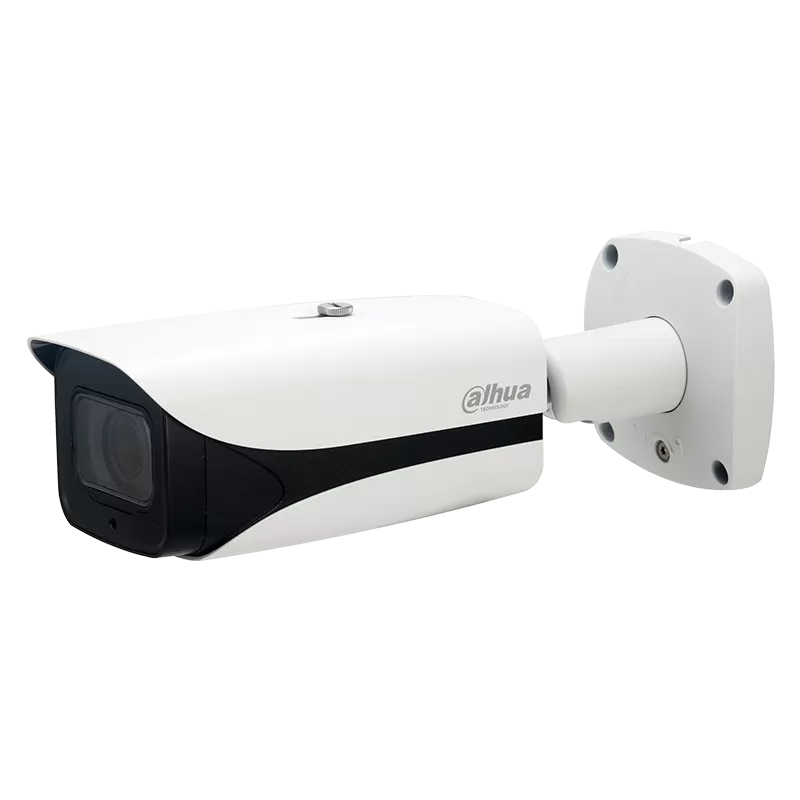

Dahua IPC-HFW5442E-ZE-2712 4MP IR Vari-focal Bullet WizMind Network Camera

Technical information

• General
• Case Type:

  Bullet

• Series:

  WizMind

• Color:

  White

• Image Sensor:

  1/1.8” 4 Megapixel Progressive CMOS

• RAM/ROM:

  1 GB/4 GB

• Resolution:

  2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)

• Resolution_surveillance:

  4 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.0007 lux@F1.8 (Color, 30 IRE) 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  60 meters

• IR On/Off Control:

  Zoom Prio/Manual/Auto

• IR LEDs:

  4

• Storage:

  FTP; SFTP; Micro SD card (512 GB); NAS

• Camera
• Lens
• Lens type:

  Varifocal

• Focal Length:

  2.7 mm to 12 mm

• Mount Type:

  Ф14

• Max Aperture:

  F1.8

• Angle of View:

  115° - 47°(H)

• Iris Type:

  Auto

• Close Focus Distance:

  1.5 m

• Video
• Frame Rate:

  Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  AI H.265; AI H.264 , Smart H.265+/ Smart H.264+

• Streaming Capability:

  4 streams

• Bit Rate:

  H.264: 32 kbps–16384 kbps;H.265: 12 kbps–11008 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR / SSA

• WDR:

  140dB

• White Balance:

  Auto/Natural/Street Lamp/Outdoor/Manual

• Gain Control:

  Auto / Manual

• Scene Self-adaptation:

  Yes

• Noise Reduction:

  3D DNR

• Smart light:

  Auto / Manual

• Flip:

  0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution and lower.)

• Mirror:

  Yes

• Privacy Masking:

  8 areas

• Region of Interest:

  Yes

• Electronic Image Stabilization (EIS):

  Yes

• Electronic Defog:

  Yes

• Perimeter Protection
• Performance:

  Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

• AI Search:

  Intelligent Search (Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.)

• AI Functions:

  SMD Plus (detection of vehicle/human) , Abandoned/missing object , Heat map , Face detection , People counting , Intrusion , Tripwire , Perimeter protection , Defog , EIS (Electronic image stabilization) , AcuPick , Metadata , Smart Sound Detection

• Face Recognition
• Metadata
• Face:

  Gender, age, expressions, glasses, face mask and beard.

• Vehicle:

  Vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling

• Human Body:

  Gender, top/bottom type and color, bag, hat and umbrella

• Non-motor Vehicle:

  Type, color, number of people, top type and color, hat.

• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Object Abandoned/Missing

• Smart Motion Detection Technology:

  Yes

• Advanced Intelligent Functions:

  Face Detection, People Counting, Heat Map

• Alarm Prompt:

  No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection

• Certification
• Certifications:

  CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Alarm Input:

  2 channel in: 5mA 3V–5V DC

• Alarm Output:

  1 channel out: 300mA 12V DC

• Audio Compression:

  G.711a; G.711Mu; PCM; G.726; G.723

• Built-in Microphone:

  Yes

• SD card:

  Micro SD up to 512GB

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

• Interoperability:

  ONVIF (Profile S/Profile G/Profile T); CGI

• Max. User Access:

  20

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  SmartPSS Lite; DSS; DMSS

• Compatible accessories:

  PFA156, PFA121

• Power
• Power Supply:

  12 VDC/PoE (802.3af)/ePoE

• Power Consumption:

  Max 9.8 W (12 VDC); 12.3 W (PoE)

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 30°C to + 60°C

• Protection:

  IP67

• Vandal Resistance:

  IK10

• Construction
• Casing:

  Metal+Plastic

• Dimensions:

  273.2 mm x 95 mm x 95 mm

• Net Weight:

  1.12 kg

• Gross Weight:

  1.66 kg

• Shipping package - DAHUA IPC-HFW5442E-ZE-2712-S3
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.5 x 9.5 x 27.32; Weight: 1.66 kg.;
