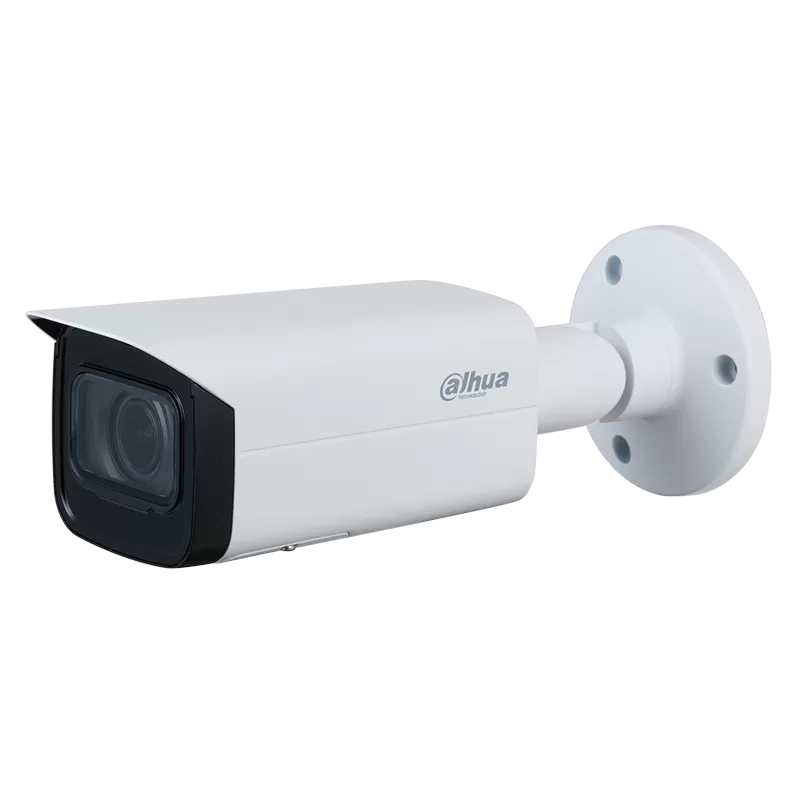

Dahua IPC-HFW2231T-ZS-S2 2MP WDR IR Bullet Network Camera

Technical information

• General
• Case Type:

  Bullet

• Series:

  Lite

• Color:

  White

• Image Sensor:

  1/2.8” 2 Megapixel Progressive CMOS

• RAM/ROM:

  128 MB/128 MB

• Resolution:

  1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

• Resolution_surveillance:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.002 Lux@F1.5

• Day/Night:

  Yes

• IR backlight to:

  60 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  4

• Storage:

  FTP; Micro SD card (support max. 256 G); NAS; SFTP

• Camera
• Pan/Tilt/Rotation:

  0°-360°(pan); 0°-180°(tilt); 0°-360° (rotation)

• Lens
• Lens type:

  Varifocal

• Focal Length:

  2.7 mm to 13.5 mm

• Mount Type:

  Ф14

• Max Aperture:

  F1.5

• Angle of View:

  109° - 28°(H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  0.8 m–0.8 m

• Video
• Frame Rate:

  2MP (1920 × 1080) @25/30 fps

• Record Rate:

  Main stream: 1920 × 1080 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps)704 × 480 (1 fps-30 fps)

• Video Compression:

  H.265; H.264; H.264B; MJPEG

• Streaming Capability:

  2 streams

• Bit Rate:

  H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D DNR

• Smart light:

  Yes

• Flip:

  0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.)

• Mirror:

  Yes

• Privacy Masking:

  4 areas

• Region of Interest:

  Yes

• Lowlight performance technology:

  Starlight

• Perimeter Protection
• AI Functions:

  Intrusion , Tripwire

• Face Recognition
• Metadata
• Artificial Intelligence
• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Certification
• Certifications:

  CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

• Port
• SD card:

  Micro SD up to 256 GB

• Network
• Compatible accessories:

  PFA130-E, PFA152-E

• Power
• Power Supply:

  12V DC/PoE (802.3af)

• Power Consumption:

  < 9.6W

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal

• Dimensions:

  244.1 mm × 90.4 mm × 90.4 mm

• Net Weight:

  0.86 kg

• Gross Weight:

  1.1 kg

• Shipping package - DAHUA IPC-HFW2231T-ZS-27135-S2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  14 x 16 x 16; Weight: 0.88 kg.;
