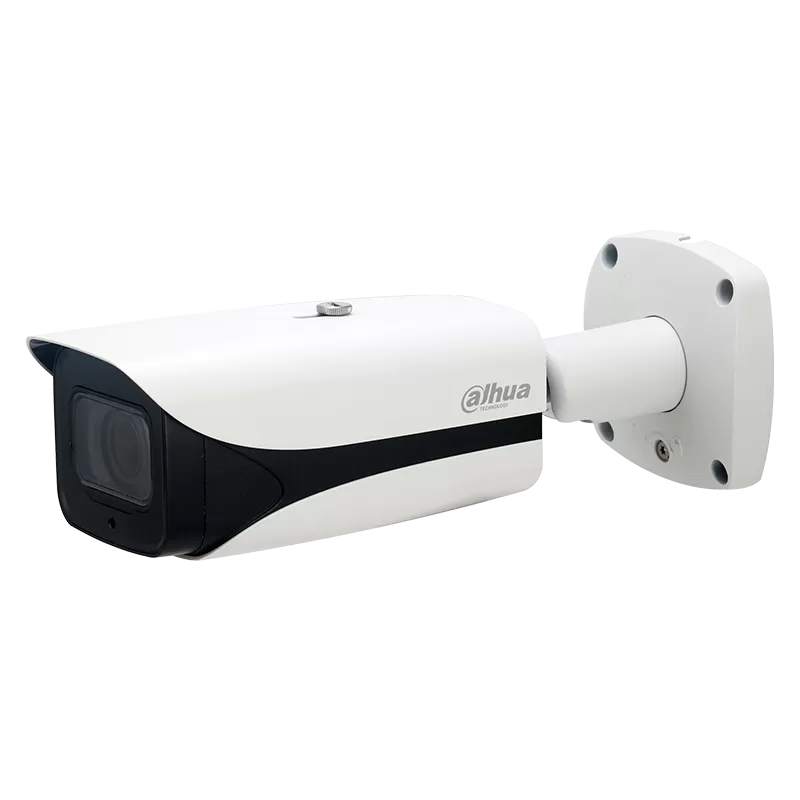

Dahua IPC-HFW5241E-ZE-27135 2MP IR Vari-focal Bullet WizMind Network Camera

Technical information

• General
• Case Type:

  Bullet

• Series:

  WizMind

• Color:

  White

• Image Sensor:

  1/2.8” 2 Megapixel Progressive STARVIS™ CMOS

• RAM/ROM:

  512 MB/128 MB

• Resolution:

  1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

• Resolution_surveillance:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.002 Lux@F1.5

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  50 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  4

• Storage:

  FTP; Micro SD card (support max. 256 G); NAS; SFTP

• Camera
• Lens
• Lens type:

  Varifocal

• Focal Length:

  2.7 mm to 13.5 mm

• Mount Type:

  Board-in

• Max Aperture:

  F1.5

• Angle of View:

  109° - 30°(H)

• Close Focus Distance:

  0.8 m

• Video
• Frame Rate:

  25/30fps@1080P(1920x1080)

• Record Rate:

  Main Stream: 1080P (1 fps–25/30 fps); Sub Stream: D1 (1 fps–25/30 fps); Sub Stream: D1 (1 fps–25/30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  3 streams

• Bit Rate:

  H.264: 32 Kbps–8192 Kbps; H.265: 19 Kbps–7424 Kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto/Natural/Street Lamp/Outdoor/Manual

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D DNR

• Smart light:

  Yes

• Flip:

  0°/90°/180°/270°

• Mirror:

  Off/On

• Privacy Masking:

  Off/On (4 area, rectangle)

• Region of Interest:

  Yes

• Electronic Image Stabilization (EIS):

  Yes

• Optical Defog:

  Yes

• Lowlight performance technology:

  Starlight

• Perimeter Protection
• Performance:

  Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering

• Object classification:

  Accurate detection of vehicle and human

• AI Functions:

  SMD Plus (detection of vehicle/human) , Heat map , Abandoned/missing object , Face detection , People counting , Perimeter protection , Defog , Tripwire , Intrusion

• Face Recognition
• Metadata
• Face:

  Support 6 kinds of face attributes extraction: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard

• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Object Abandoned/Missing

• Advanced Intelligent Functions:

  Face Detection (Support face image capture), Heat Map

• People counting:

  Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

• Trigger Events:

  Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly

• Certification
• Certifications:

  CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

• Port
• Audio Input:

  Audio Interface: 1/1 channel In/Out

• Audio Output:

  Audio Interface: 1/1 channel In/Out

• Alarm Input:

  2 channel in: 5mA 5V DC

• Alarm Output:

  1 channel out: 300mA 12V DC

• Audio Compression:

  G.711a, G.711Mu, G.726, AAC, G.723

• SD card:

  Micro SD up to 256 GB

• Network
• Mobile App:

  Android, iOS

• Compatible accessories:

  PFA121, PFA152-E

• Power
• Power Supply:

  DC 12V (±30%), PoE (802.3af) (Class 0), ePoE

• Power Consumption:

  < 10.3W

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 30°C to + 60°C

• Protection:

  IP67

• Vandal Resistance:

  IK10

• Construction
• Casing:

  Metal+Plastic

• Dimensions:

  273.2 mm x 95 mm x 95 mm

• Net Weight:

  1.11 kg

• Gross Weight:

  1.51 kg

• Shipping package - DAHUA IPC-HFW5241E-ZE-27135
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.5 x 9.5 x 27.32; Weight: 1.51 kg.;
