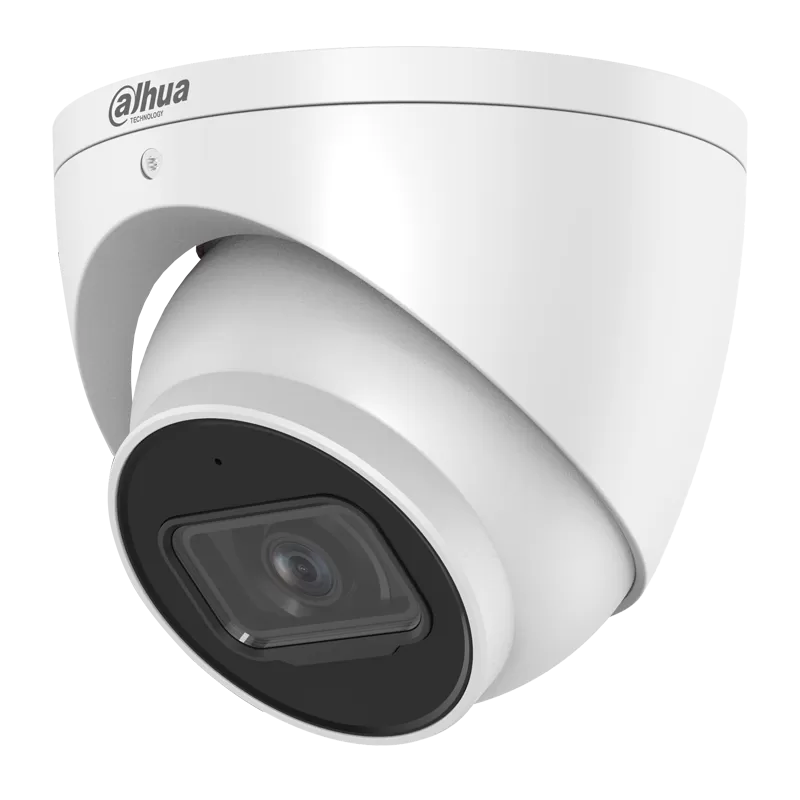

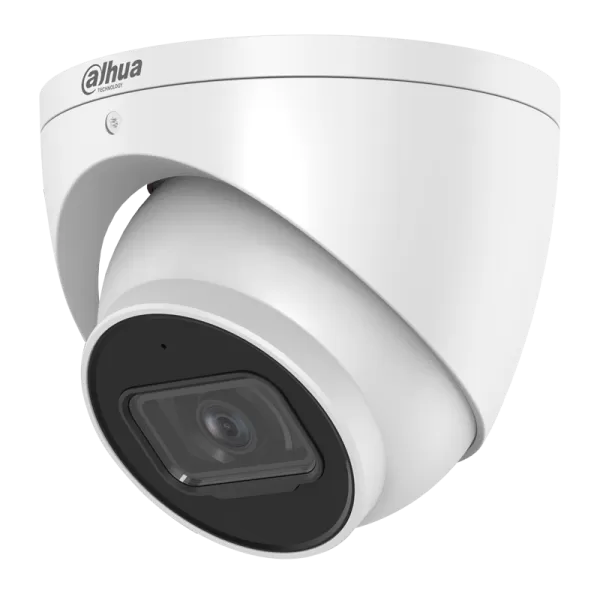

Dahua IPC-HDW5442TM-ASE-0280B 4MP WDR IR Eyeball WizMind Network Camera

Technical information

• General
• Case Type:

  Eyeball

• Series:

  WizMind

• Color:

  White

• Image Sensor:

  1/1.8” 4 Megapixel Progressive CMOS

• RAM/ROM:

  512 MB/128 MB

• Resolution:

  2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

• Resolution_surveillance:

  4 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.002 Lux@F1.6

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  40 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Storage:

  FTP; SFTP; Micro SD card (256 G); NAS

• Camera
• Pan/Tilt/Rotation:

  0° - 360° (pan), 0° - 78° (tilt), 0°- 360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  Board-in

• Max Aperture:

  F1.6

• Angle of View:

  113° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  1.3 m

• Video
• Frame Rate:

  Main Stream: 2688 × 1520 (1 fps–25/30 fps) 2560 × 1440 (1 fps–25/30 fps) 1920 × 1080 (1 fps–50/60 fps) Sub Stream: D1 (1 fps–25/30 fps) D1 (1 fps–50/60 fps) Third Stream: 1080P (1 fps–16 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  3 streams

• Bit Rate:

  H.264: 32 Kbps–8192 Kbps; H.265: 19 Kbps–8192 Kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  140dB

• White Balance:

  Auto/Natural/Street Lamp/Outdoor/Manual

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D DNR

• Smart light:

  Yes

• Flip:

  0°/90°/180°/270°

• Mirror:

  Off/On

• Privacy Masking:

  Off/On (4 area, rectangle)

• Region of Interest:

  Yes

• Electronic Defog:

  Yes

• Perimeter Protection
• Performance:

  Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.

• AI Functions:

  Defog , Privacy masking , ROI (Region of interest) , SMD Plus (detection of vehicle/human) , Heat map , Abandoned/missing object , Intrusion , Tripwire , Face detection , People counting , Perimeter protection

• Face Recognition
• Performance:

  Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting

• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Advanced Intelligent Functions:

  Abandoned object; missing object; heat map

• People counting:

  Support the counting of enter number, leave number, and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm

• Trigger Events:

  Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly

• Certification
• Certifications:

  CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

• Port
• Audio Compression:

  G.711a, G.711Mu, G.726, AAC, G.723

• Built-in Microphone:

  Yes

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 256 GB

• Network
• Ethernet:

  RJ-45 (10/100 Base-T)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

• Interoperability:

  ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

• Max. User Access:

  20

• Web Viewer:

  IE, Chrome, Firefox, Safari

• Management Software:

  Smart PSS, DSS, DMSS

• Compatible accessories:

  PFA130-E, PFB204W, PFA152-E, PFA151, PFA106, PFB220C

• Power
• Power Supply:

  DC 12V (±30%), PoE (802.3af)

• Power Consumption:

  < 7.2W

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal

• Dimensions:

  Φ106 mm x 99.2 mm

• Net Weight:

  0.55 kg

• Gross Weight:

  0.71 kg

• Shipping package - DAHUA IPC-HDW5442TM-ASE-0280B
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.92 x 10.6 x 10.6; Weight: 0.71 kg.;
