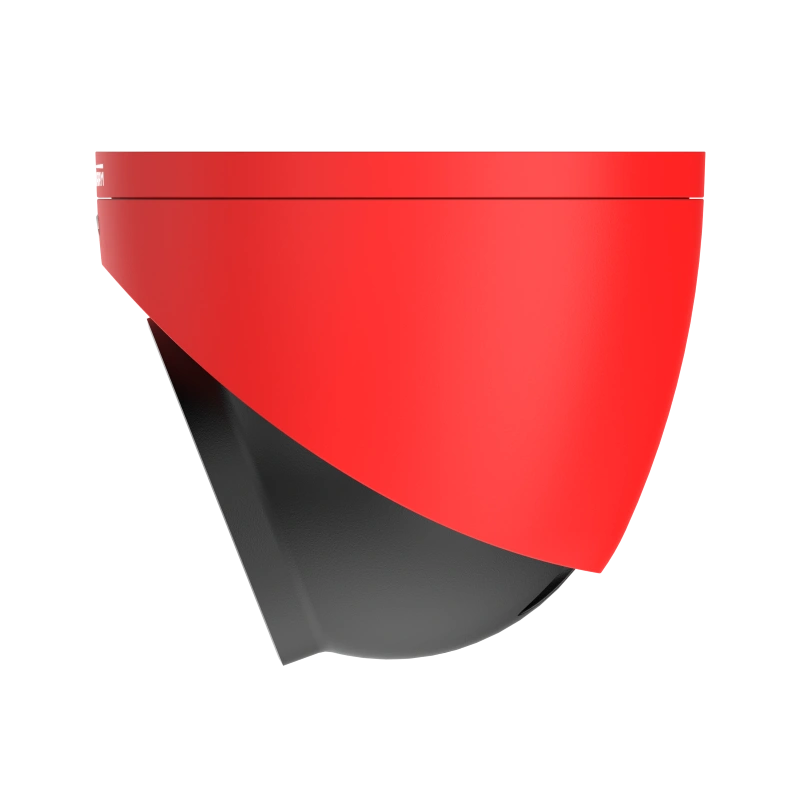

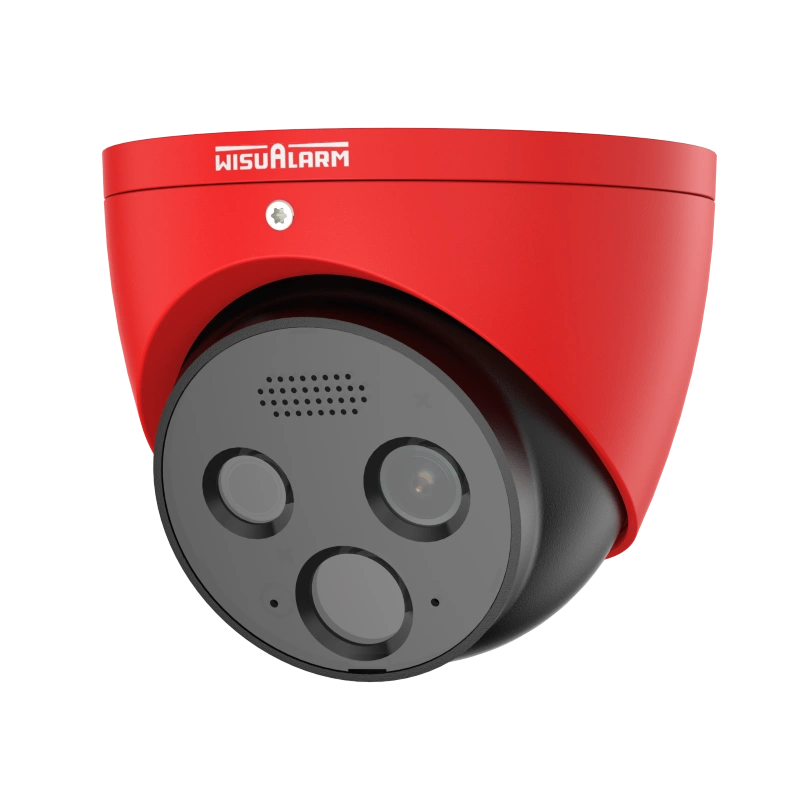

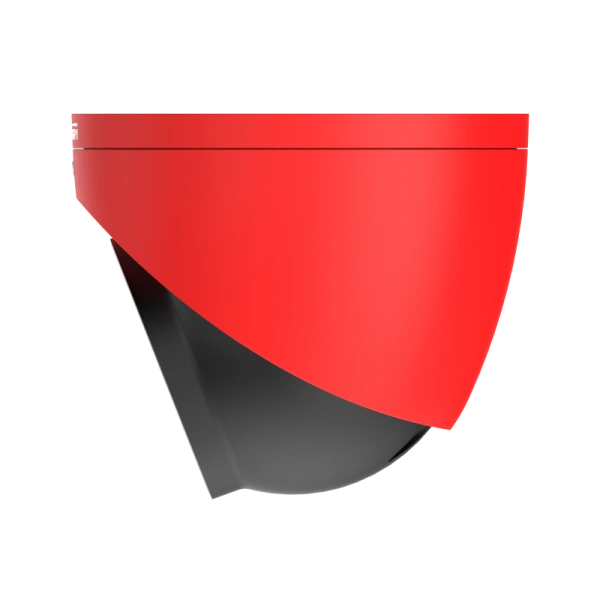

Dahua HY-FT431LDP-TD1F4-MB Flame Detection Network Camera

Technical information

• General
• Case Type:

  Eyeball

• Series:

  Thermal

• Color:

  Red

• Image Sensor:

  Thermal Camera: Vanadium Oxide Uncooled FPA + Visible Camera: 1/2.7” 4 Megapixel Progressive

• Resolution:

  4M (2688 × 1520)

• Resolution_surveillance:

  4 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  Color: 0.0052 lux B/W: 0.0028 lux 0 lux (IR on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  15 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  1

• Storage:

  FTP; NAS; SFTP

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 55dB

• Thermal Camera Specific Characteristics:

  Pixel Pitch: 17 μm, Spectral Range: 8 μm–14 μm; Sensitivity (NETD): < 60mK (@f/1.0, 300K); Color Palettes: 12; Temperature Range: -10°C to +200°C

• Lens
• Lens type:

  Fixed

• Focal Length:

  Thermal Camera 1.2 mm + Visible Camera 4 mm

• Max Aperture:

  Thermal Camera F1.1 + Visible Camera F1.6

• Angle of View:

  Thermal Camera H: 90° + Visible Camera H: 85°

• Close Focus Distance:

  Thermal Camera: 0.5 m + Visible Camera: 1 m

• Video
• Frame Rate:

  Main stream: 1 fps–25 fps adjustable, 25 fps by default Sub stream: 1 fps–25 fps adjustable, 25 fps by default

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG

• Streaming Capability:

  2 streams

• Bandwidth:

  100 Mbps incoming bandwidth

• BLC:

  BLC / HLC / WDR

• WDR:

  DWDR

• White Balance:

  Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp

• Gain Control:

  Auto / Manual

• Noise Reduction:

  2D NR/3D NR

• Flip:

  0°/90°/180°/270°

• Privacy Masking:

  4 areas

• Perimeter Protection
• AI Functions:

  Privacy masking , Fire detection

• Face Recognition
• Metadata
• Artificial Intelligence
• Certification
• Certifications:

  CE

• Port
• Audio Input:

  1 channel: built-in mic

• Audio Output:

  1 channel (built-in speaker)

• Alarm Input:

  1 channel in: 5mA 3V–5V DC

• Alarm Output:

  1 channel out: 300mA 12V DC

• Audio Compression:

  MPEG2-Layer2; G.711a; G.711mu; AAC; PCM; G.722.1; G.726

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• Siren:

  Yes, 70dB

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Network Function:

  HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

• Interoperability:

  ONVIF; GB/T28181; CGI; Imou

• Max. User Access:

  10

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Power
• Power Supply:

  12 VDC (±30%); PoE (802.3af)

• Power Consumption:

  < 3W

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 20°C to + 70°C

• Protection:

  IP66

• Construction
• Dimensions:

  Φ109.9 mm × 90.1 mm

• Net Weight:

  0.35 kg

• Gross Weight:

  0.5 kg

• Shipping package - DAHUA HY-FT431LDP-TD1F4-MB
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.01 x 10.99 x 10.99; Weight: 0.42 kg.;
