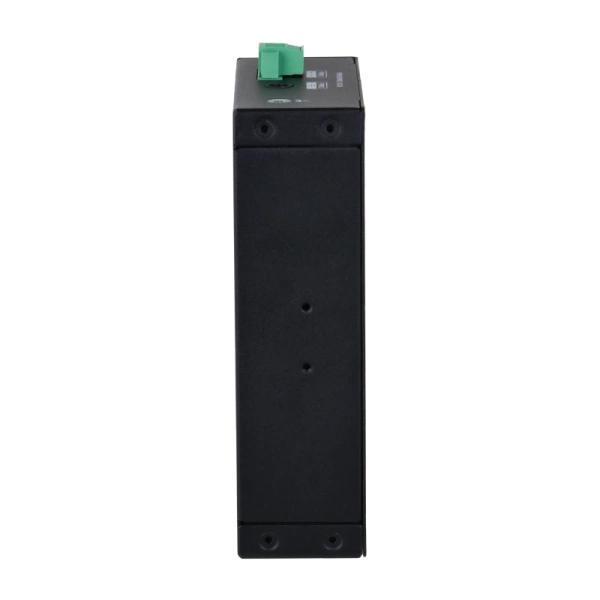

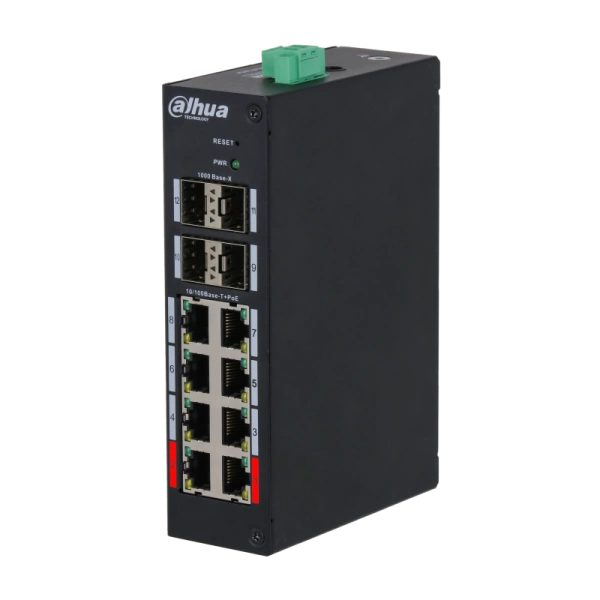

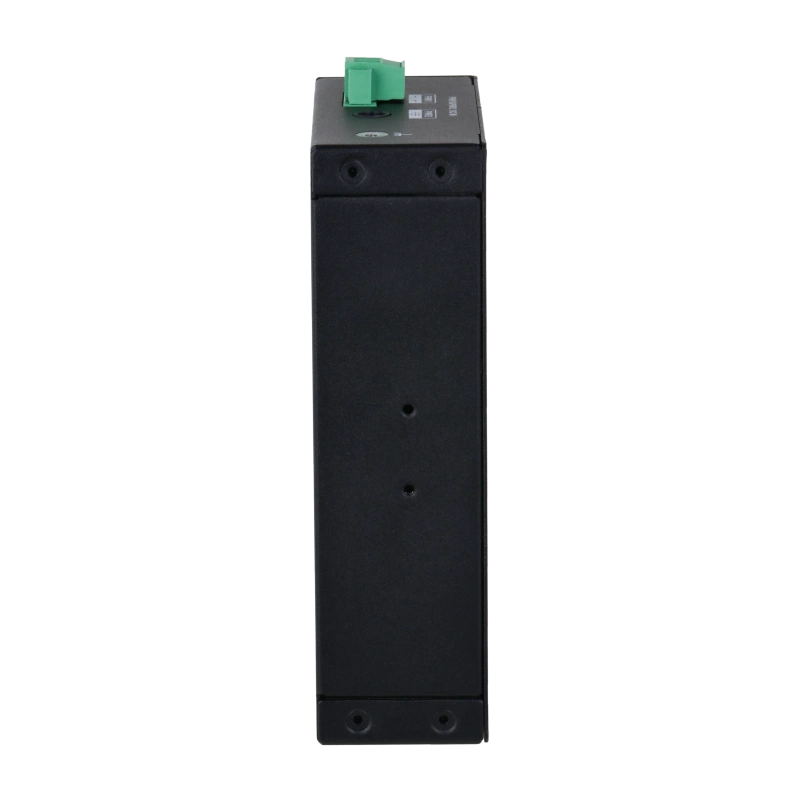

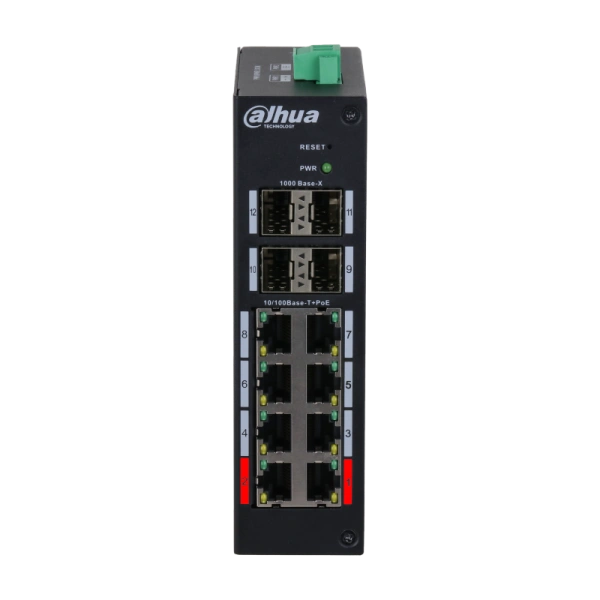

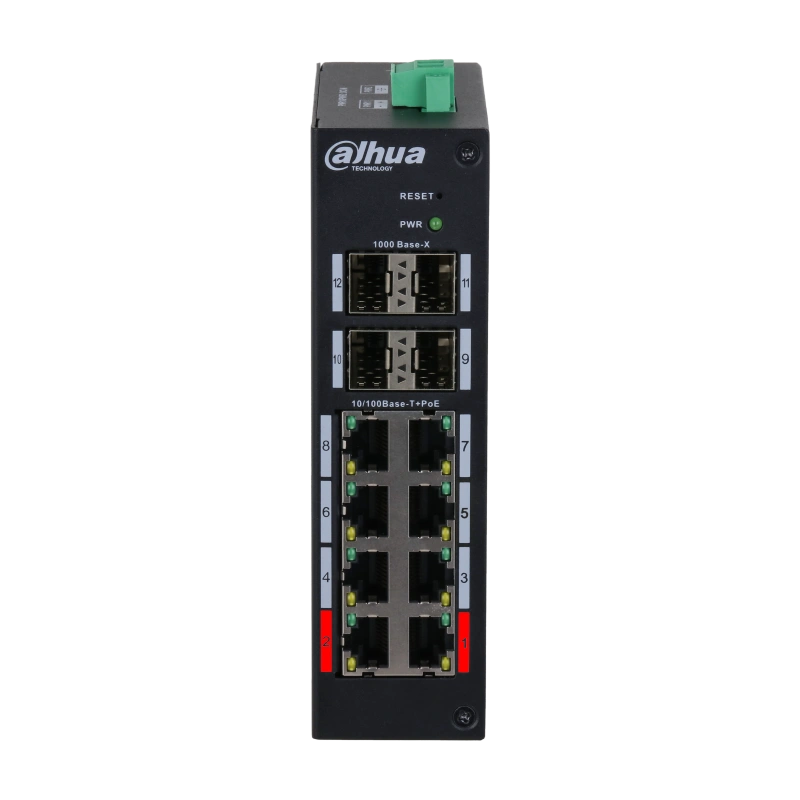

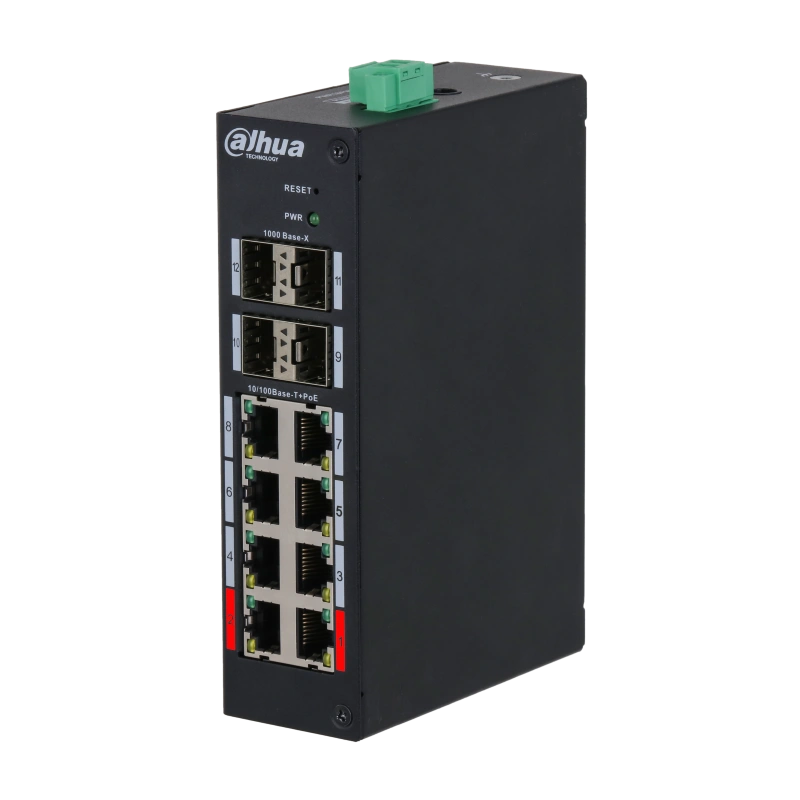

Dahua HS4412-8ET-120 12-Port Hardened Managed Switch with 8-Port PoE

Technical information

• Genral
• Managed:

  Yes

• Layer:

  Layer 2

• Gigabit:

  No

• PoE Supprot:

  Yes

• Hi-PoE:

  Port 1-2 ≤ 90W

• Number of Ethernet Ports:

  8

• Mount Type:

  DIN rail or free standing

• Тype of use:

  Hardened

• Detailed Specifications
• Ethernet Port Types:

  8 × RJ45 10/100Mbps, 4 × SFP 1000Mbps (Uplink)

• Fiber ports:

  4*1000 Mbps

• PoE Power Consumption:

  Port 1-2: ≤90W, Port 3-8 ≤30W, Total ≤120W

• PoE Pin Assignment:

  1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

• PoE Protocol:

  IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

• Standards Compliance:

  IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3az

• Switching Capacity:

  9.6G

• Packet Forwarding Rate:

  7.1424 Mpps

• Packet Buffer Memory:

  4.1Mb

• MAC Table:

  8000

• Flow Control:

  Support flow control based on IEEE802.3X

• Power:

  DC 48~57V

• Working Temperature:

  -30°C ~ 65°C

• Application Humidity:

  10% ~ 95% (noncondensing)

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Lightning Protection:

  Common Mode 4KV Differential Mode 2KV

• Dimension (W × L × H):

  152.9mm × 110.4mm × 42mm

• Additional features
• VLAN:

  Yes

• Spanning Tree:

  STP/RSTP/ERPS

• Port Aggregation:

  Link aggregation

• DHCP:

  Support DHCP client

• PoE management:

  Power consumption management

• Shipping package - DAHUA HS4412-8ET-120
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  8.6 x 24.3 x 25.4; Weight: 1.37 kg.;
