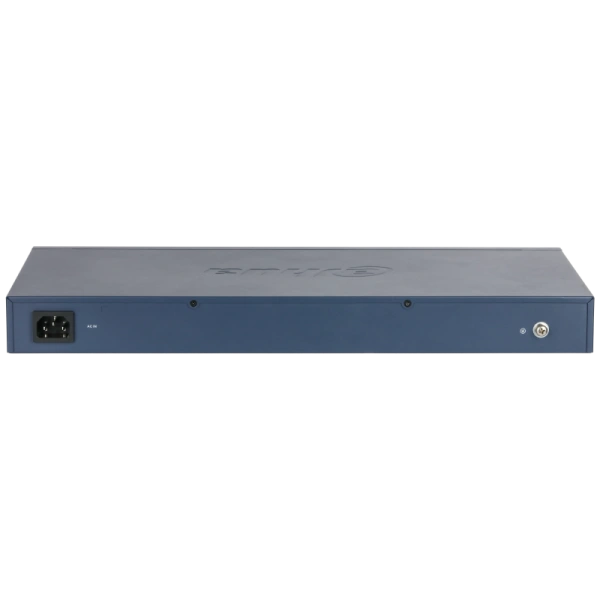

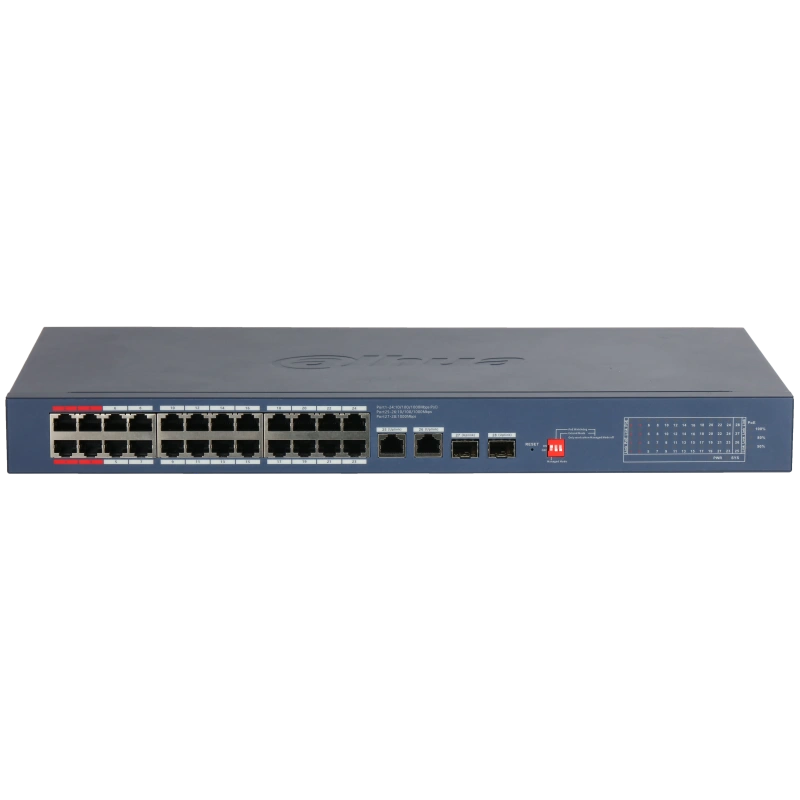

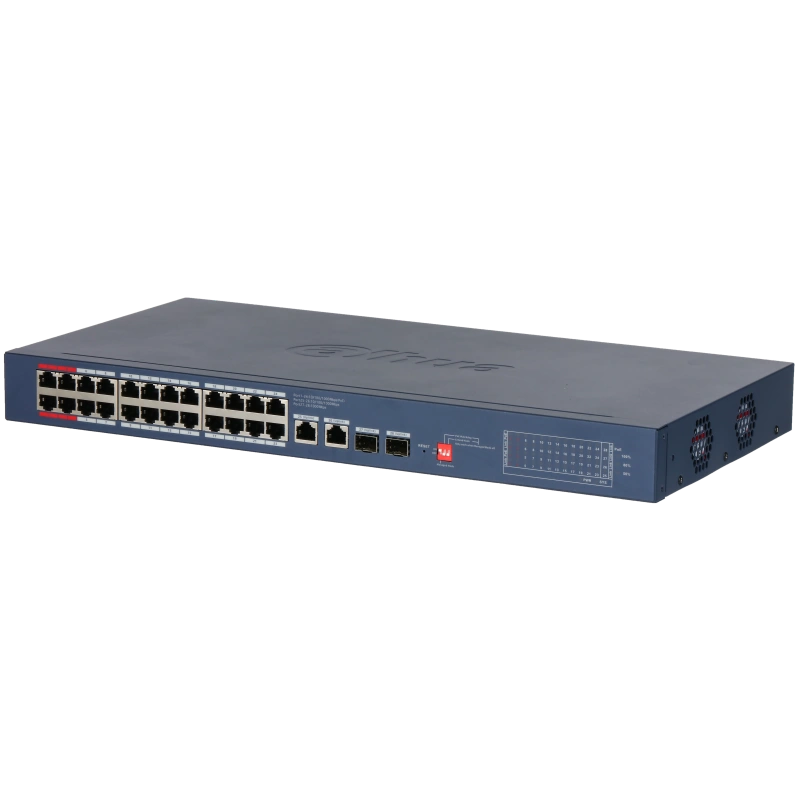

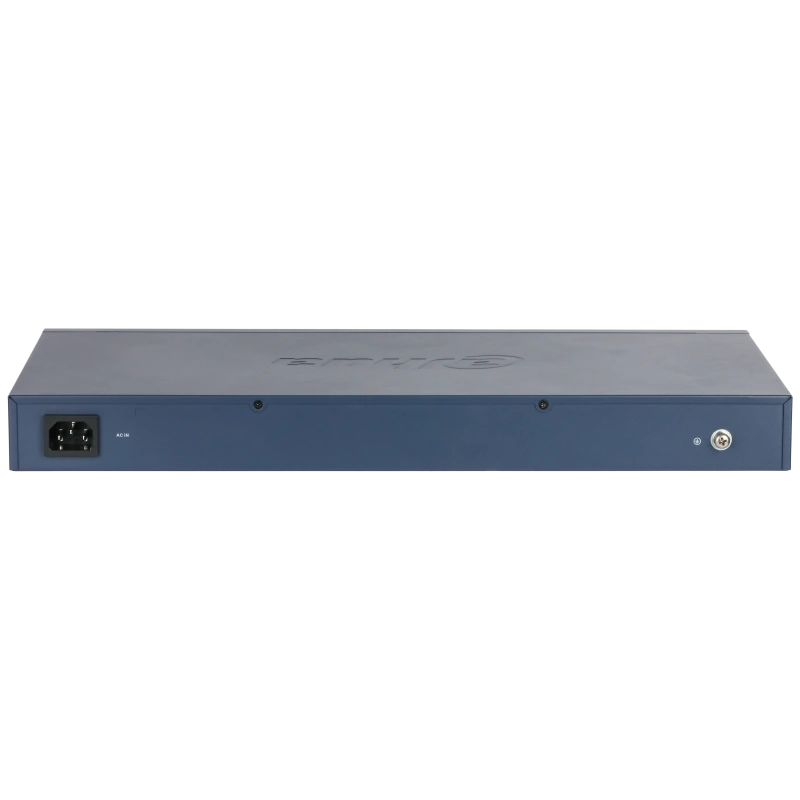

Dahua CS4228-24GT-240 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE

Technical information

• Genral
• Managed:

  Yes

• Layer:

  Layer 2

• Gigabit:

  Yes

• PoE Supprot:

  Yes

• Hi-PoE:

  Ports 1-4: 90W

• Number of Ethernet Ports:

  24

• Mount Type:

  Rack mount or free standing

• Тype of use:

  Standard environment

• Detailed Specifications
• Ethernet Port Types:

  24 × RJ-45 10/100/1000 Mbps (PoE); 2 × RJ-45 10/100/1000 Mbps (Uplink); 2 × SFP 1000 Mbps (Uplink)

• Fiber ports:

  2*1000 Mbps

• PoE Power Consumption:

  Port 1-4 ≤ 90 W, Port 5-24 ≤ 30 W, total ≤ 240 W

• PoE Pin Assignment:

  Port 1-2: 1,2,4,5 (V+),3,6,7,8 (V-) Port 3-16: 1,2, (V+), 3,6, (V-)

• PoE Protocol:

  IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

• PoE Watchdog:

  Yes

• Standards Compliance:

  IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad

• Switching Capacity:

  56 Gbps

• Packet Forwarding Rate:

  41.664 Mpps

• Packet Buffer Memory:

  4Mbit

• MAC Table:

  8000

• Flow Control:

  Support flow control based on IEEE802.3X

• Power:

  100–240 VAC, 47–63 Hz, max 4 A

• Working Temperature:

  -10°C ~ 55°C

• Application Humidity:

  10% ~ 90% (noncondensing)

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Lightning Protection:

  Common Mode 6KV Differential Mode 1KV

• Net Weight:

  2.55 kg

• Dimension (W × L × H):

  440mm × 228.81mm × 43.65mm

• Additional features
• VLAN:

  802.1Q

• Port Aggregation:

  Static link aggregation

• Mirroring:

  Local Port Mirroring, N:1 Mirroring

• DHCP:

  Support DHCP client

• Security Features:

  Port isolation

• System Management:

  Web Management, Cloud Management, Logs, Fault Alarm

• PoE management:

  Power consumption management, Power on and power off, Power down for overload

• Shipping package - DAHUA CS4228-24GT-240
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9 x 34.2 x 54; Weight: 3.26 kg.;
