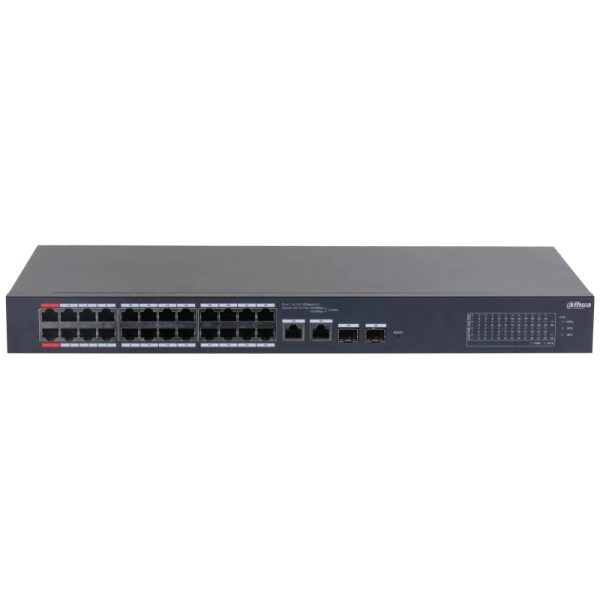

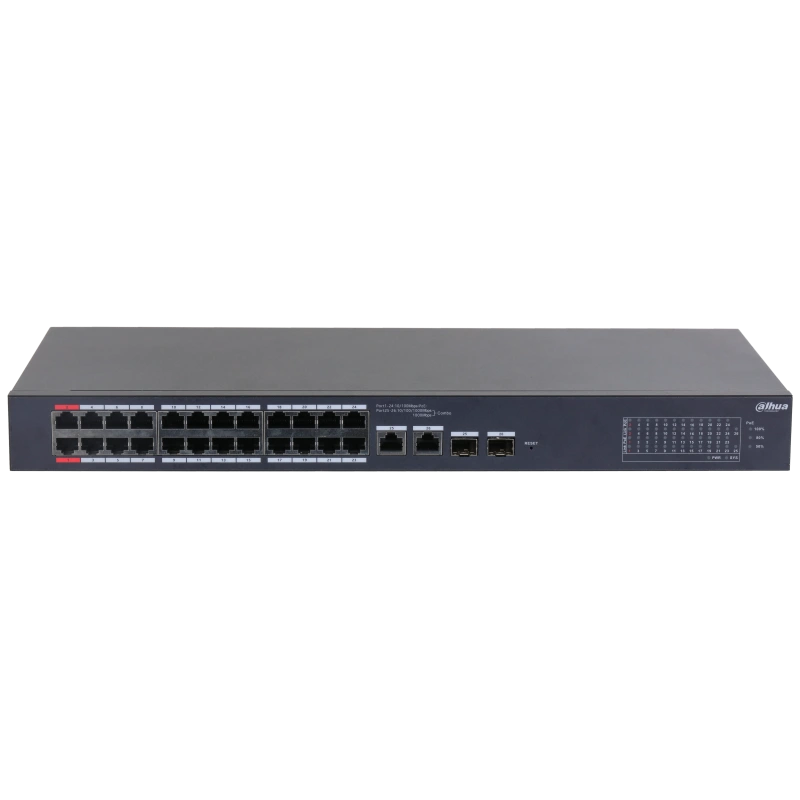

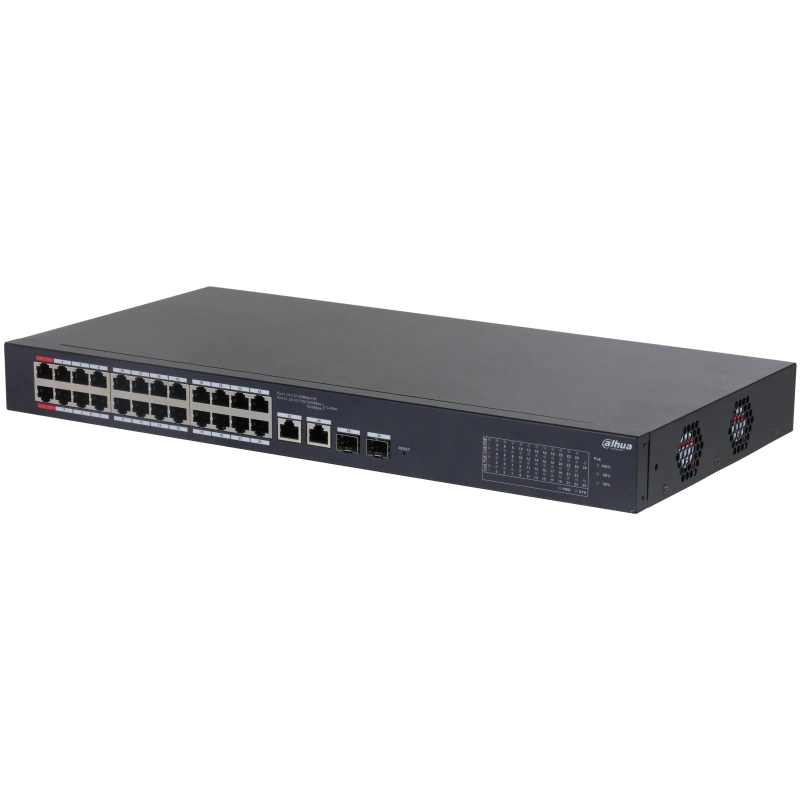

Dahua CS4226-24ET-240 26-Port Cloud Managed Desktop Switch with 24-Port PoE

Technical information

• Genral
• Managed:

  Yes

• Layer:

  Layer 2

• Gigabit:

  No

• PoE Supprot:

  Yes

• Hi-PoE:

  Port 1-2 ≤ 90W

• Number of Ethernet Ports:

  24

• Mount Type:

  Rack mount or free standing

• Detailed Specifications
• Ethernet Port Types:

  24 × RJ-45 10/100 Mbps (PoE); 2 × RJ-45 10/100/1000 Mbps (combo); 2 × SFP 1000 Mbps (combo)

• Fiber ports:

  2*1000 Mbps

• PoE Power Consumption:

  Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 240 W

• PoE Pin Assignment:

  1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

• PoE Protocol:

  IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

• Standards Compliance:

  IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z

• Switching Capacity:

  8.8G

• Packet Forwarding Rate:

  6.55Mpps

• Packet Buffer Memory:

  4Mb

• MAC Table:

  8000

• Application Humidity:

  5% ~ 95% (noncondensing)

• Power:

  100-240 VDC, 47-63 Hz, max 4 A

• Lightning Protection:

  Common Mode 4KV Differential Mode 2KV

• Working Temperature:

  -10°C ~ 55°C

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Net Weight:

  2.47 kg

• Dimension (W × L × H):

  440mm × 220mm × 44mm

• Additional features
• System Management:

  WEB, APP

• PoE management:

  Power consumption management

• Shipping package - DAHUA CS4226-24ET-240
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9 x 34.2 x 54; Weight: 3.12 kg.;
