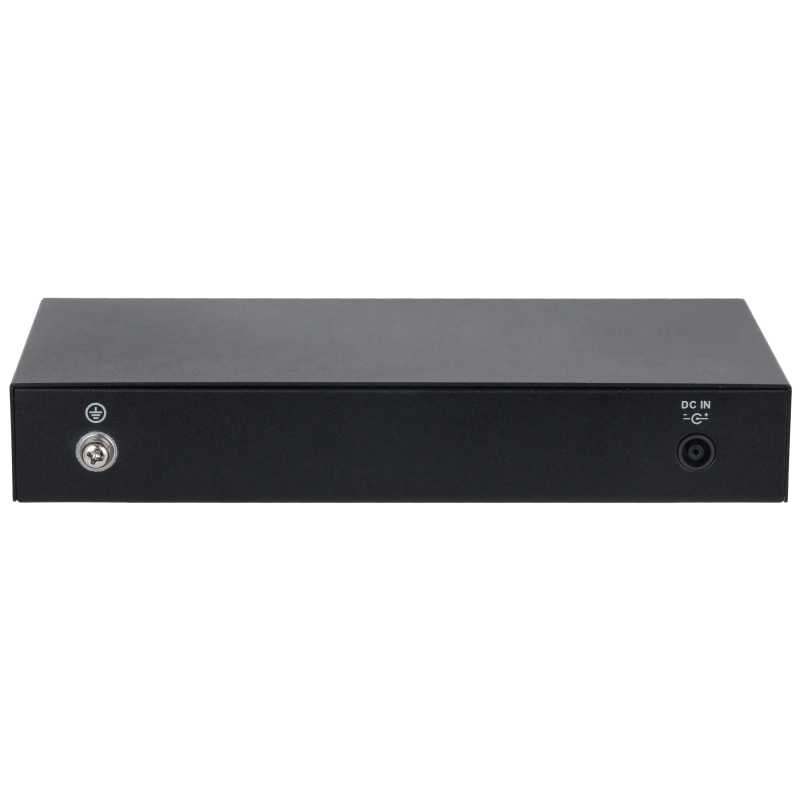

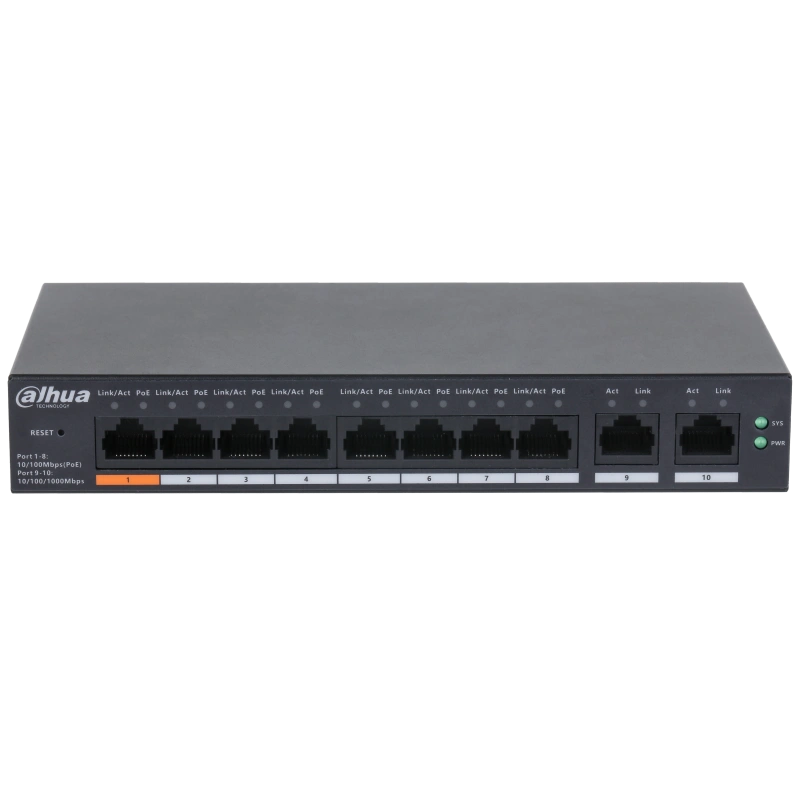

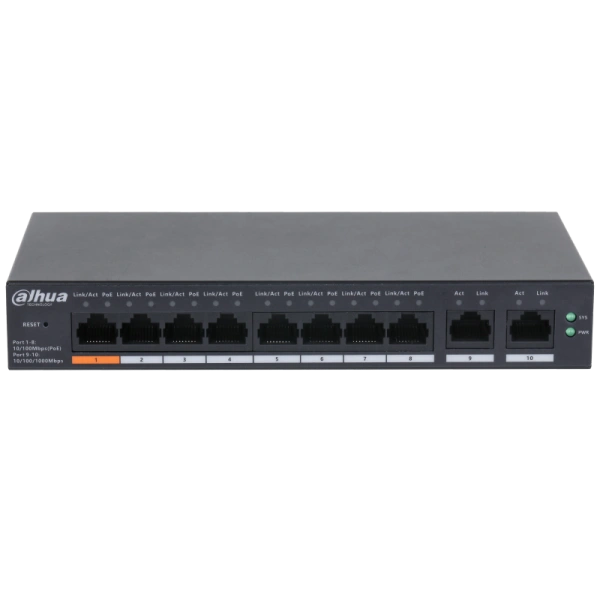

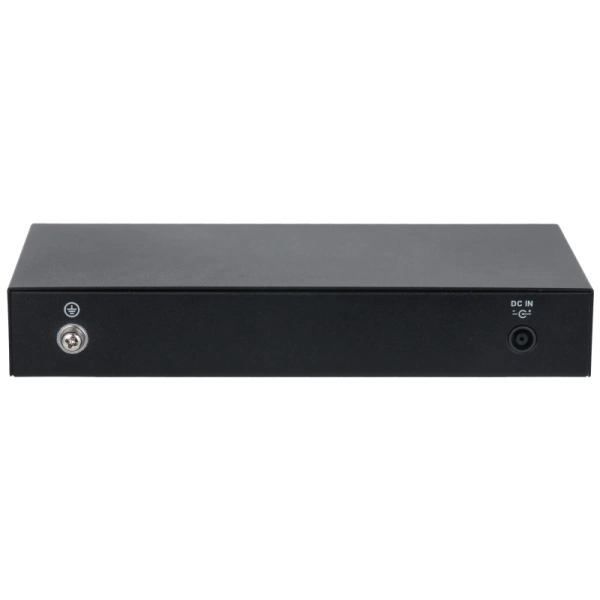

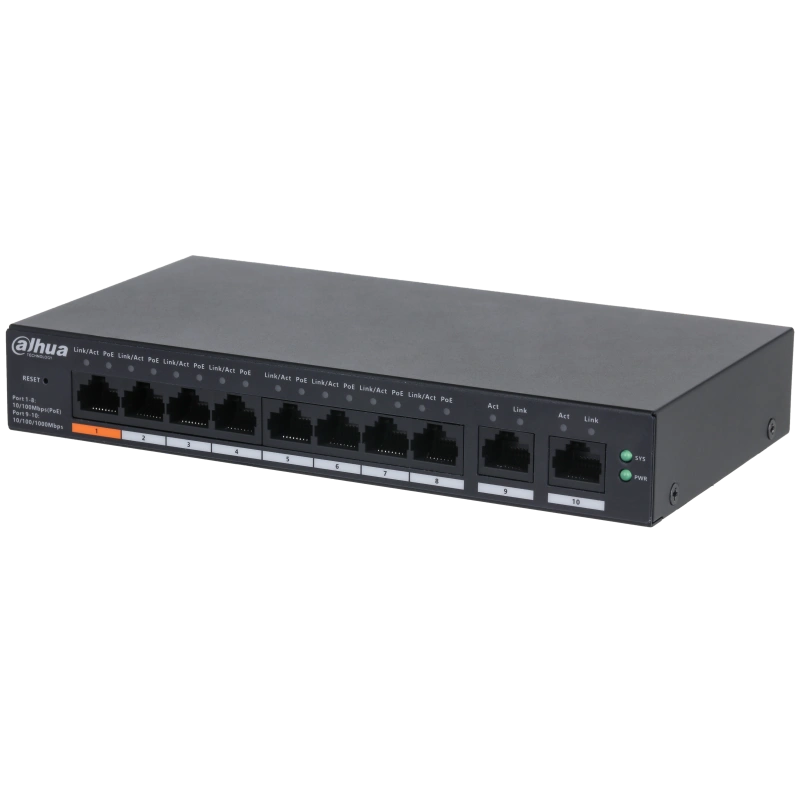

Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch with 8-Port PoE

Technical information

• Genral
• Managed:

  Yes

• Layer:

  Layer 2

• Gigabit:

  No

• PoE Supprot:

  Yes

• Hi-PoE:

  Port 1: 60W (orange port)

• Number of Ethernet Ports:

  8

• Mount Type:

  Wall mount or free standing

• Тype of use:

  Standard environment

• Detailed Specifications
• Ethernet Port Types:

  8 × RJ-45 10/100 Mbps (PoE); 2 × RJ-45 10/100/1000 Mbps (uplink)

• PoE Power Consumption:

  Port 1 ≤ 60 W (Hi-PoE), Port 2-8 ≤ 30 W , Total ≤ 60 W

• PoE Pin Assignment:

  1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

• PoE Protocol:

  IEEE802.3af; IEEE802.3at; Hi-PoE

• Standards Compliance:

  IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab

• Switching Capacity:

  4.8Gbps

• Packet Forwarding Rate:

  3.57Mpps

• Packet Buffer Memory:

  4Mbit

• MAC Table:

  8000

• Flow Control:

  Support flow control based on IEEE802.3X

• Power:

  53V DC, 1.226A

• Working Temperature:

  -10°C ~ 55°C

• Application Humidity:

  5% ~ 95% (noncondensing)

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Lightning Protection:

  Common Mode 4KV Differential Mode 2KV

• Net Weight:

  0.28 kg

• Dimension (W × L × H):

  130mm × 90mm × 26mm

• Additional features
• VLAN:

  Port-based VLAN

• DHCP:

  Support DHCP client

• System Management:

  WEB, APP

• PoE management:

  Power consumption management

• Shipping package - DAHUA CS4010-8ET-60
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  8.7 x 24.4 x 25.6; Weight: 1.12 kg.;
