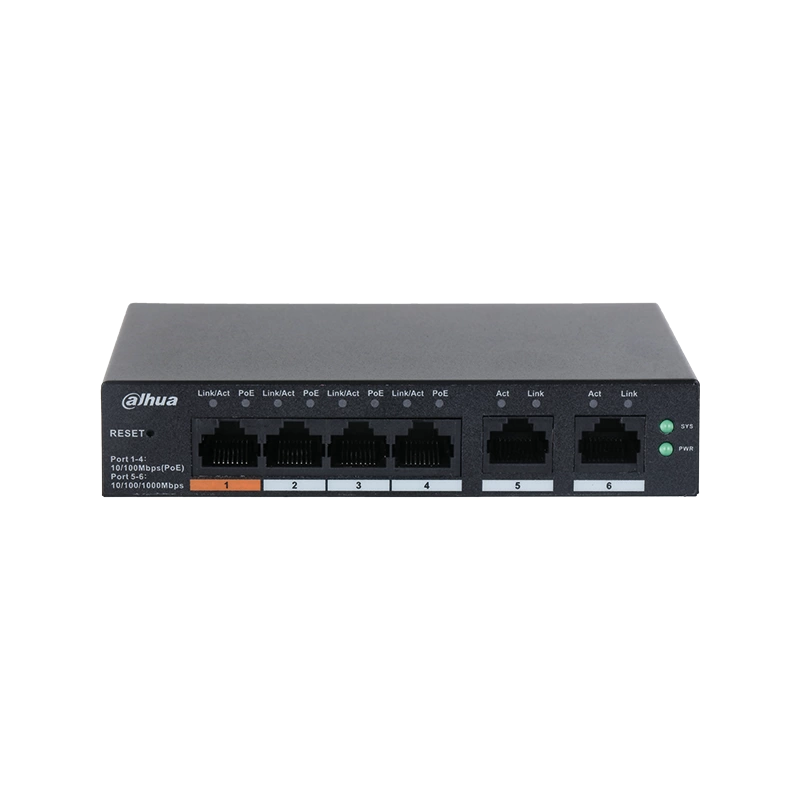

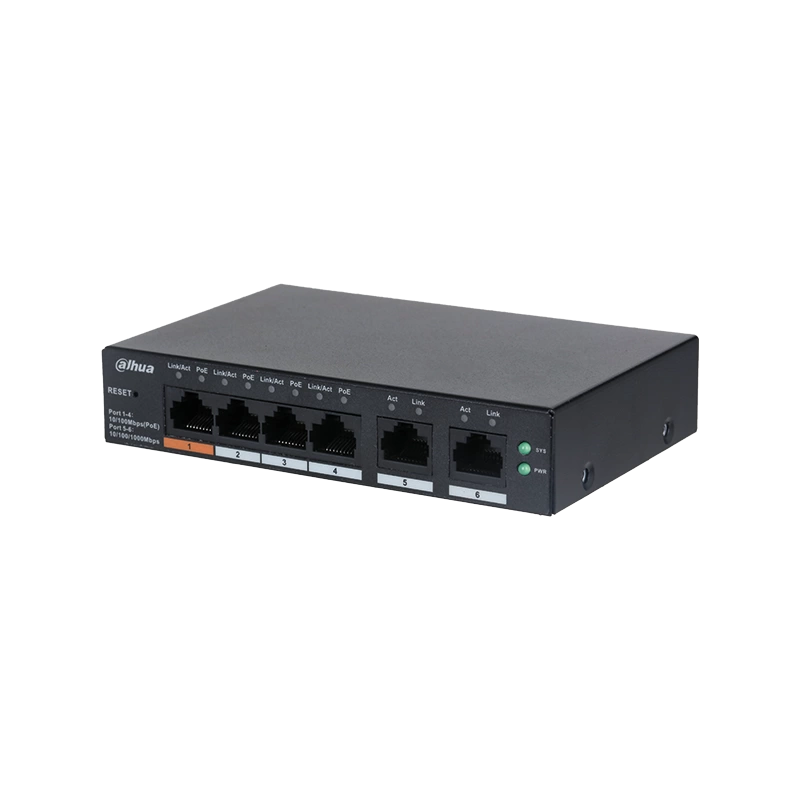

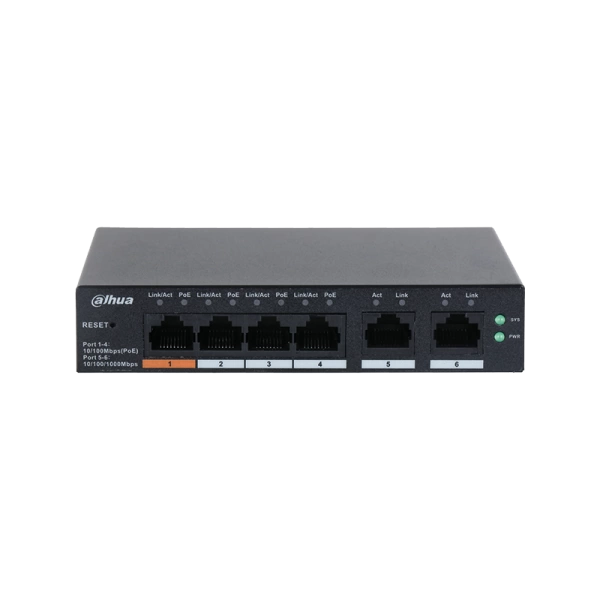

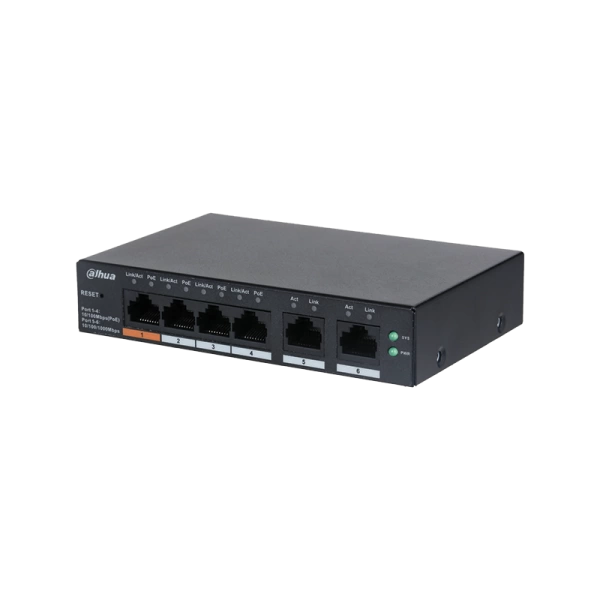

Dahua CS4006-4ET-60 6-Port Cloud Managed Desktop Switch with 4-Port PoE

Technical information

• Genral
• Managed:

  Yes

• Layer:

  Layer 2

• PoE Supprot:

  Yes

• Hi-PoE:

  Port 1: 60W (orange port)

• Number of Ethernet Ports:

  4

• Mount Type:

  Wall mount or free standing

• Detailed Specifications
• Ethernet Port Types:

  4 × RJ-45 10/100 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)

• PoE Power Consumption:

  Port 1 ≤ 60 W (Hi-PoE), Port 2-4 ≤ 30 W , Total ≤ 60 W

• PoE Pin Assignment:

  1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

• PoE Protocol:

  IEEE802.3af; IEEE802.3at; Hi-PoE

• Standards Compliance:

  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x

• Switching Capacity:

  4.8Gbps

• Packet Forwarding Rate:

  3.57Mpps

• Packet Buffer Memory:

  4Mbit

• MAC Table:

  8000

• Power:

  53V DC, 1.226A

• Working Temperature:

  -10°C ~ 55°C

• Application Humidity:

  5% ~ 95% (noncondensing)

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Lightning Protection:

  Common Mode 4KV Differential Mode 2KV

• Net Weight:

  0.28 kg

• Dimension (W × L × H):

  130mm × 90mm × 26mm

• Additional features
• Shipping package - DAHUA CS4006-4ET-60
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  7.6 x 23.8 x 26.5; Weight: 0.92 kg.;
