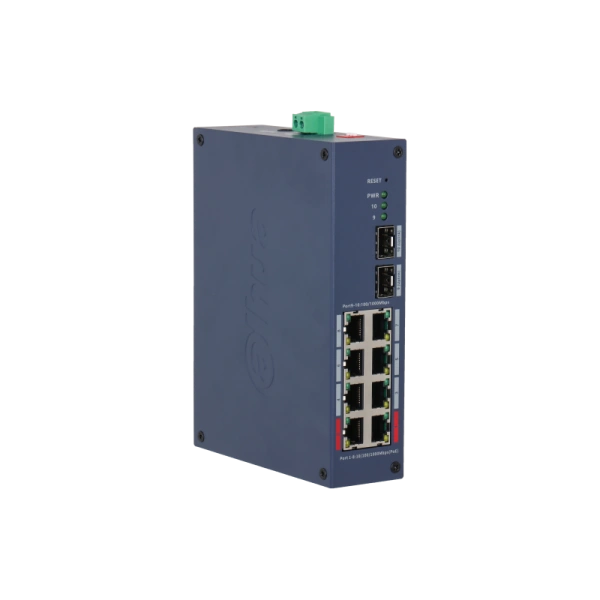

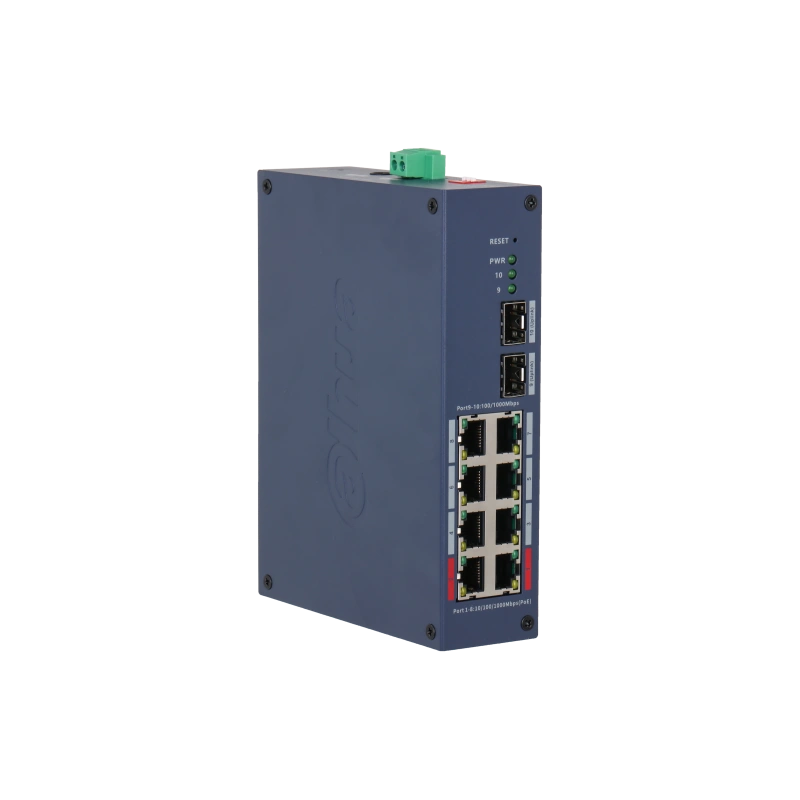

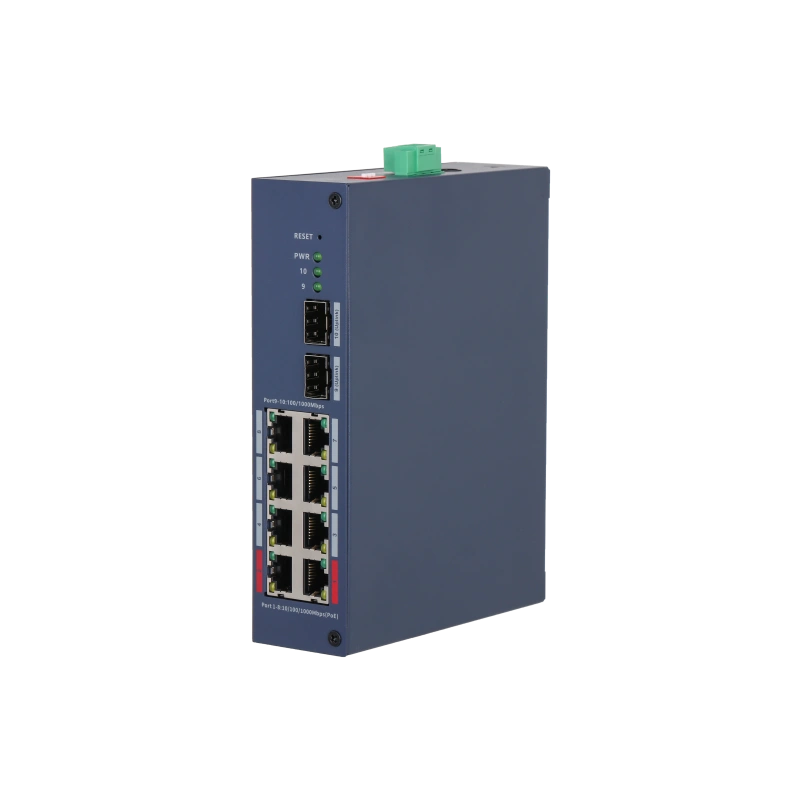

Dahua CHS4210-8GT-110 10-Port Cloud Managed Hardened Gigabit Switch with 8-Port PoE

Technical information

• Genral
• Managed:

  Yes

• Layer:

  Layer 2

• Gigabit:

  Yes

• PoE Supprot:

  Yes

• Hi-PoE:

  Port 1-2 ≤ 90W

• Number of Ethernet Ports:

  8

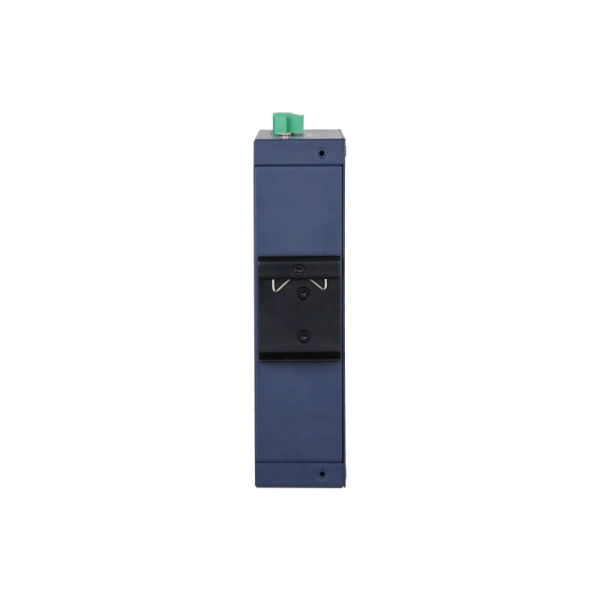

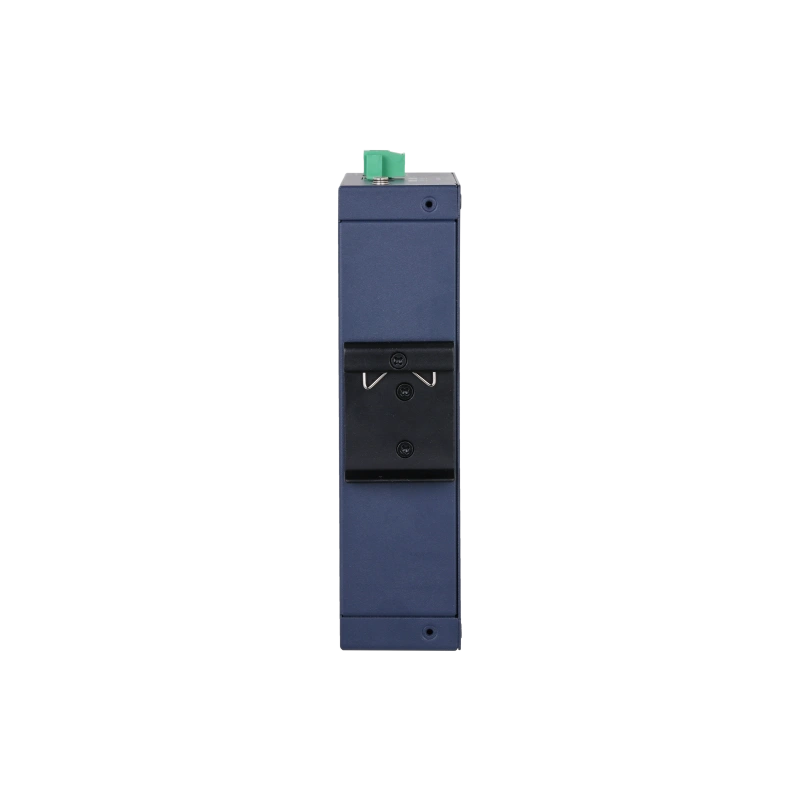

• Mount Type:

  DIN rail or free standing

• Тype of use:

  Hardened

• Detailed Specifications

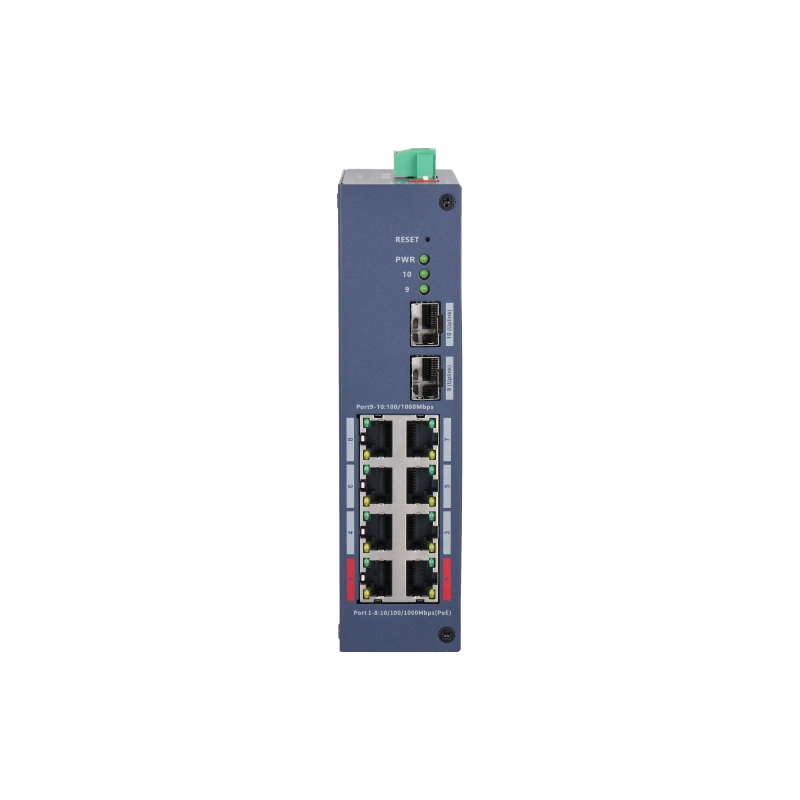

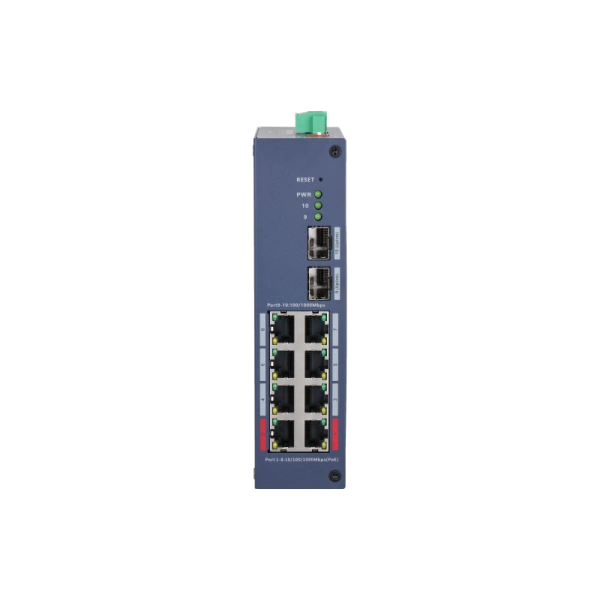

• Ethernet Port Types:

  8 × RJ-45 10/100/1000 Mbps (PoE), 2 × SFP 100/1000 Mbps (uplink)

• Fiber ports:

  2*1000 Mbps

• PoE Power Consumption:

  Port 1-2 ≤ 90 W, Port 3-8 ≤ 30W, total≤ 110 W

• PoE Pin Assignment:

  1, 2, 4, 5（V+）, 3, 6, 7, 8（V-)

• PoE Protocol:

  IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

• PoE Watchdog:

  Yes

• Standards Compliance:

  IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad

• Switching Capacity:

  20 Gbps

• Packet Forwarding Rate:

  14.88Mpps

• Packet Buffer Memory:

  8.4Mbit

• MAC Table:

  8000

• Flow Control:

  Support flow control based on IEEE802.3X

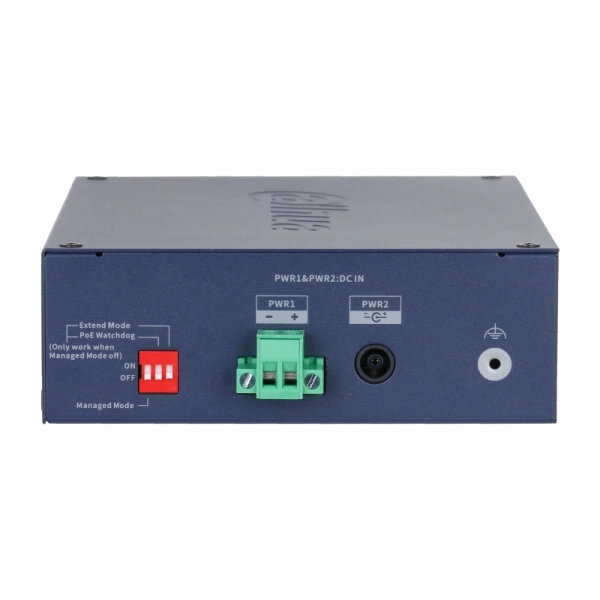

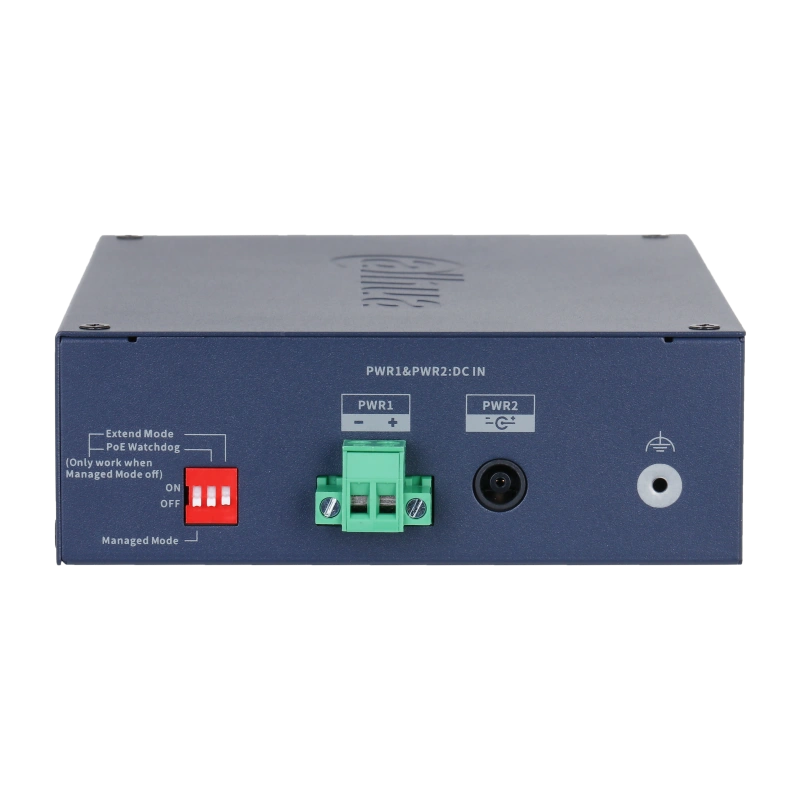

• Power:

  DC48~57V

• Supports dual power supply for backup:

  Yes

• Working Temperature:

  -30°C ~ 65°C

• Application Humidity:

  10% ~ 90% (noncondensing)

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Lightning Protection:

  Common Mode 6KV Differential Mode 2KV

• Net Weight:

  0.66 kg

• Dimension (W × L × H):

  171.8mm × 139.4mm × 42mm

• Additional features
• VLAN:

  802.1Q Standard VLAN

• Port Aggregation:

  Static link aggregation

• Mirroring:

  Local Port Mirroring

• DHCP:

  Support DHCP client

• Security Features:

  Port isolation

• System Management:

  Web Management, Cloud Management, Logs, Fault Alarm

• PoE management:

  Power consumption management, Power on and power off, Power down for overload

• Shipping package - DAHUA CHS4210-8GT-110
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  13.05 x 25.35 x 31.45; Weight: 1.6 kg.;
