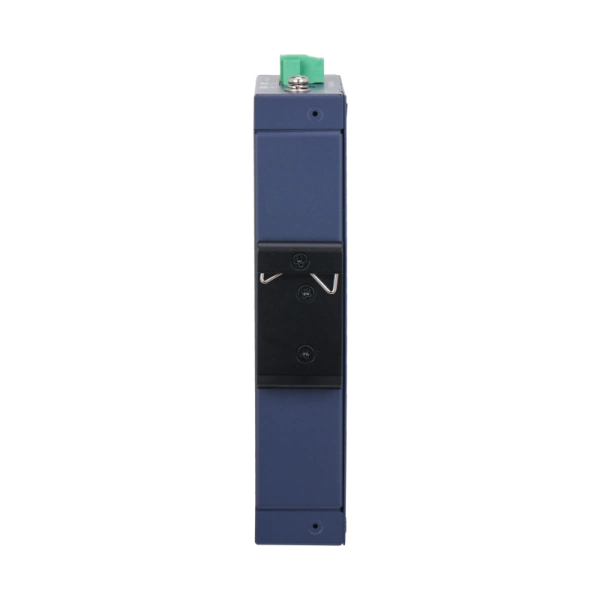

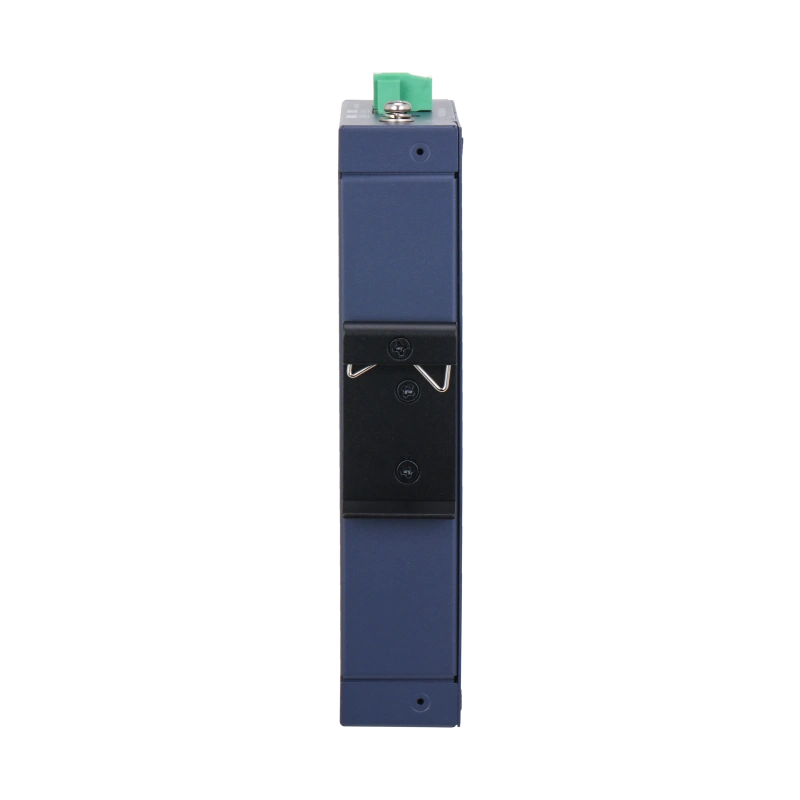

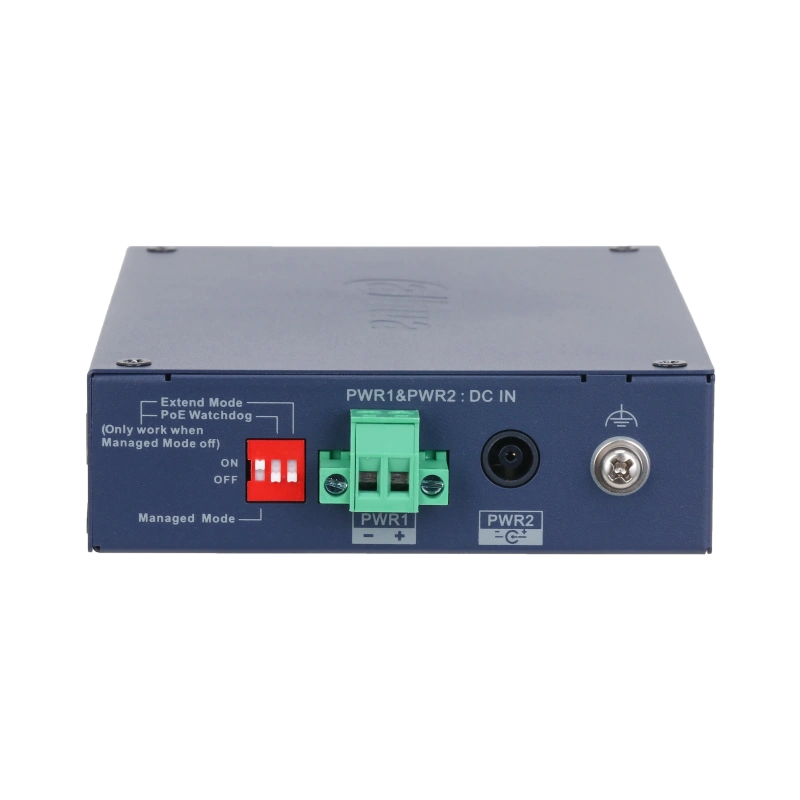

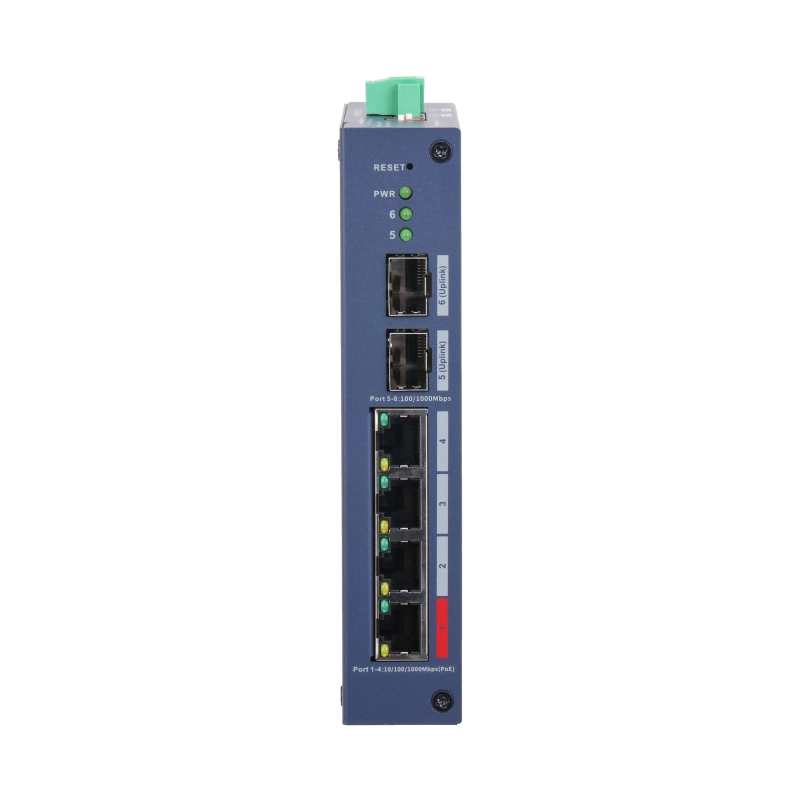

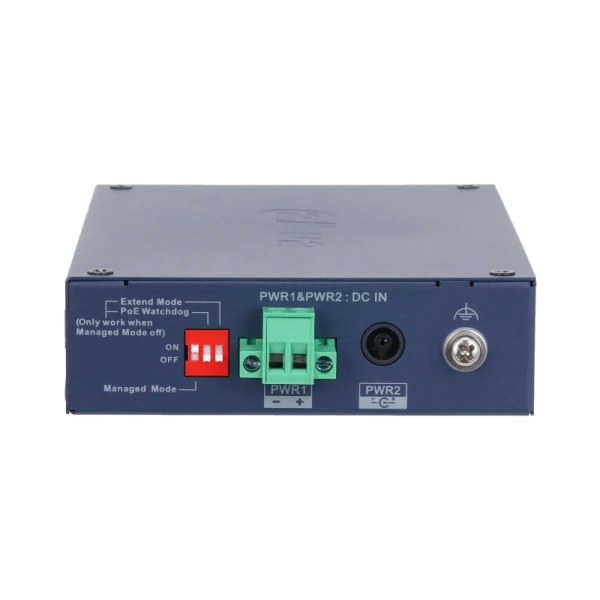

Dahua CHS4206-4GT-90 6-Port Cloud Managed Hardened Gigabit Switch with 4-Port PoE

Technical information

• Genral
• Managed:

  Yes

• Layer:

  Layer 2

• Gigabit:

  No

• PoE Supprot:

  Yes

• Hi-PoE:

  Port 1: 90W (red port)

• Number of Ethernet Ports:

  4

• Mount Type:

  DIN rail or free standing

• Тype of use:

  Hardened

• Detailed Specifications
• Ethernet Port Types:

  4 × RJ-45 10/100/1000 Mbps (PoE); 2 × RJ-45 10/100/1000 Mbps (Uplink)

• PoE Power Consumption:

  Port 1 ≤ 90 W, Port 2-4 ≤ 30W, total≤ 90 W

• PoE Pin Assignment:

  1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

• PoE Protocol:

  IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

• PoE Watchdog:

  Yes

• Standards Compliance:

  IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad

• Switching Capacity:

  12 Gbps

• Packet Forwarding Rate:

  8.928 Mpps

• Packet Buffer Memory:

  8.4Mbit

• MAC Table:

  8000

• Flow Control:

  Support flow control based on IEEE802.3X

• Power:

  48–57 VDC, 2–1.69 A

• Working Temperature:

  -30°C ~ 65°C

• Application Humidity:

  10% ~ 90% (noncondensing)

• ESD Protection:

  Air Discharge 8KV Contact Discharge 6KV

• Lightning Protection:

  Common Mode 4KV Differential Mode 2KV

• Net Weight:

  0.33 kg

• Dimension (W × L × H):

  159.8mm × 117.4mm × 30mm

• Additional features
• VLAN:

  Port-based VLAN

• Port Aggregation:

  Static link aggregation

• Mirroring:

  Local Port Mirroring

• DHCP:

  Support DHCP client

• Security Features:

  Port Isolation, IP/Port/MAC Binding

• System Management:

  Web Management, Cloud Management, Logs, Fault Alarm

• PoE management:

  Power consumption management, Power on and power off, Power down for overload, Green PoE

• Shipping package - DAHUA CHS4206-4GT-90
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  7.7 x 23.9 x 26.7; Weight: 1 kg.;
