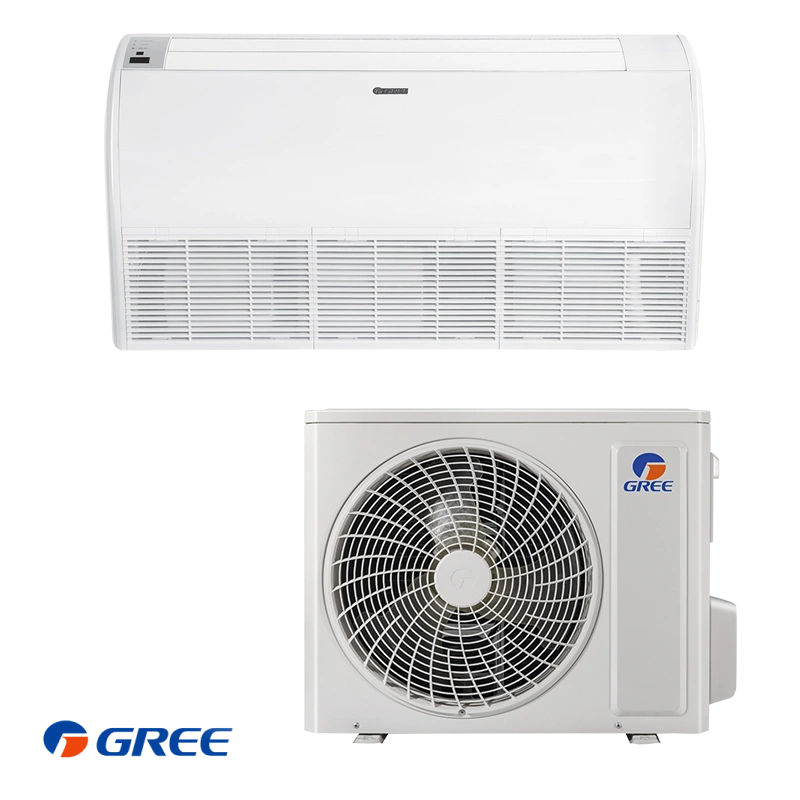

Ceiling Air conditioner Gree GUD71ZD1 + GUD71W1/NhA-S

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  - / 7.1 / - kW

• Heating capacity (Min./Nom./Max):

  - / 7.7 / - kW

• Consumption power - cooling (Min./Nom./Max):

  - / 2.03 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 1.95 / - kW

• Capacity (BTU):

  24 000 BTU

• Nominal efficiency EER cooling:

  3.5

• Seasonal efficiency SEER cooling:

  7.2

• COP:

  3.95

• SCOP:

  4.3

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -20 ~ 48 °C

• Operation Range (Heating):

  -20 ~ 24 °C

• Suitable for rooms up to:

  48 square meters

• Warranty:

  24 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  235 x 1200 x 665 H x W x L (mm)

• Weight:

  31 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  41 / 39 / 37 / 35 dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  41 / 39 / 37 / 35 dB (A)

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  660 x 889 x 340 H x W x L (mm)

• Weight:

  41.5 kg

• Refrigerant piping - Liquid / Gas:

  9.52 / 15.9 mm (3/8" / 5/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 55 / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 55 / - / - dB (A)

• Shipping package - GREE GUD71ZD1
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  30 x 130 x 77; Weight: 37 kg.;

• Shipping package - GREE GUD71W1/NhA-S OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  73 x 103 x 46; Weight: 45 kg.;
