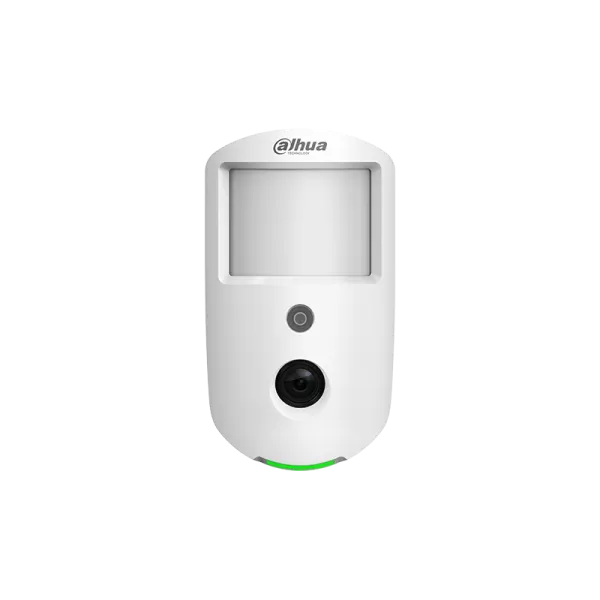

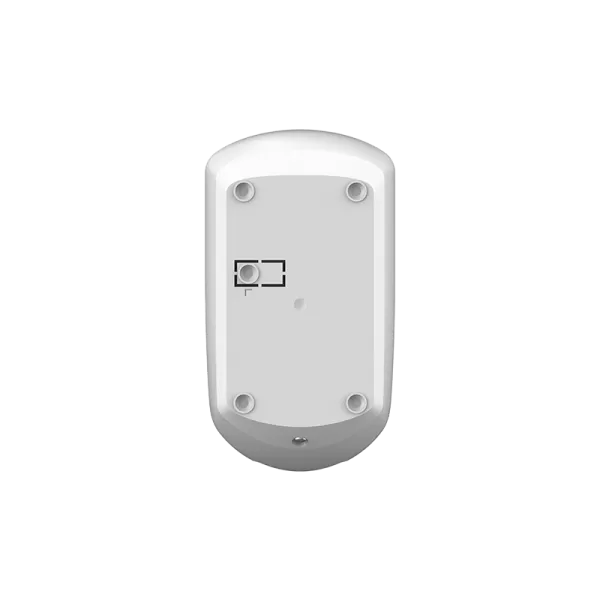

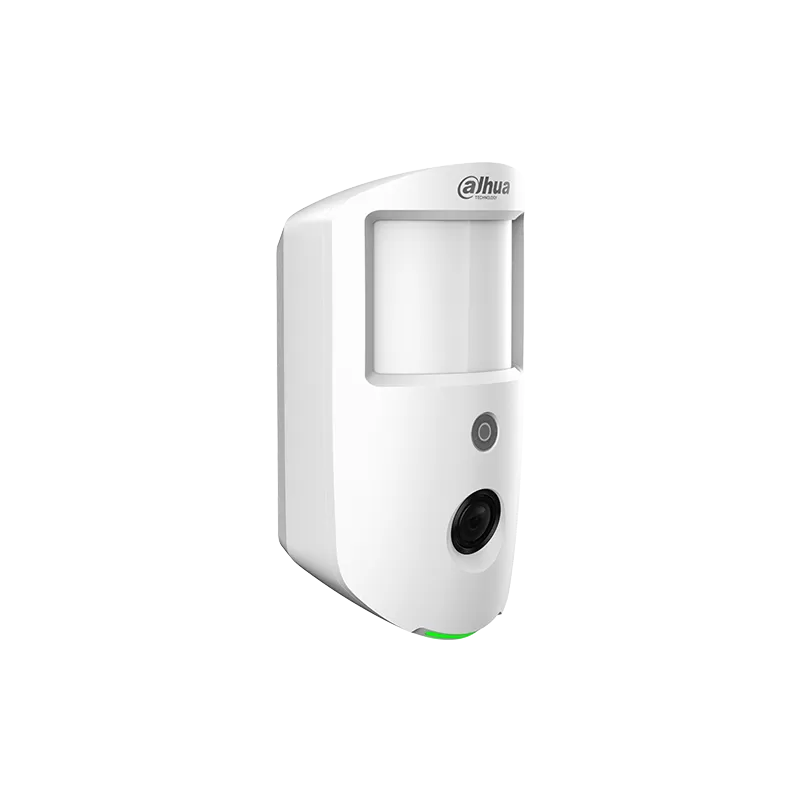

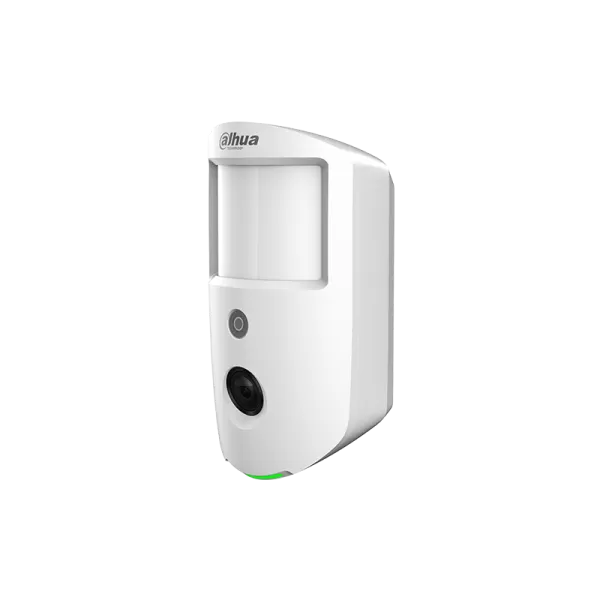

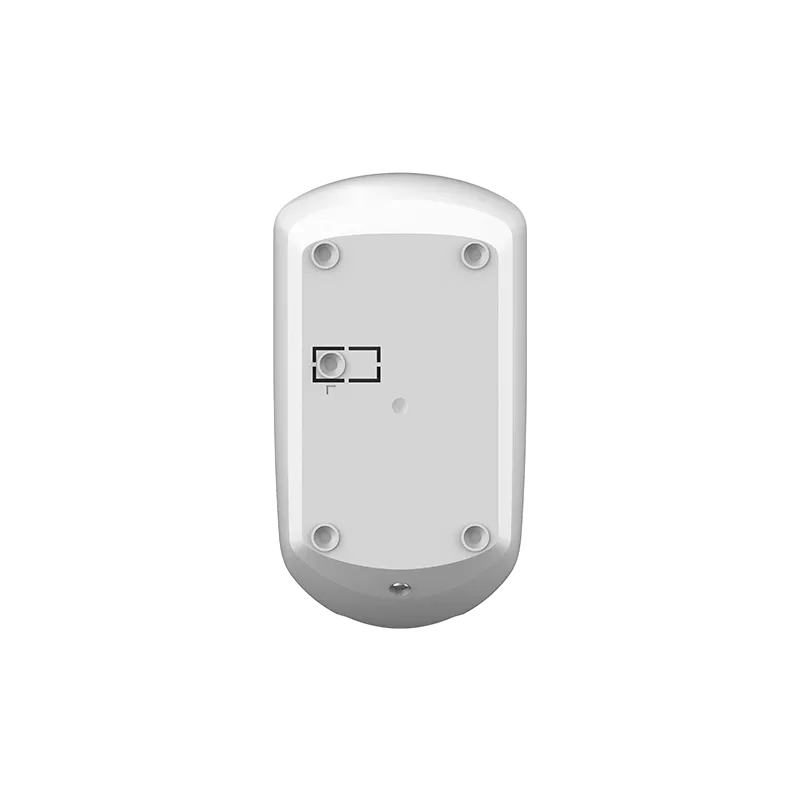

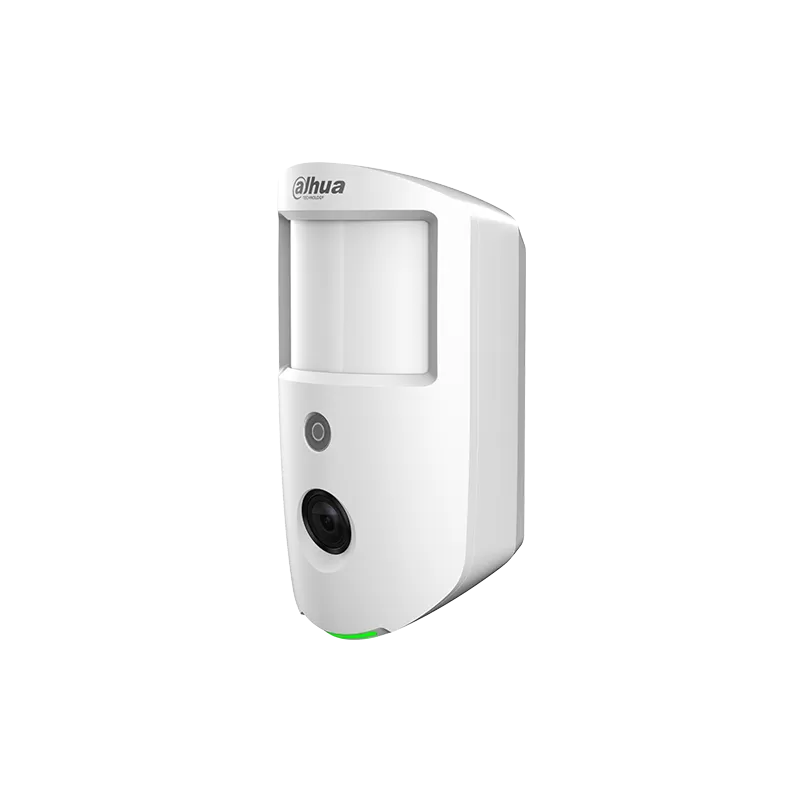

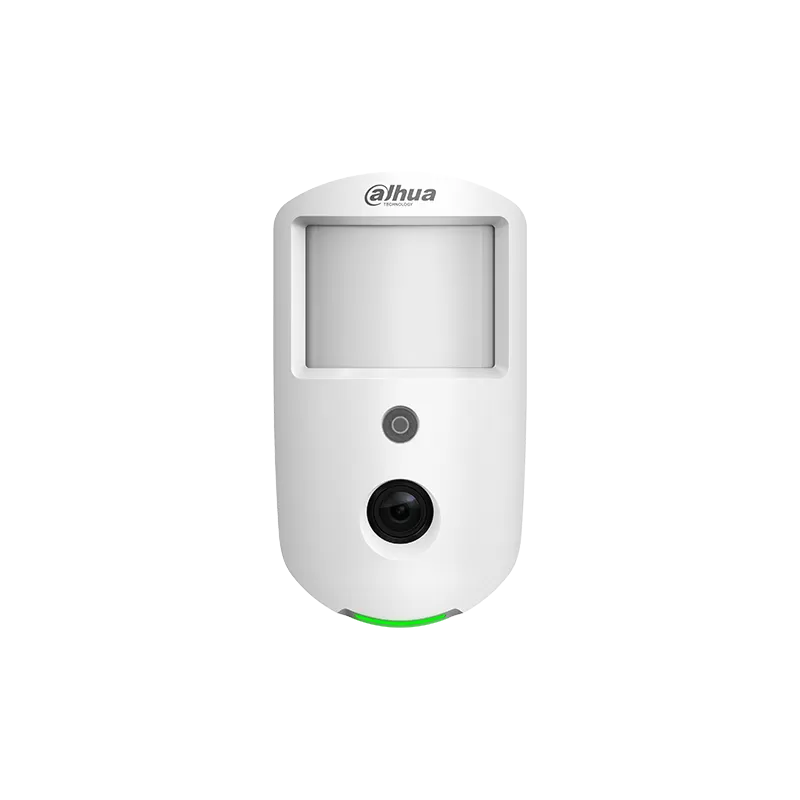

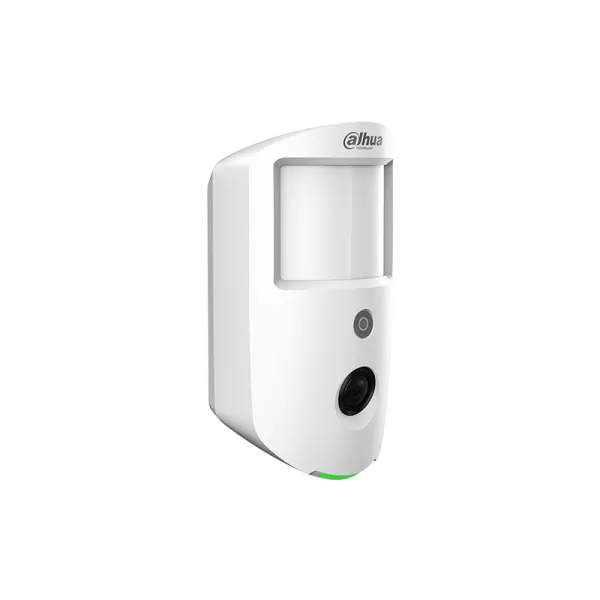

Wireless PIR-Camera Dahua ARD1731 - W2 (868)

Technical information

• General
• Type:

  Motion detectors

• Input / Output
• Video
• Field of View:

  88° (H); 68° (V)

• Image Type:

  JPEG

• Resolution:

  1600 × 1200; 1280 × 960; 640 × 480; 320 × 240

• Frame Rate:

  2

• Illumination Mode:

  Infrared Light

• Illumination Range:

  12 m

• Day/Night Switch:

  Color/Black & White

• Ports
• Indicator Light:

  1 × green alarm indicator

• Button:

  1 × power button

• Function
• Remote Upgrade:

  Cloud update

• Low Battery Detection:

  Yes

• Battery Level Display:

  Yes

• Signal Strength:

  Yes

• Wireless
• Carrier Frequency:

  RF:868.0 MHz–868.6 MHz, RF-HD:2.4GHz

• Communication Distance:

  RF: Up to 1600 m in an open space, RF-HD: Up to 300 m in an open space

• Communication Mechanism:

  Two-way

• Encryption Mode:

  AES128

• Frequency Hopping:

  Yes

• Technical
• Battery:

  3 × CR123A

• Battery Life:

  4 years (if triggered twice a week with a battery efficiency of 70%)

• Operating Current:

  65 μA ~ 230 mA

• Operating Temperature:

  –10 °C to +55 °C

• Operating Humidity:

  10%–90% (RH)

• Product Dimensions:

  127.6 mm × 71.0 mm × 53.2 mm

• Installation:

  Wall mount

• Net Weight:

  0.202. kg

• Gross Weight:

  0.333 kg

• Certifications:

  CE

• Casing:

  PC + ABS

• Specification
• Detection Range:

  12 m (86°) with installation height of 2.2 m

• Detection Speed:

  0.3 m/s–3 m/s

• Pet Immunity Level:

  ≤ 18 kg

• White Light Resistance Level:

  2000 lux

• Sensitivity:

  3 levels adjustable

• Temperature
• Alarm
• Peripherals
• Shipping package - DAHUA CAMERA PIR ARD1731 - W2 (868)
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  6.5 x 17 x 12.1; Weight: 0.333 kg.;
