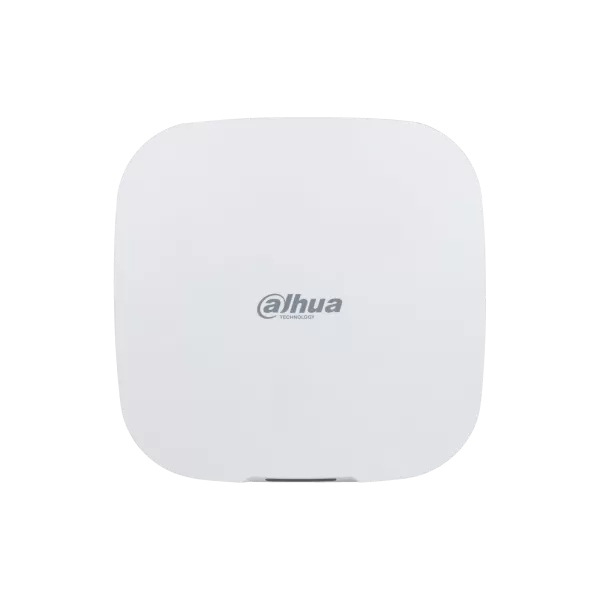

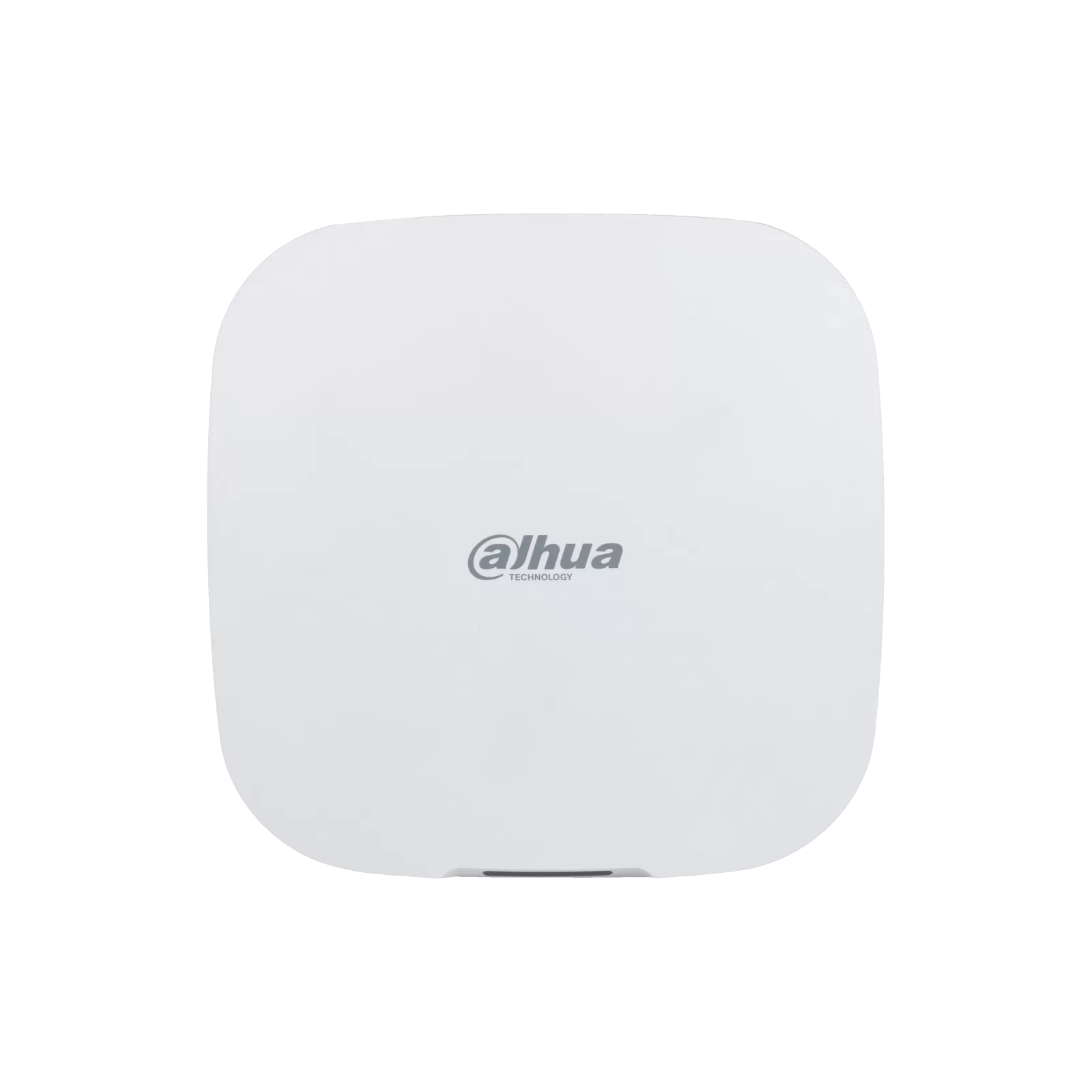

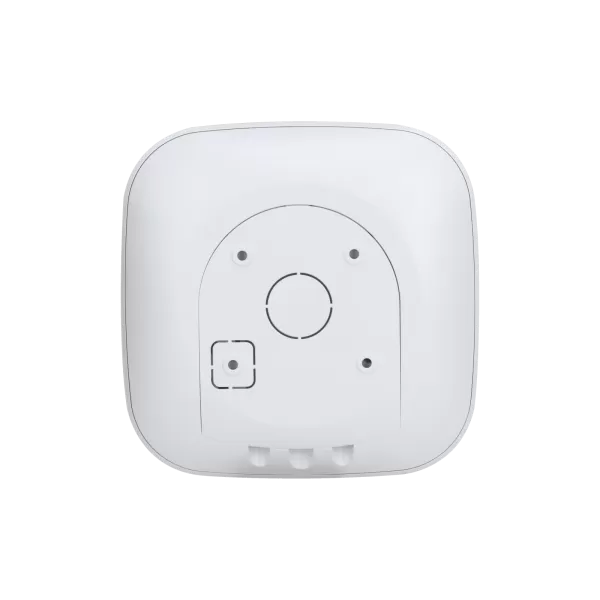

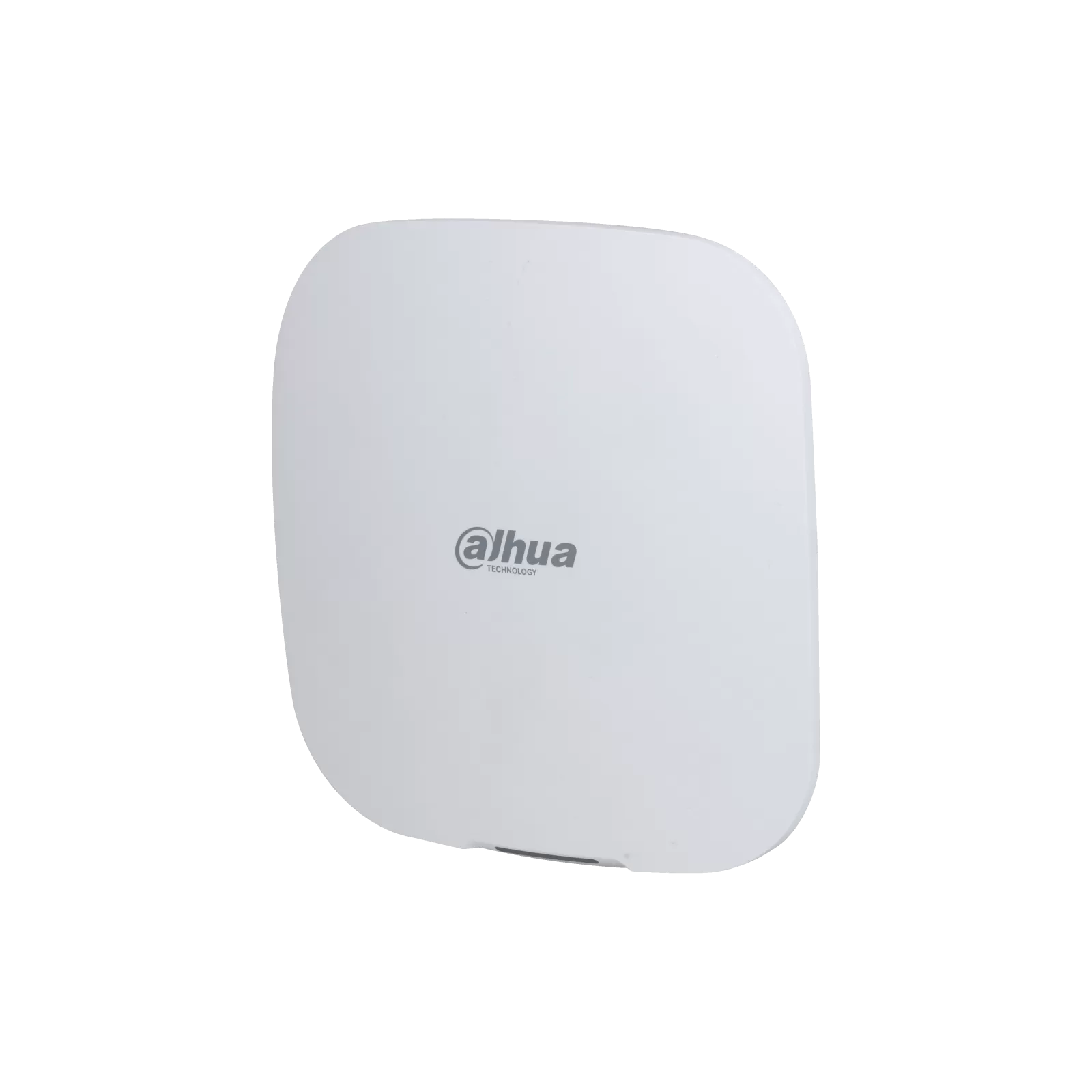

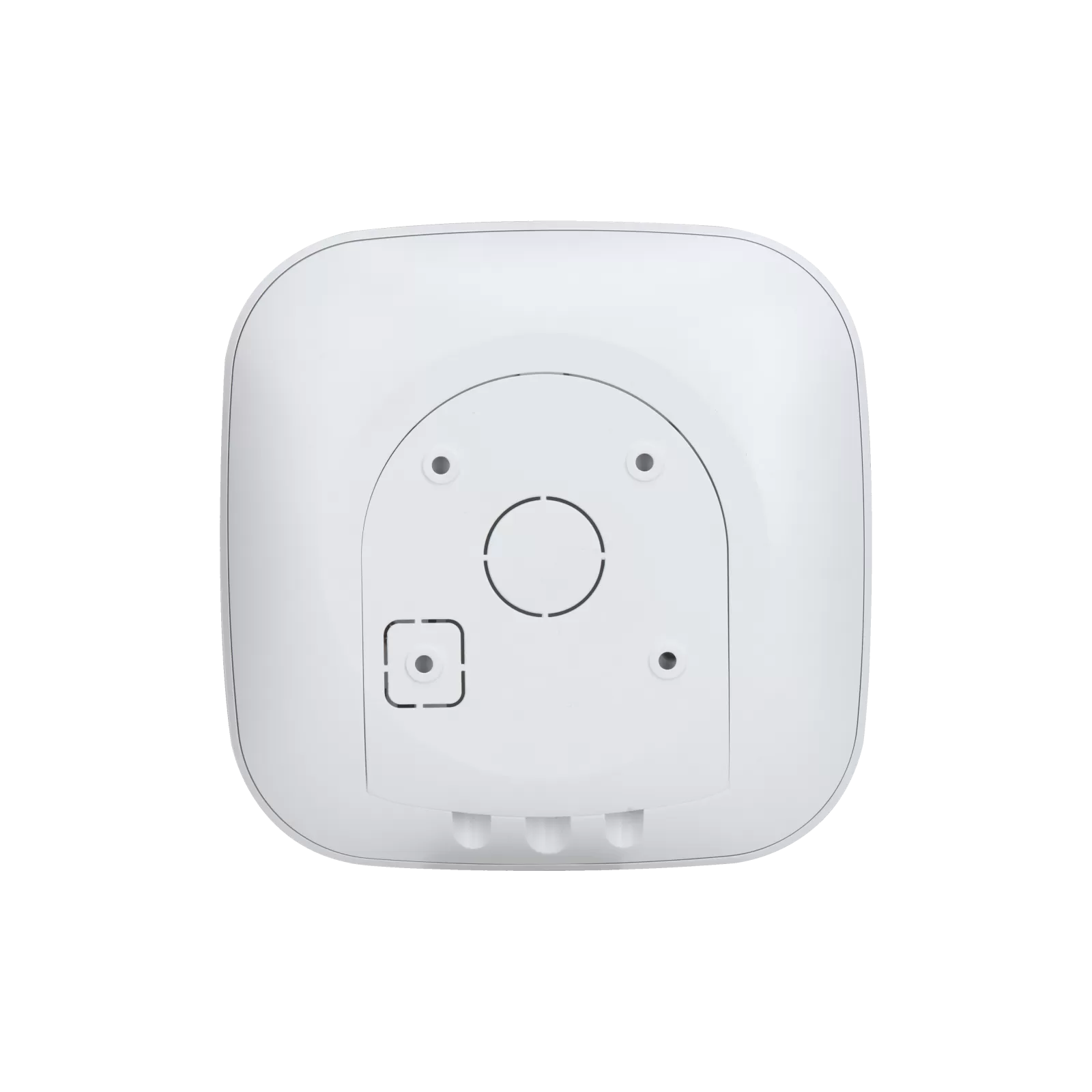

Alarm hub Dahua ART-ARC3000H-FW2(868) - 4G

Technical information

• Input / Output
• Connected devices:

  150

• User Management:

  Share function for App users

• Connected sirens:

  6

• Connected keyfobs:

  64

• Video
• Ports
• Network Port:

  1 × RJ-45 10M/100M

• Network Mode:

  Single SIM (GSM:900/1800MHz, WCDMA:B1/B5/B8, LTE-FDD:B1/B3/B5/B7/B8/B20, LTE-TDD:B38/B40/B41); dual SIM single standby

• Indicator Light:

  1 for multiple statuses

• Button:

  1 × reset, 1 × power, 1 × AP

• Buzzer:

  Built-in

• Function
• Tamper Alarm:

  Yes

• SMS:

  Yes (up to 5 phone numbers)

• Calling Alarm:

  Yes (up to 5 phone numbers)

• Video Linkage:

  Yes

• Network Protocol:

  TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP

• Remote Upgrade:

  Cloud update

• Arm and Disarm:

  App; keyfob; schedule

• Power Failure Protection for Configured Parameters:

  Yes

• Cache:

  Max. 50 entries (ANR)

• Low Battery Alarm:

  Yes

• Search:

  Search for push messages, device status, and program version, and detect signal strength

• Wireless
• Carrier Frequency:

  868.0 MHz–868.6 MHz

• Communication Distance:

  Up to 2000 m in an open space

• Communication Mechanism:

  Two-way

• Encryption Mode:

  AES128

• Wi-Fi:

  2.4G / 5G

• Frequency Hopping:

  Yes

• General
• Power Supply:

  12 V DC, 1.5 A (Europe, UK and USA power adapters are optional)

• Battery:

  Built-in lithium battery

• Battery Life:

  Storage battery standby for 12 hours

• Operating Temperature:

  –10 °C to +50 °C

• Operating Humidity:

  10%–90% (RH)

• Product Dimensions:

  163.0 mm × 163.0 mm × 32.0 mm

• Installation:

  Wall mount; desktop

• Net Weight:

  0.38 kg

• Gross Weight:

  0.8 kg

• Certifications:

  CE

• Casing:

  PC + ABS

• Specification
• Temperature
• Alarm
• Peripherals
• Shipping package - DAHUA HUB ARC3000H-FW2(868) - 4G
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.1 x 18.7 x 21.9; Weight: 0.8 kg.;
