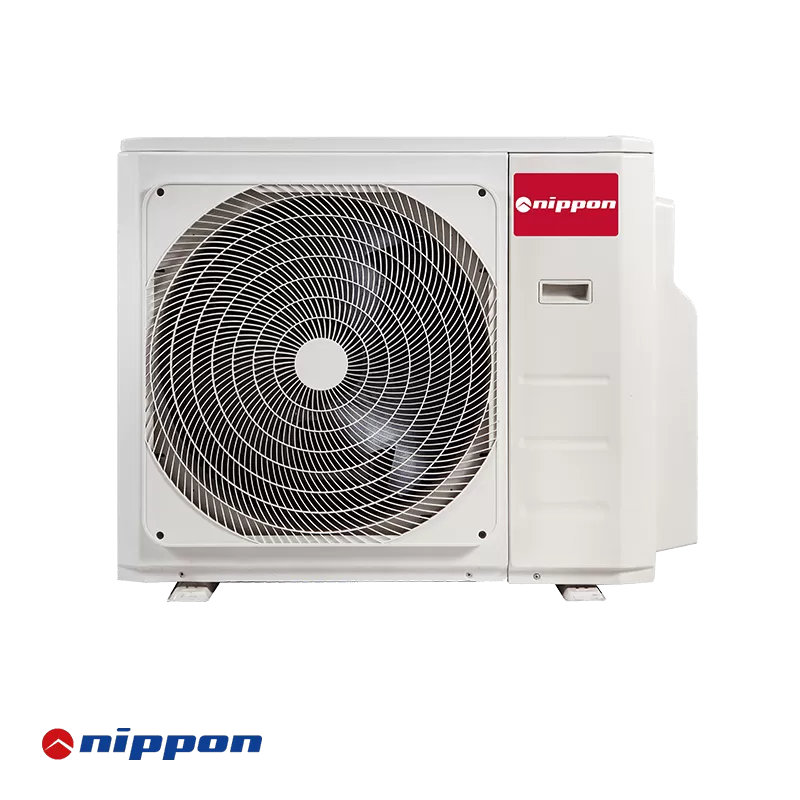

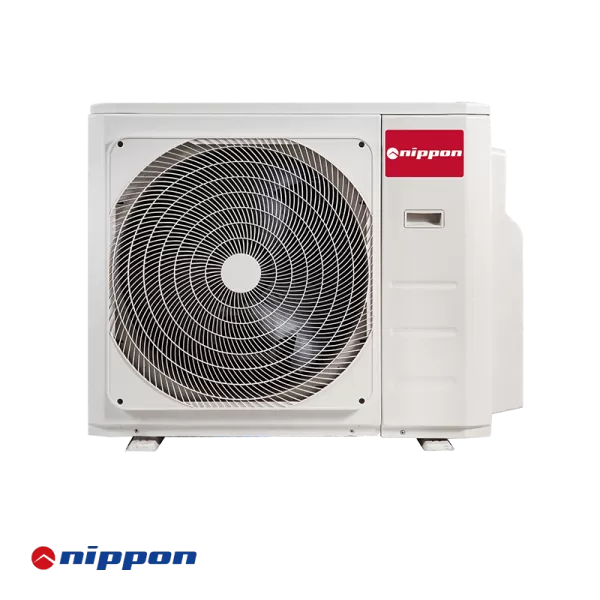

Multi-split system Nippon N40E-28HFN8-Q - external unit

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  2.05 / 8.20 / 9.85 kW

• Heating capacity (Min./Nom./Max):

  2.35 / 8.80 / 10.55 kW

• Consumption power - cooling (Min./Nom./Max):

  0.89 / 2.54 / 3.18 kW

• Consumption power - heating (Min./Nom./Max):

  0.77 / 2.2 / 2.75 kW

• Capacity (BTU):

  28 000 BTU

• Nominal efficiency EER cooling:

  3.23

• Seasonal efficiency SEER cooling:

  6.1

• COP:

  4

• SCOP:

  3.8

• Energy label (Cooling / Heating) - Average climate:

  A++ / A

• Operation Range (Cooling):

  -15 - 50 °C

• Operation Range (Heating):

  -15 ~ 24 °C

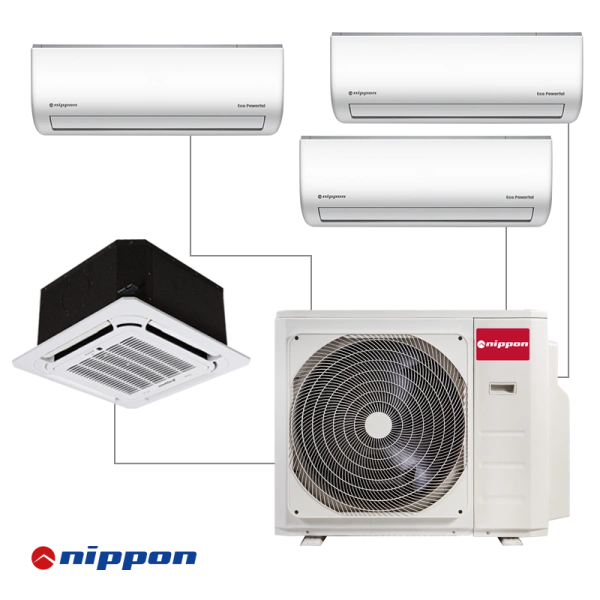

• Maximum number indoor units:

  4

• Suitable for rooms up to:

  57 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  810 x 946 x 410 H x W x L (mm)

• Weight:

  62 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  62 / - / - / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  62 / - / - / - dB

• Shipping package - NIPPON N40E-28HFN8-Q MULTI OUT
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  88 x 50 x 109; Weight: 66.7 kg.;
