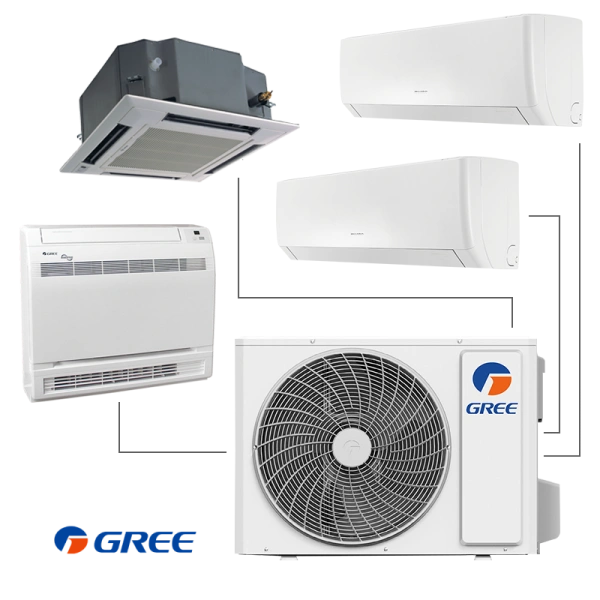

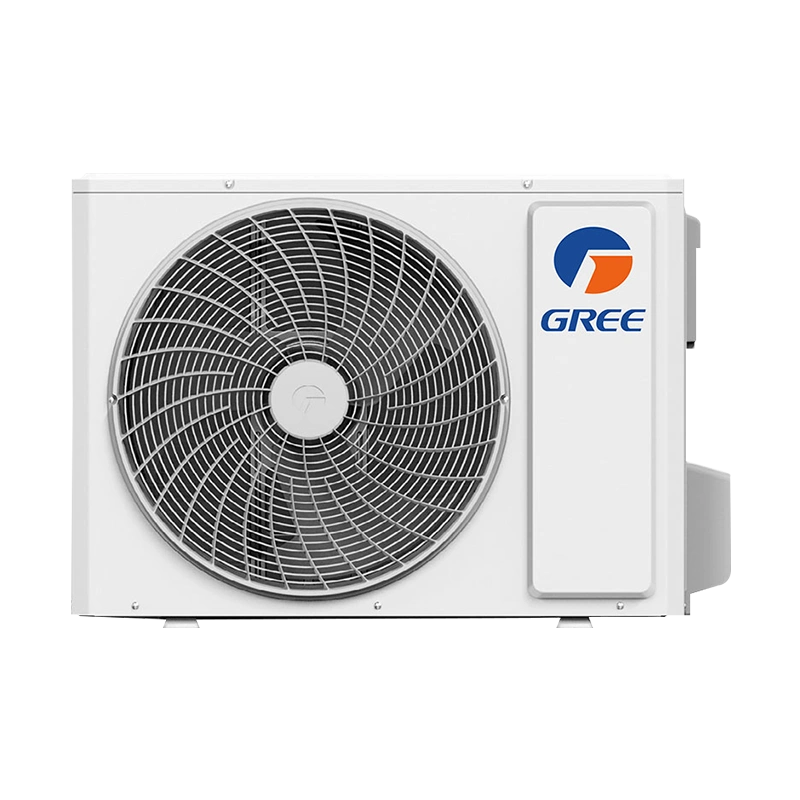

Multi-split system Gree GWHD(28)NK6LOO - external unit

Documents

Comments

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  - / 8.0 / - kW

• Heating capacity (Min./Nom./Max):

  - / 9.5 / - kW

• Consumption power - cooling (Min./Nom./Max):

  - / 2.3 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 2.65 / - kW

• Capacity (BTU):

  28 000 BTU

• Seasonal efficiency SEER cooling:

  6.1

• SCOP:

  3.58

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -15 ~ 43 °C

• Operation Range (Heating):

  -20 ~ 24 °C

• Maximum number indoor units:

  4

• Suitable for rooms up to:

  57 square meters

• Warranty:

  24 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  790 x 1001 x 427 H x W x L (mm)

• Weight:

  69 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  58 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  58 / - / - / - dB (A)

• Shipping package - GREE GWHD(28)NK6OO MULTI OUT
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  49 x 108 x 84; Weight: 74 kg.;
