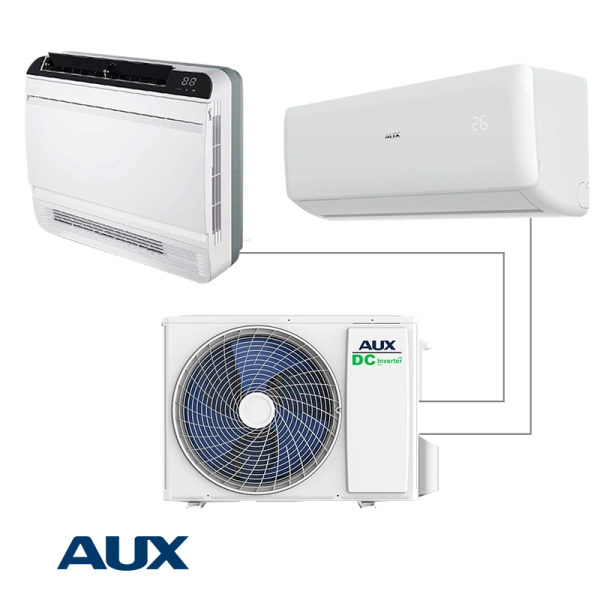

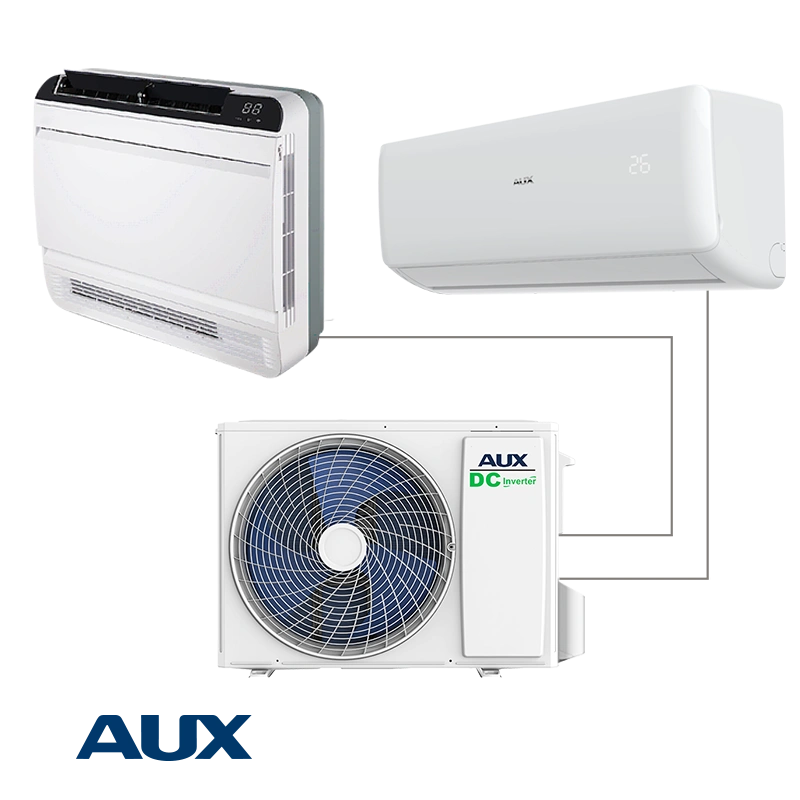

Multi-split system AUX AM2-H18/4DR3HA (A+++) - external unit

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  2.0 / 5.2 / 5.83 kW

• Heating capacity (Min./Nom./Max):

  2.21 / 6.0 / 6.60 kW

• Consumption power - cooling (Min./Nom./Max):

  0.28 / 1.24 / 2.5 kW

• Consumption power - heating (Min./Nom./Max):

  0.28 / 1.3 / 2.5 kW

• Capacity (BTU):

  18 000 BTU

• Nominal efficiency EER cooling:

  4.2

• Seasonal efficiency SEER cooling:

  8.5

• COP:

  4.6

• SCOP:

  7.4

• Energy label (Cooling / Heating) - Average climate:

  A+++ / A++

• Operation Range (Cooling):

  -15 ~ 52 °C

• Operation Range (Heating):

  -25 ~ 24 °C

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit

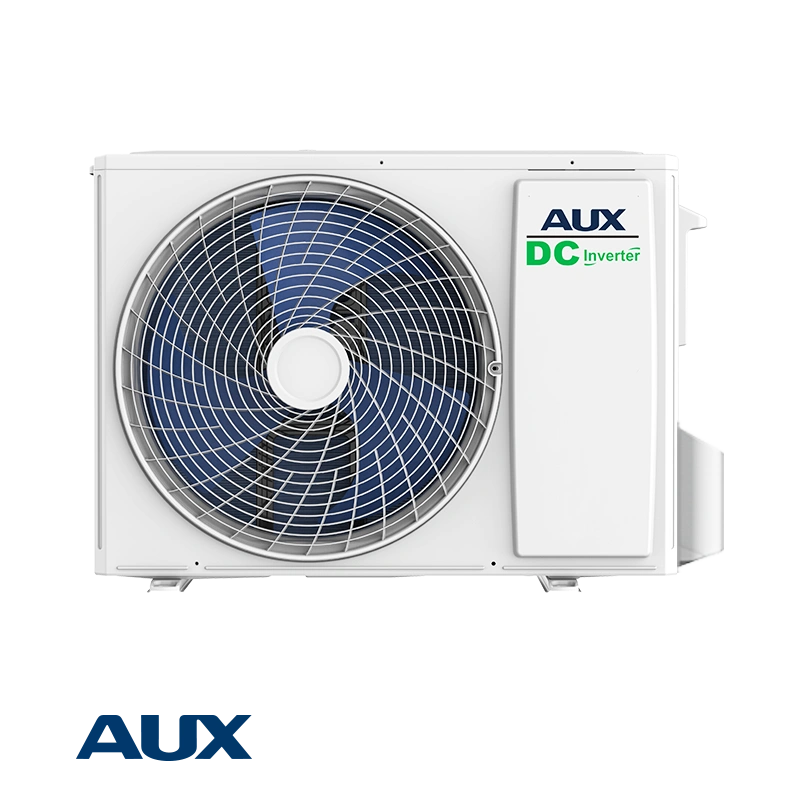

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  700 x 900 x 360 H x W x L (mm)

• Weight:

  42 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  54 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  54 / - / - / - dB (A)

• Shipping package - AUX AM2-H18/4DR3HA A+++ ВЪНШ. ТЯЛО МУЛТИ
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  70 x 90 x 36; Weight: 45.5 kg.;
