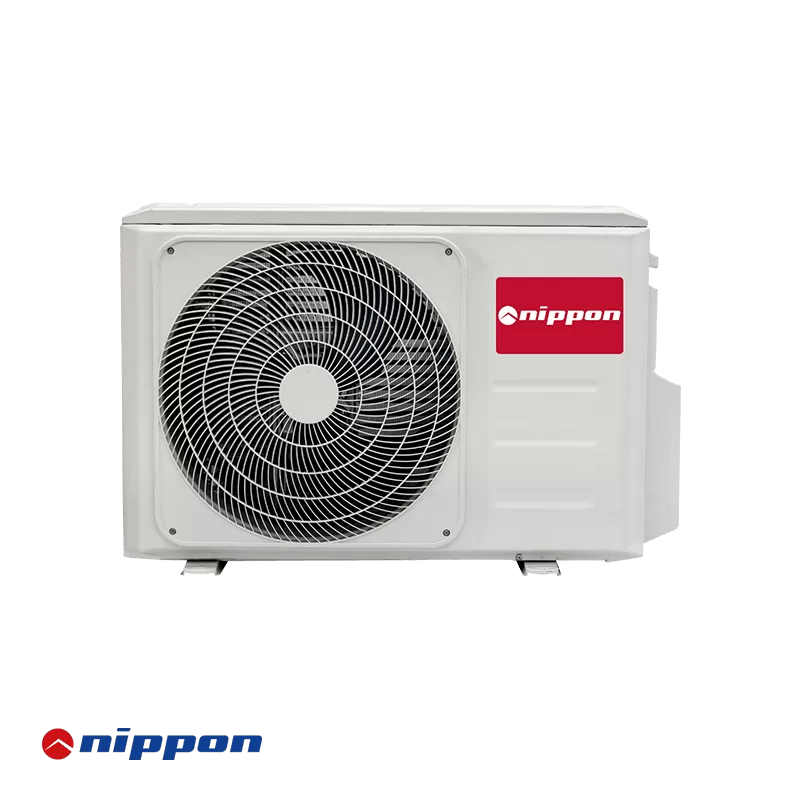

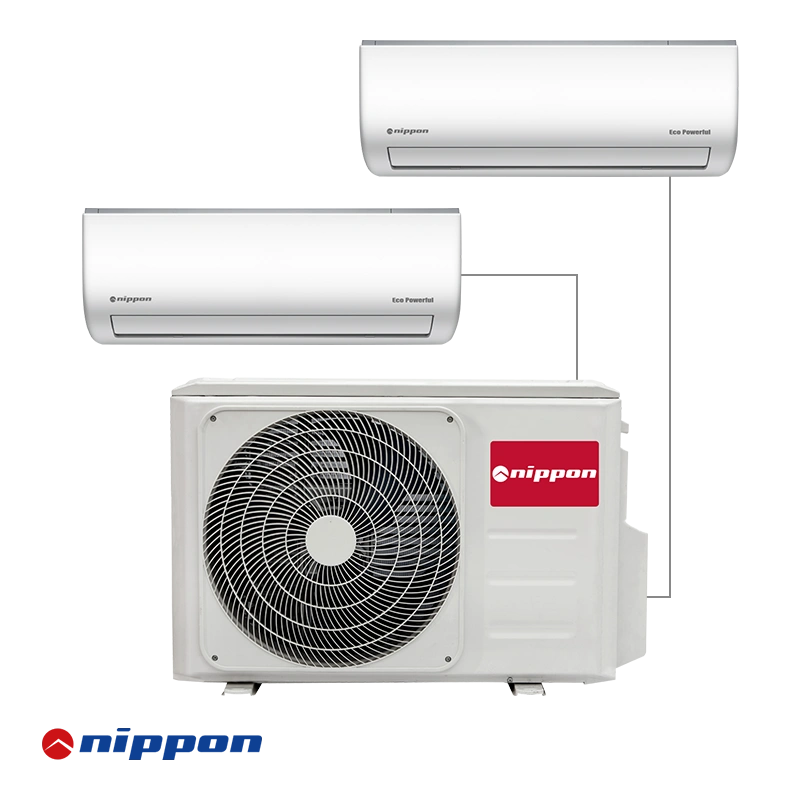

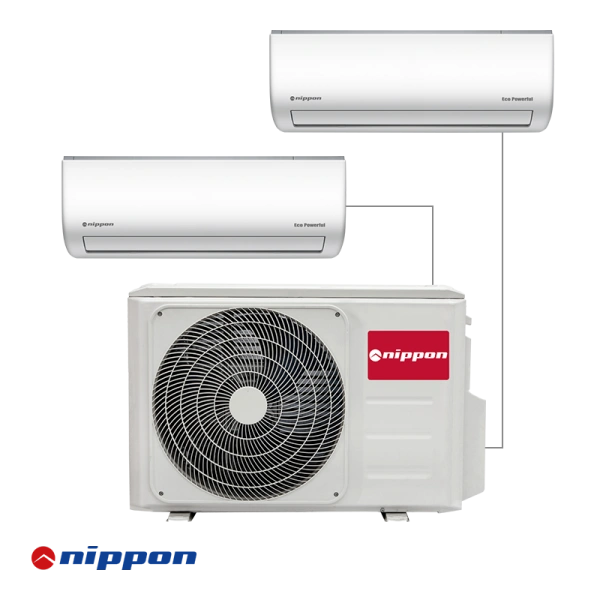

Multi-split system Nippon N20G-14HFN8-Q - external unit

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  1.82 / 4.1 / 4.8 kW

• Heating capacity (Min./Nom./Max):

  1.53 / 4.4 / 5.1 kW

• Consumption power - cooling (Min./Nom./Max):

  0.17 / 1.27 / 1.71 kW

• Consumption power - heating (Min./Nom./Max):

  0.27 / 1.19 / 1.70 kW

• Capacity (BTU):

  14 000 BTU

• Nominal efficiency EER cooling:

  3.2

• Seasonal efficiency SEER cooling:

  5.6

• COP:

  3.71

• SCOP:

  4.6

• Energy label (Cooling / Heating) - Average climate:

  A+ / A

• Operation Range (Cooling):

  -15 - 50 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Maximum number indoor units:

  2

• Suitable for rooms up to:

  30 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  554 x 800 x 333 H x W x L (mm)

• Weight:

  31.6 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  57 / - / - / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  57 / - / - / - dB

• Shipping package - NIPPON N20G-14HFN8-Q MULTI OUT
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  62 x 39 x 92; Weight: 34.7 kg.;
