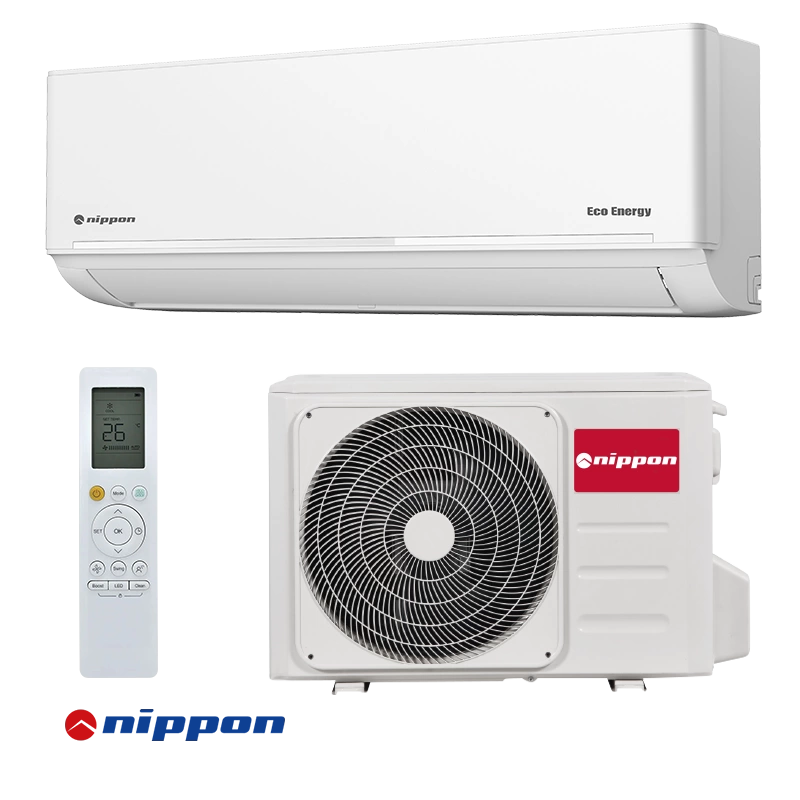

Inverter Air conditioner Nippon KFR 14DCB ECO ENERGY

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  1.38 / 3.52 / 4.31 kW

• Heating capacity (Min./Nom./Max):

  1.07 / 3.81 / 4.38 kW

• Consumption power - cooling (Min./Nom./Max):

  0.13 / 1.05 / 1.65 kW

• Consumption power - heating (Min./Nom./Max):

  0.16 / 0.98 / 1.56 kW

• Capacity (BTU):

  14 000 BTU

• Seasonal efficiency SEER cooling:

  8.5

• SCOP:

  4.6

• Energy label (Cooling / Heating) - Average climate:

  A+++ / A++

• Operation Range (Cooling):

  -15 ~ 50 °C

• Operation Range (Heating):

  -15 ~ 30 °C

• Suitable for rooms up to:

  25 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  295 x 835 x 208 H x W x L (mm)

• Weight:

  8.7 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  39 / 33 / 22 / 21 dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  39 / 33 / 22 / 21 dB (A)

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  555 x 765 x 303 H x W x L (mm)

• Weight:

  27 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  55 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  55 / - / - / - dB (A)

• Shipping package - KFR 14DCB ECO ENERGY INDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  30 x 20 x 70; Weight: 11 kg.;

• Shipping package - KFR 14DCB ECO ENERGY OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  70 x 35 x 70; Weight: 22 kg.;
