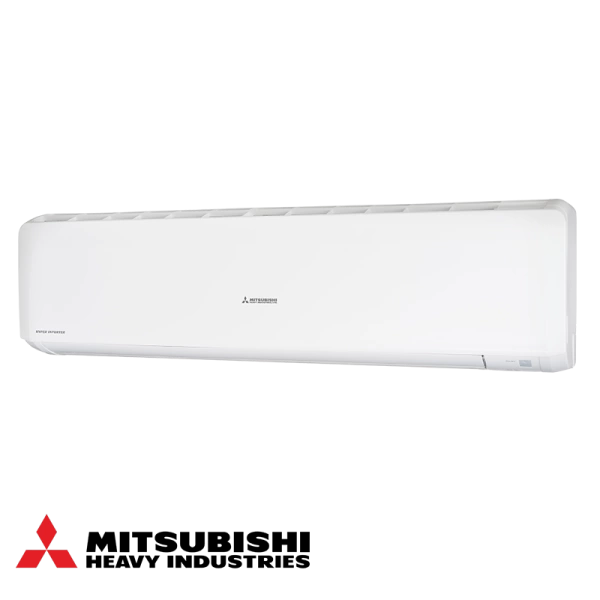

Inverter Air conditioner Mitsubishi Heavy Industries SRK63ZR-W + SRC63ZR-W

  • Code: 2520873
  • In stock
  • Weight: 67.00 kg

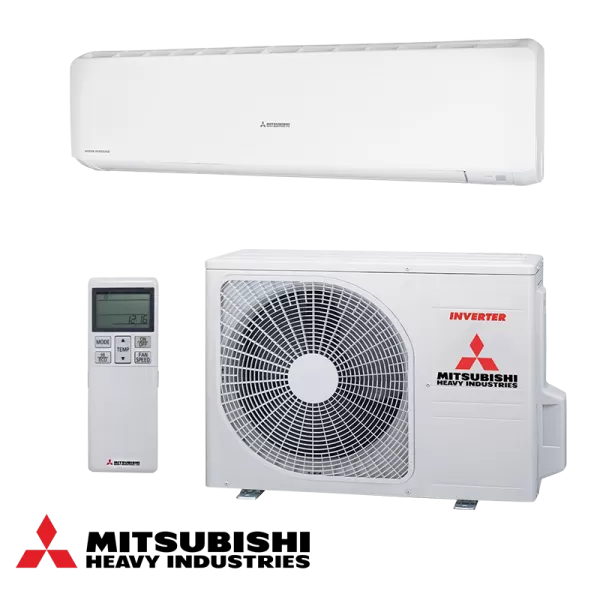

Inverter Air conditioner Mitsubishi Heavy Industries SRK63ZR-W / SRC63ZR-W is one of the best solutions when you need big capacity for large premises.

1840.99

Documents

User documentation
  • Energy label for Mitsubishi Heavy Industries SRK63ZR-W / SRC63ZR-W Download
  • Brochure for Mitsubishi Heavy Industries SRK63ZR-W / SRC63ZR-W Download
  • User manual Mitsubishi Heavy Industries SRK63ZR-W / SRC63ZR-W Download
  • Declaration of conformity for Mitsubishi Heavy Industries SRK63ZR-W / SRC63ZR-W Download
  • Wi-Fi Installation manual_bg Download
  • WF-RAC-Quick-Guide-BG Download

Comments

  1. Add comment
  2. 1 2 3 4 5

Technical information

  • Basic
  • Cooling capacity (Min./Nom./Max):

    1.2 / 6.3 / 7.4 kW

  • Heating capacity (Min./Nom./Max):

    0.8 / 7.1 / 9.3 kW

  • Consumption power - cooling (Min./Nom./Max):

    - / 1.63 / - kW

  • Consumption power - heating (Min./Nom./Max):

    - / 1.64 / - kW

  • Capacity (BTU):

    22 000 BTU

  • Nominal efficiency EER cooling:

    3.87

  • Seasonal efficiency SEER cooling:

    8.1

  • COP:

    4.33

  • SCOP:

    4.7

  • Energy label (Cooling / Heating) - Average climate:

    A++ / A++

  • Operation Range (Cooling):

    -15 ~ 46 °C

  • Operation Range (Heating):

    -15 ~ 24 °C

  • Suitable for rooms up to:

    44 square meters

  • Warranty:

    36 months

  • Refrigerant:

    R-32

  • Power supply (Phase/Frequency/Voltage):

    1~/50/220-240

  • Indoor unit
  • Dimensions:

    339 x 1197 x 262 H x W x L (mm)

  • Weight:

    15.5 kg

  • Sound Pressure - cooling (High/Nom./Low/Silent):

    44 / 39 / 35 / 25 dB (A)

  • Sound Pressure - heating (High/Nom./Low/Silent):

    44 / 38 / 34 / 28 dB (A)

  • Outdoor unit
  • Dimensions:

    640 x 800 x 290 H x W x L (mm)

  • Weight:

    45 kg

  • Refrigerant piping - Liquid / Gas:

    6.35 / 12.7 mm (1/4" / 1/2") mm / inch

  • Sound Pressure - cooling (High/Nom./Low/Silent):

    - / 54 / - / - dB (A)

  • Sound Pressure - heating (High/Nom./Low/Silent):

    - / 54 / - / - dB (A)

  • Shipping package - MITS. HEAVY SRC 63 ZR-W OUT
  • Packages quantity:

    1 pc.

  • Package dimensions (HxWxD cm):

    78 x 91 x 37; Weight: 49 kg.;

Details

Powerful and efficient

Invertor air conditioner Mitsubishi Heavy Industries SRK63ZR-W / SRC63ZR-W is the perfect choice for large rooms which require high power when conditioning. With the push of a button you can activate the 3D AUTO function which executes 3 independent types of control on the air flow. As a result, you get even and quiet air flow that reaches every corner of the room. What you achieve is economical operation of the AC, and energy waste is minimized. Thanks to the automatic control of the flow and direction, comfortable heating and cooling of the whole room is achieved in the most efficient way.

Мощен и ефективен

Jet технология

Jet technology

Mitsubishi Heavy Industries have applied an aerodynamic analysis used in the design of turbojet engines in order to develop their innovative Jet technology. The airflow generated by the JET Air Scroll system provides a large amount of air with minimal energy consumption, the air flow being powerful, even, silent (up to 25dB) and reaching the farthest corners of the room.

Allergen-deactivating system

The Mitsubishi Heavy Industries SRK63ZR-W / SRC63ZR-W inverter air conditioner has two filters and a self-cleaning function in order to ensure a healthy environment in the room. The allergen-deactivating filter completely destroys pollen, parasites and allergens from our pets' furs. In addition, it neutralizes and kills all kinds of bacteria, moulds and virus and even released from the filter, they have already been deactivated.
The photocatalytic deodorizing filter prevents from unpleasant odours and the self-cleaning function does not allow moisture to be retained in the air conditioner. Thanks to this, the air in the room stays clean and fresh.

Алерген-деактивираща система

Тишина и спокоен сън

Silence and restful sleep

When people sleep, it is not necessary to cool or heat too much. The Sleep Timer function provides moderate conditioning with a precise capacity management as well as additional energy saving. When Silent Mode is set, the conditioning takes care of your restful sleep working on a lower speed/capacity.


Адаптивно управление с предсказване

Adaptive predictive control

The air conditioner automatically selects the working mode and temperature settings, depending on an approximate calculation and adjusts the frequency inverter.

Economy режим

Economy mode

The air conditioner works in energy saving mode, thus maintaining a comfortable operation of cooling or heating.

Jet технология

Jet technology

Aircraft technology is used in the airflow system of the air conditioner.

3D Auto

3D Auto

You can choose the most suitable cooling or heating scheme with the push of a button.

Автоматични въздухо-разпределителни клапи

Automatic air distribution valves

Regardless of the operating mode, the AC automatically chooses the best angle.

Запаметяване на позицията на клапите

Saving the position of the valves

While moving, the valves can be stopped in the desired angle.

Завъртане на въздухо-разпределителните клапи във вертикално направление

Turning the air distribution valves into a vertical position

The AC valves can be placed into the desired position which varies from horizontal to vertical.

Завъртане на въздухо-разпределителните клапи в хоризонтално направление

Turning the air distribution valves into a horizontal position

It sends a pleasant airflow in a wide range by turning the air distribution valves automatically to the left or right. The valves can be fixed into the desired position.

Алерген-деактивираща система

Allergen-deactivating system

This function starts working for two hours after the AC has stopped its normal operation. The indoor unit is dry and producing mould has been prevented.

Самопочистваща функция

Self-cleaning function

The system suppresses the influence of the allergen detected and caught by the filter by means of controlling temperature and humidity.

Алерген-деактивиращ филтър

Allergen-deactivating filter

This function starts working for two hours after the AC has stopped its normal operation. The indoor unit is dry and producing moulds has been prevented.

Фотокаталитичен миещ се дезодориращ филтър

Photocatalytic washable deodorizing filter

It keeps the air fresh by removing unpleasant odours. Its deodorizing function can be easily restored only by washing it and exposing it to sunlight.

Разглобяем панел

Removable front panel

Maintaining is made easier as the front panel is removable for an easy cleaning.

Режим на изсушаване

Drying mode

The device dries the room by means of periodical drying operations.

Hi Power режим

"Hi Power" mode

The AC can work in "Hi Power" mode for 15 minutes. This mode is suitable for quick achievement of the desired temperature.

Тих режим

Silent mode

The indoor unit noise level is at least 3dB(A) lower than the standard one.

Нощно поддържане

Night mode

During the cold seasons, the temperature in the rooms can stay at a comfortable level, even when you are absent. The AC maintains a temperature of 10ºC.

Седмичен таймер

Weekly timer

Up to 4 setting can be set for the timer in order to turn the AC on and off daily. In this way, you have 28 types of settings for the week.

24-часов таймер

24 hour timer

Using the combination of start and stop timer, you can use two operations of the timer per day. Once set, timers will start and stop the system in the set hour.

Режим „Сън”

„Sleep” mode

The temperature in the room is automatically controlled in sleep mode which ensures the temperature does not go up or down too much.

On/Off таймер

On/Off timer

The AC will automatically start and stop in the set time.

Комфортен старт

Comfortable start

In ON-TIMER mode, the AC automatically starts working a little earlier so that the set temperature in the room gets optimal on time.

Заключване за деца

Child lock

This function blocks the AC, thus avoiding unintentional changes in the settings.

Позициониране при монтаж

Positioning when mounting

With the remote controller you can direct the air flow to the left or to the right when the AC is mounted next to a wall.

Микрокомпютърно обезскрежаване

Microcomputer defrosting

This mode automatically removes accumulated frost and helps reducing the time for defrosting.

Функция самодиагностика

Self-diagnosis function

In case the AC is not functioning well, an inside microprocessor automatically starts performing a self-diagnosis. The error is presented as a two digit indication.

Автоматична функция за рестартиране

Automatic function for restart

The compensation in case of power failure is a function which saves the working status of the AC immediately before its turning off due to power outage and automatically continues operating from this moment when the power is restored.
