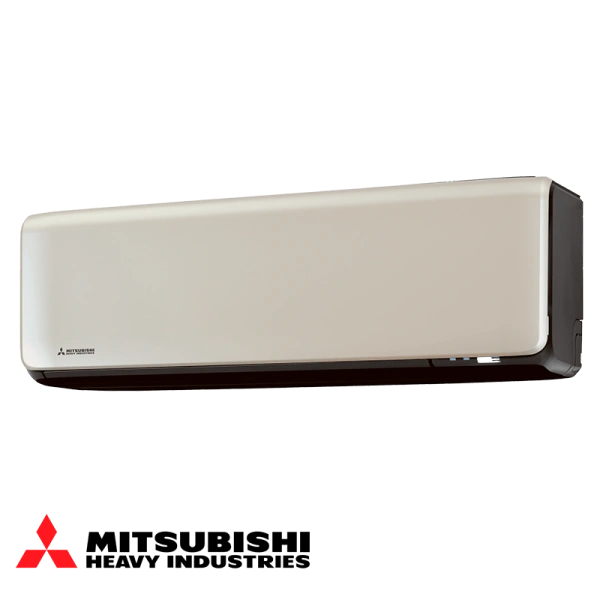

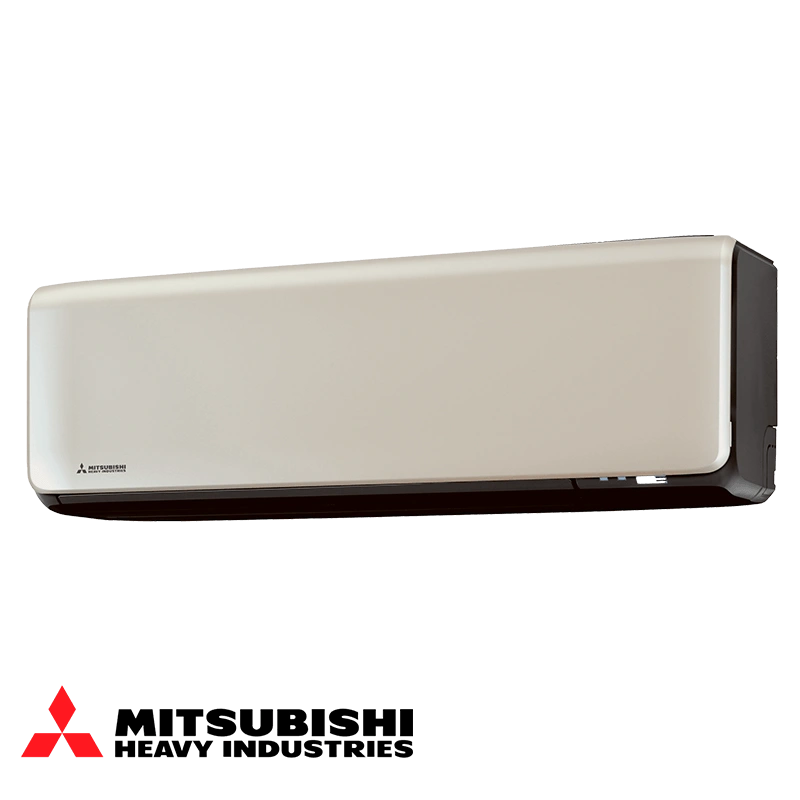

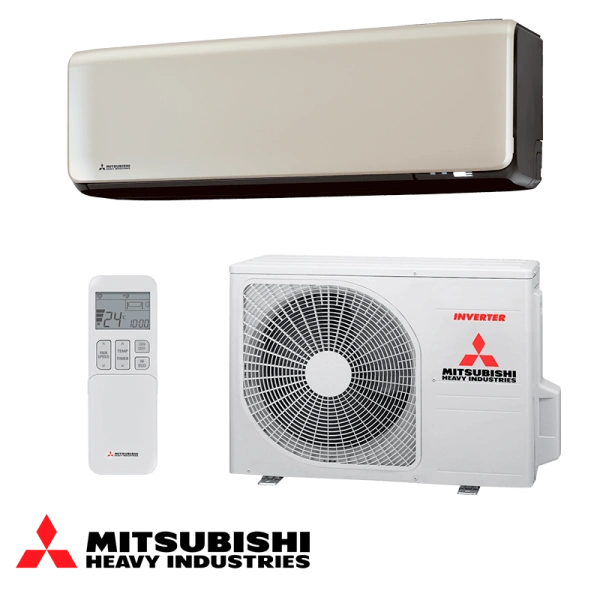

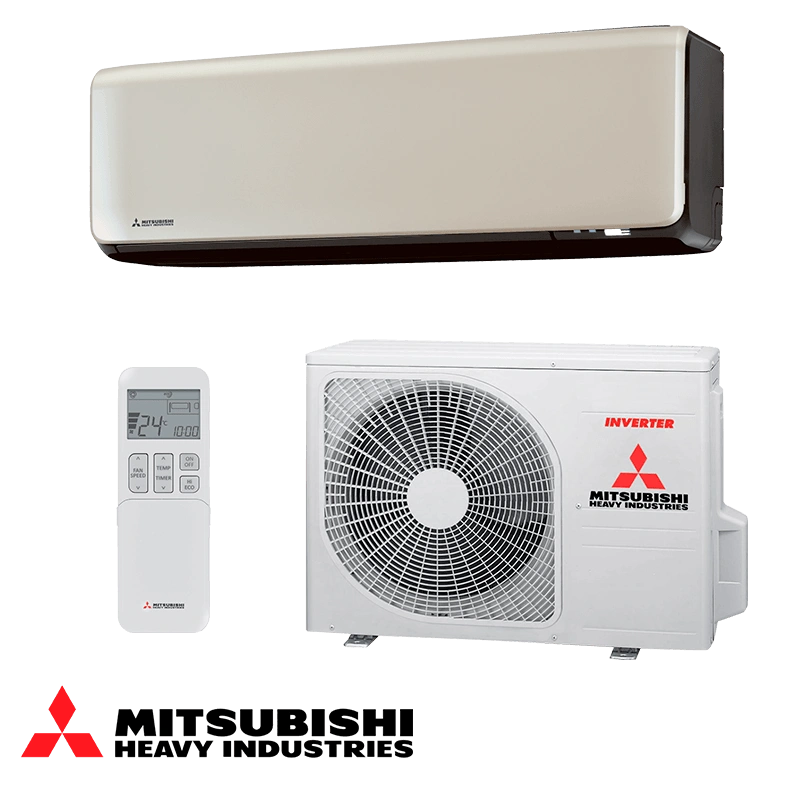

Inverter Air conditioner Mitsubishi Heavy Industries SRK 20 ZT-WFT + SRC 20 ZT-W - titanium

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  0.9 / 2.0 / 2.9 kW

• Heating capacity (Min./Nom./Max):

  0.9 / 2.7 / 4.5 kW

• Consumption power - cooling (Min./Nom./Max):

  - / 0.42 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 0.53 / - kW

• Capacity (BTU):

  7000 BTU

• Nominal efficiency EER cooling:

  4.76

• Seasonal efficiency SEER cooling:

  9.5

• COP:

  5.09

• SCOP:

  5.1

• Annual energy consumption (Cooling/Heating):

  74 / 714 kWh

• Energy label (Cooling / Heating) - Average climate:

  A+++ / A+++

• Operation Range (Cooling):

  -15 ~ 50 °C

• Operation Range (Heating):

  -20 ~ 24 °C

• Suitable for rooms up to:

  17 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  290 x 870 x 230 H x W x L (mm)

• Weight:

  10.5 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  35 / 25 / 22 / 19 dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  34 / 29 / 23 / 19 dB (A)

• Outdoor unit
• Dimensions:

  540 x 780 x 290 H x W x L (mm)

• Weight:

  33 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 42 / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 43 / - / - dB (A)
