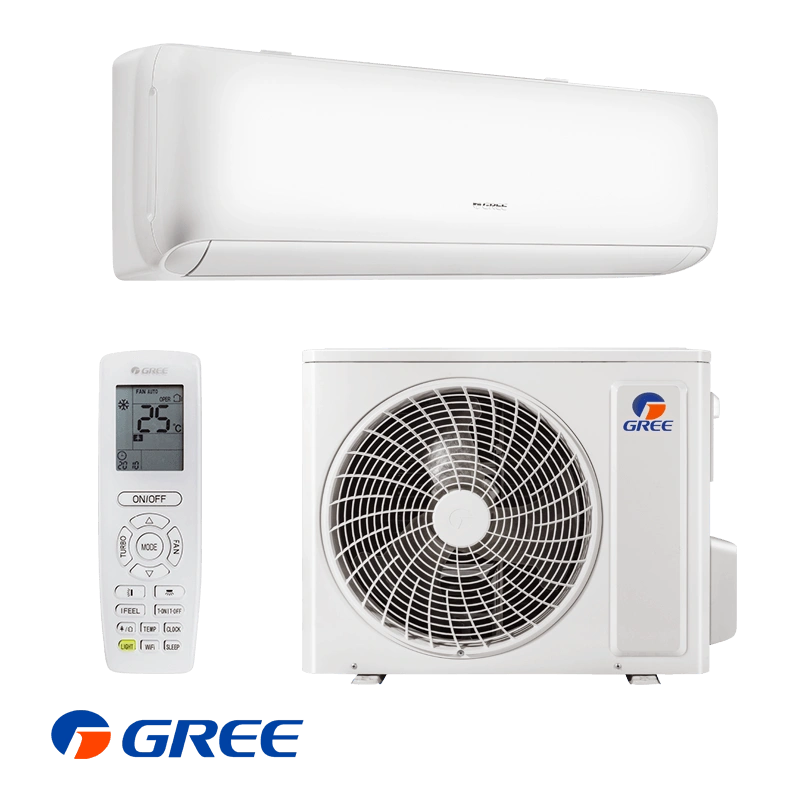

Inverter Air conditioner Gree Charmo GWH09ATCXB-K5DNA1B

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  0.70 / 2.65 / 3.00 kW

• Heating capacity (Min./Nom./Max):

  0.70 / 2.95 / 3.50 kW

• Consumption power - cooling (Min./Nom./Max):

  - / 0.66 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 0.67 / - kW

• Capacity (BTU):

  9000 BTU

• Seasonal efficiency SEER cooling:

  8.4

• SCOP:

  4.8

• Energy label (Cooling / Heating) - Average climate:

  A++ / A++

• Operation Range (Cooling):

  -15 ~ 50 °C

• Operation Range (Heating):

  -25 ~ 30 °C

• Suitable for rooms up to:

  19 square meters

• Warranty:

  24 months

• Refrigerant:

  R290

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  275 x 835 x 200 H x W x L (mm)

• Weight:

  8.5 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  45 / 36 / 32 / 26 dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  45 / 36 / 32 / 26 dB (A)

• Outdoor unit
• Dimensions:

  555 x 732 x 330 H x W x L (mm)

• Weight:

  26.5 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 12.7 mm (1/4" / 1/2") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  53 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  53 / - / - / - dB (A)

• Shipping package - GREE CHARMO GWH09ATCXB-K5DNA1B R290 IND
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  31 x 87 x 25; Weight: 10 kg.;

• Shipping package - GREE CHARMO GWH09ATCXB-K5DNA1B R290 OUT
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  58 x 78 x 36; Weight: 30 kg.;
