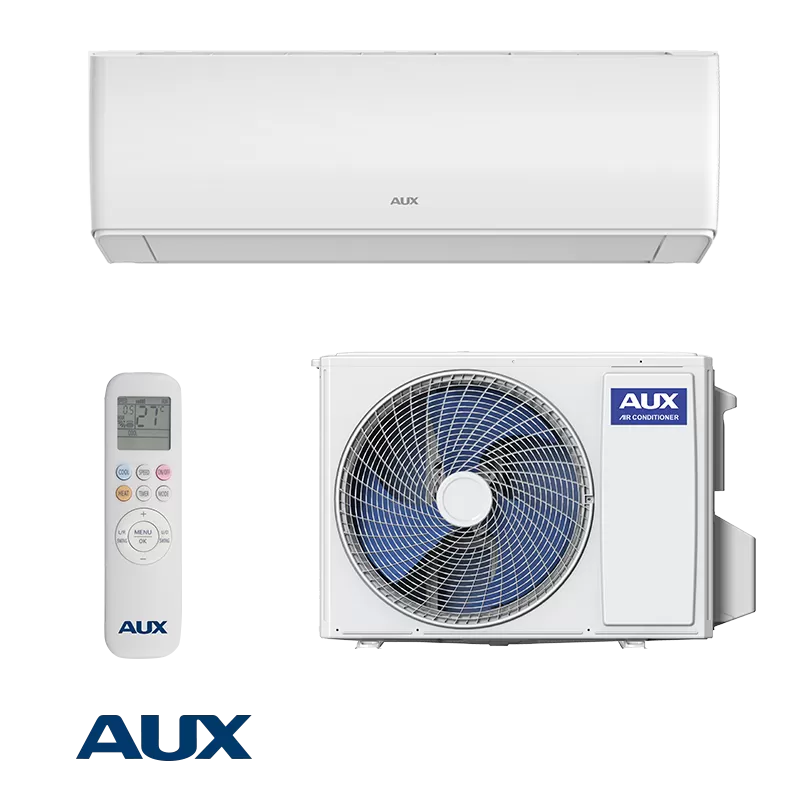

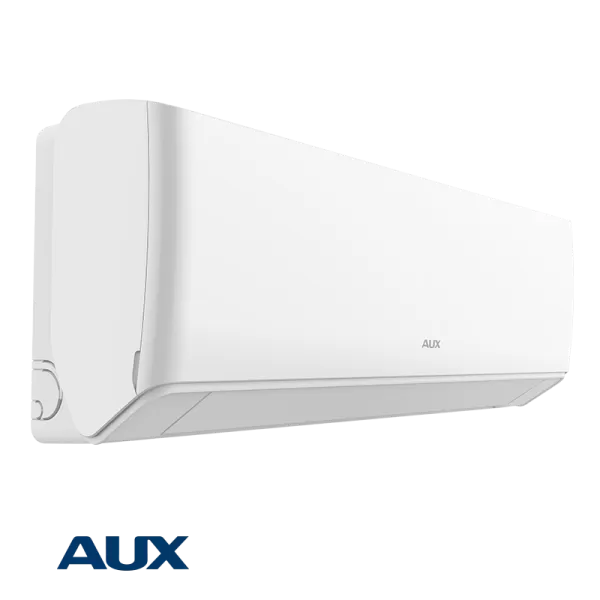

Inverter Air conditioner AUX Halo ASW-H09B6B4/HAR3DI-D0

  • Code: 2510017
  • In stock
  • Weight: 38.00 kg
  • 1 2 3 4 5 (2 comments)

Inverter air conditioner AUX Halo ASW-H09B6B4/HAR3DI-D0 is the solution for the heating and cooling of your home. The highest possible energy efficiency (A+++) in cooling mode and the stylish design are just two of many other advantages that are hidden in this machine. The model is suitable for rooms up to 19 sq.m. with warranty period of 24 months.

600.00

Documents

User documentation
  • Energy label for AUX Halo ASW-H09B6B4/HAR3DI-D0_bg Download
  • User and installation manual_bg Download
  • WIFI manual_bg Download
  • User manual for remote control for AUX_bg Download
  • Declaration of conformity for AUX Halo ASW-H09B6B4/HAR3DI-D0_bg Download
Service documentation
  • Aux error codes_Сплит Download
  • AUX error codes-Професионални Download
  • AUX error codes-Термопомпи Download

Comments

  • 1 2 3 4 5
    I am extremely satisfied with the model, I've had it for over a year
    Translated by Google (view original)
  • 1 2 3 4 5
    Uniquely quiet, economical, and impressive features! A reasonable investment!
    Translated by Google (view original)
  1. Add comment
  2. 1 2 3 4 5

Technical information

  • Basic
  • Wi-Fi:

    Yes

  • Cooling capacity (Min./Nom./Max):

    0.65 / 2.7 / 4.0 kW

  • Heating capacity (Min./Nom./Max):

    0.93 / 3.2 / 4.09 kW

  • Consumption power - cooling (Min./Nom./Max):

    0.13 / 0.62 / 1.2 kW

  • Consumption power - heating (Min./Nom./Max):

    0.23 / 0.77 / 1.2 kW

  • Capacity (BTU):

    9000 BTU

  • Seasonal efficiency SEER cooling:

    8.5

  • SCOP:

    4.6

  • Annual energy consumption (Cooling/Heating):

    111 / 698 kWh

  • Energy label (Cooling / Heating) - Average climate:

    A+++ / A++

  • Operation Range (Cooling):

    -15 ~ 46 °C

  • Operation Range (Heating):

    -15 ~ 30 °C

  • Suitable for rooms up to:

    20 square meters

  • Warranty:

    36 months

  • Refrigerant:

    R-32

  • Power supply (Phase/Frequency/Voltage):

    1~/50/220-240

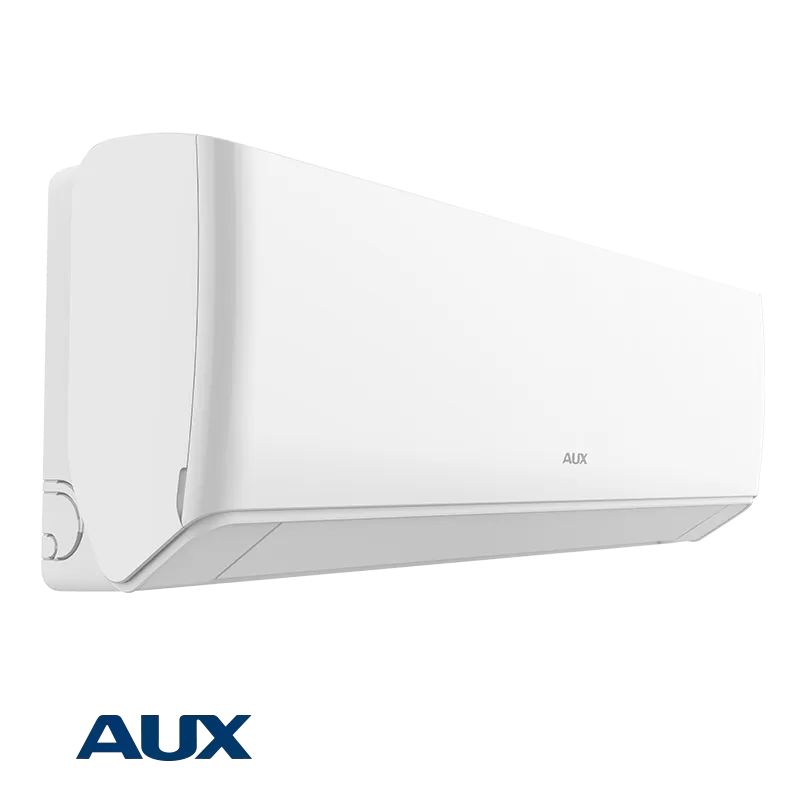

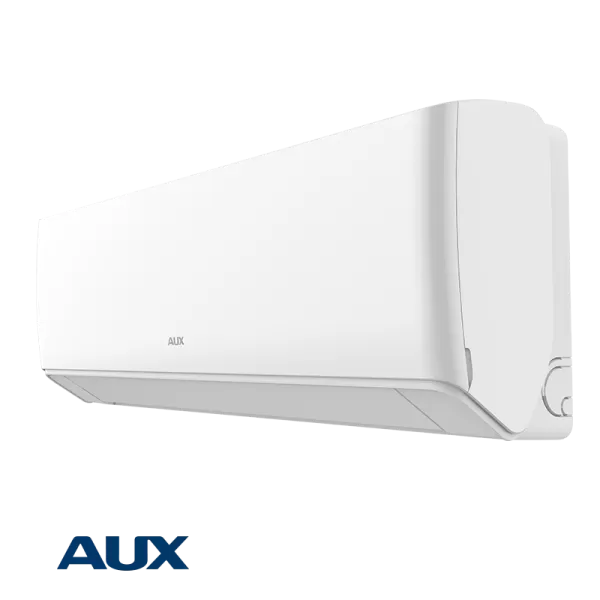

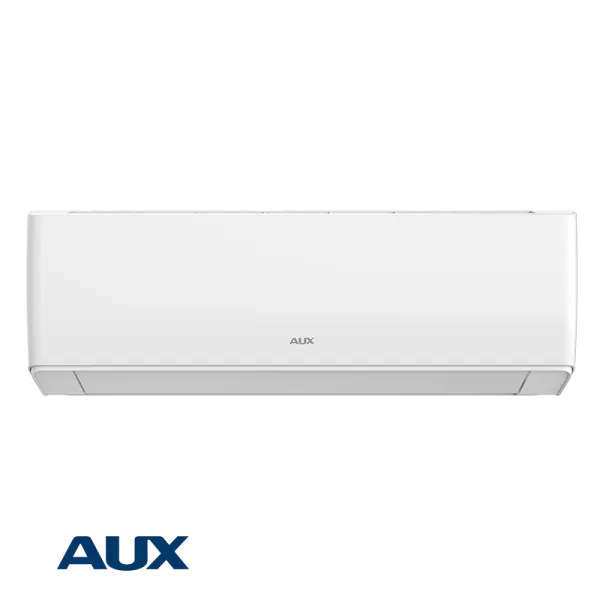

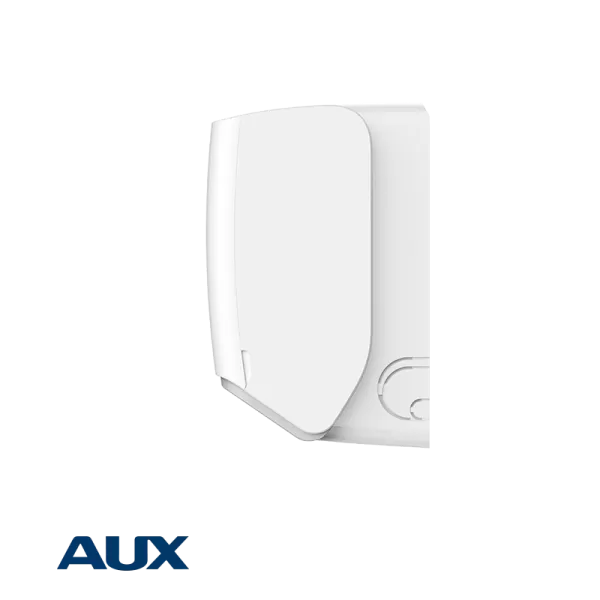

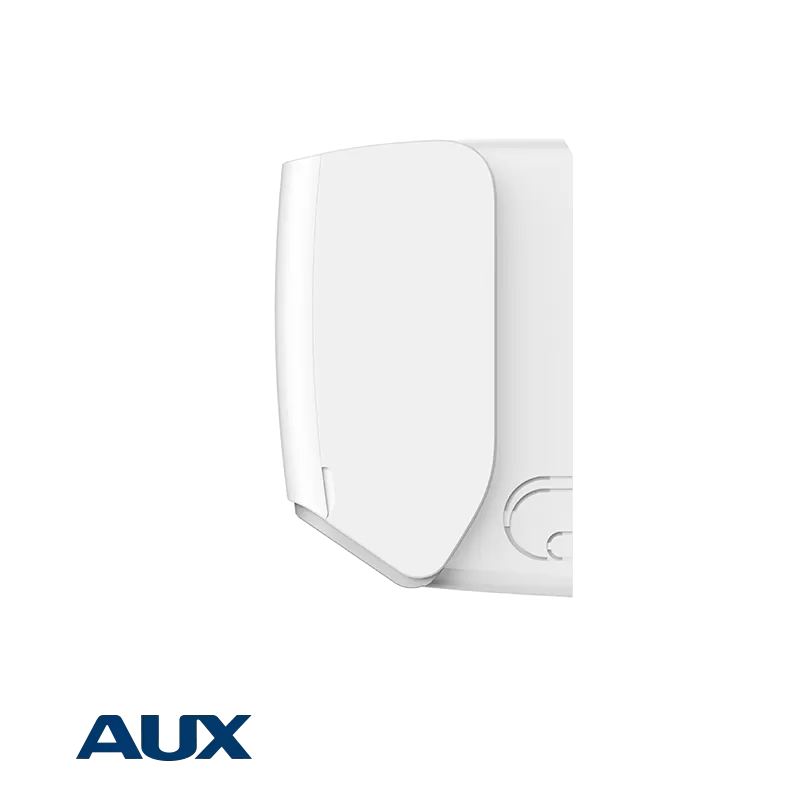

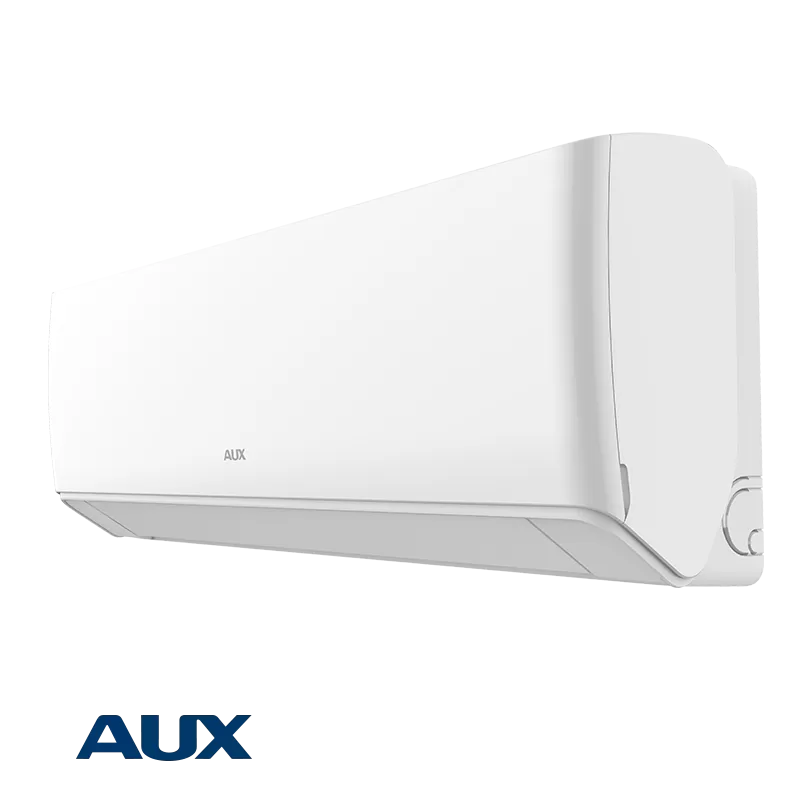

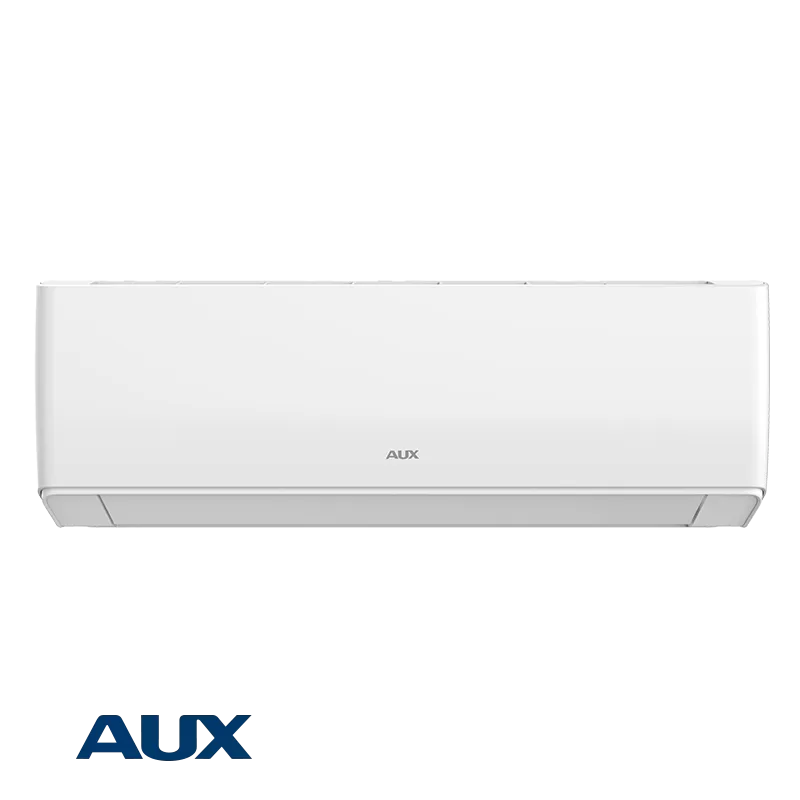

  • Indoor unit
  • Dimensions:

    294 x 881 x 194 H x W x L (mm)

  • Weight:

    9.5 kg

  • Sound Pressure - cooling (High/Nom./Low/Silent):

    43 / 34 / 30 / 27 dB (A)

  • Sound Pressure - heating (High/Nom./Low/Silent):

    43 / 34 / 30 / 27 dB (A)

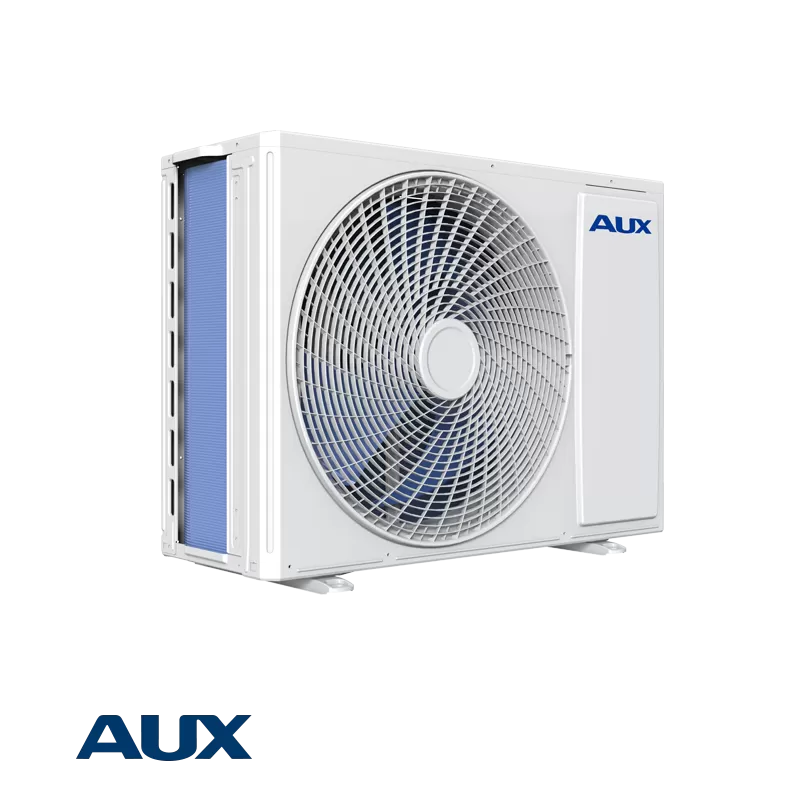

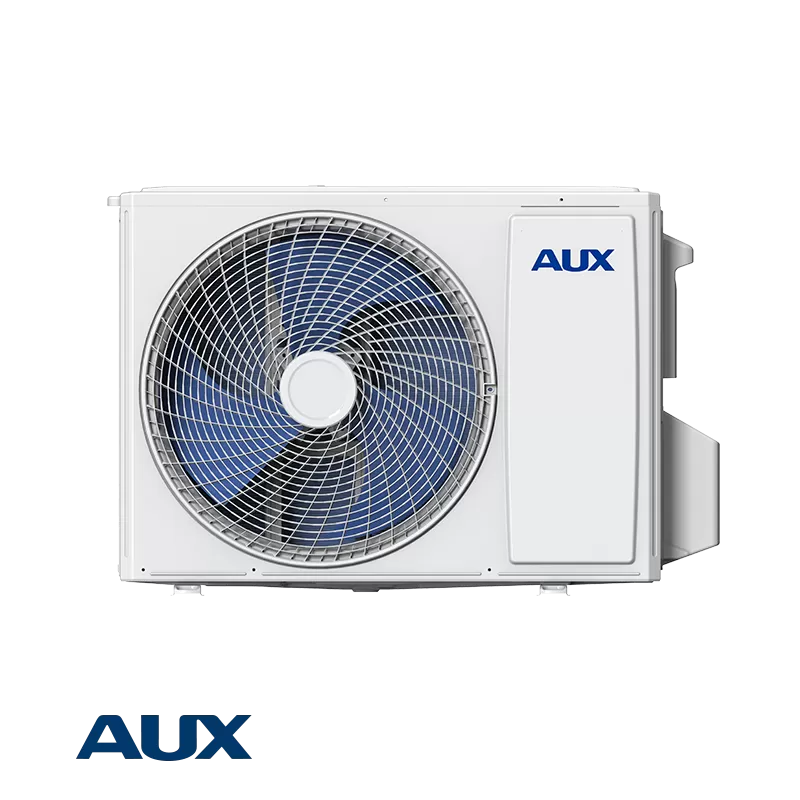

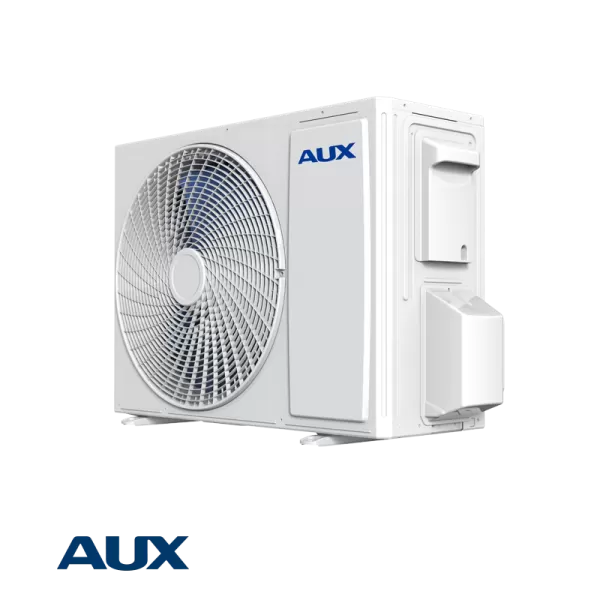

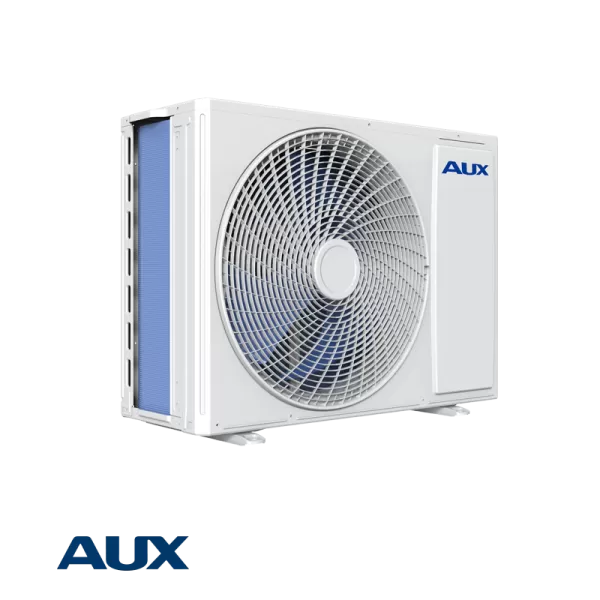

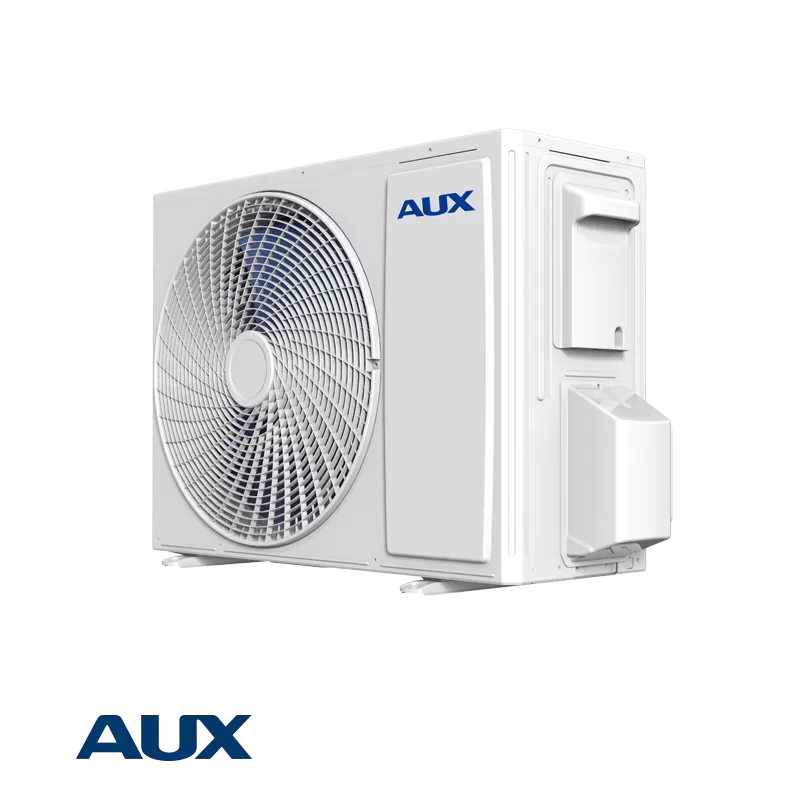

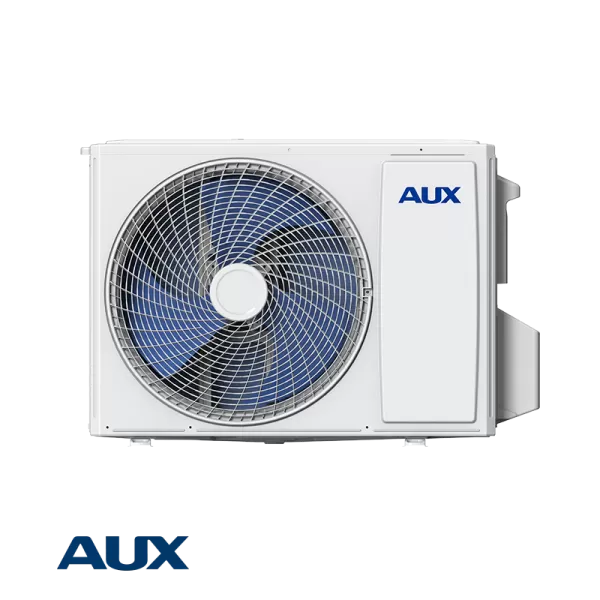

  • Outdoor unit
  • Dimensions:

    555 x 785 x 300 H x W x L (mm)

  • Weight:

    26 kg

  • Refrigerant piping - Liquid / Gas:

    6.35 / 9.52 mm (1/4" / 3/8") mm / inch

  • Sound Pressure - cooling (High/Nom./Low/Silent):

    48 / - / - / - dB (A)

  • Sound Pressure - heating (High/Nom./Low/Silent):

    48 / - / - / - dB (A)

  • Shipping package - AUX ASW-H09B7A4/HAR3DI-D0 - INDOOR
  • Packages quantity:

    1 pc.

  • Package dimensions (HxWxD cm):

    30 x 55.5 x 88.1; Weight: 10 kg.;

  • Shipping package - AUX AS-H09B7A4/HAR3DI-D0 - OUTDOOR
  • Packages quantity:

    1 pc.

  • Package dimensions (HxWxD cm):

    61.5 x 37.2 x 96.5; Weight: 28 kg.;

Details

Inverter type air conditioners AUX Halo

Upgrade your home with AUX! The air conditioners of the Halo series come with high energy efficiency and stylish design. Thanks to the Wi-Fi control and even distribution of the air flow they care for your comfort on a seasonal basis, while the air cleaning system, which uses 3 filters, helps create a healthier environment.


Highest energy class of AUX

The air conditioners of the Halo series have the highest energy class А+++ when cooling and А++ class when heating. In addition to caring for the environment, the ASW-H09B6B4/HAR3DI-D0 air conditioner will help lower your electricity bills.


3 filters combination

The high energy efficiency shall improve your finances, and the clean air – your health. The AUX air conditioners of the Halo series are fitted with 3 filters to clean the air in the room to the best possible way, keeping it fresh and healthy.


Vacation mode – maintaining 8 ºС

Enjoy your unforgettable winter vacation, with no worry about your home. While operating in this mode the air conditioner maintains 8 ºС minimum temperature, not allowing your home to over cool, which in its turn will save on the energy and resources needed to reheating it when you return home from vacation.


Wi-Fi control

For even better convenience the AUX air conditioners of the Halo series can be controlled remotely using the Wi-Fi controller, which is included in the package. The only thing you need to do in order to activate it and use it from your smartphone is follow the instructions.


4D air flow

To ensure highest level of comfort and homogeneous temperature in every corner of the room, the AUX air conditioners of the Halo series have the 4D air flow function, which allows 4 directional control of the air flow – downward upward forward and sideward.




Sleep mode

By activating this mode, the air conditioner shall stop operating for 10 hours, afterwards it will resume operation in the previous mode.

Self-cleaning

The air conditioner shall automatically clean any dust from the evaporator and dry it out, thus improving its efficiency.

Autorestart

In case of power failure the air conditioner saves the current settings and resumes operation at the same settings when power is restored.

Self-diagnostics

In case of function outside normal operating parameters or defect in a system component, an error code will be displayed to guide the service technicians for easier and faster troubleshooting.

Dual installation

The air conditioner design allows for the pipes to be connected equally well both at the left side and the right side of the indoor unit.

Vitamin C filter

Softens the skin and reduces stress, for therapy purposes.



Active carbon filter

Removes unpleasant odors and other air pollutants by neutralizing them through absorption.
